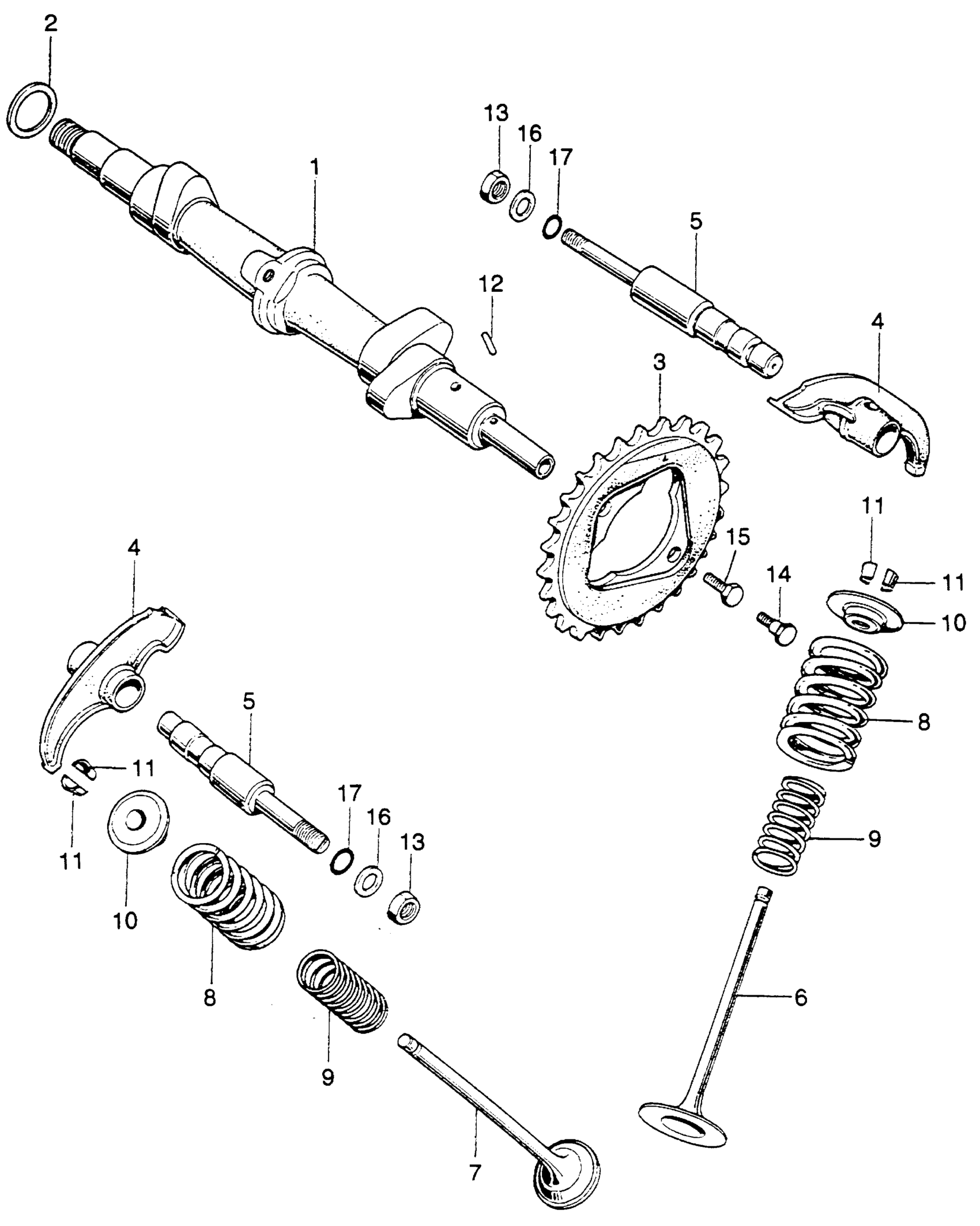

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

CAMSHAFT (NOT AVAILABLE) | Use up to Engine SN 3021782 This part replaces 14101-312-030.

14101-312-040

Unavailable

1

CAMSHAFT (NOT AVAILABLE)

14101-312-040

Unavailable

2

SPACER, CAMSHAFT (0.1MM) (NOT AVAILABLE)

14294-283-000

Unavailable

2

SPACER, CAMSHAFT (0.2MM) (NOT AVAILABLE)

14295-283-000

Unavailable

3

SPROCKET, CAM (34T)

14321-312-010

Unavailable

4

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-312-010

Unavailable

5

PIN, VALVE ROCKER ARM

14461-286-010

$40.89

6

VALVE, IN. (NOT AVAILABLE)

14711-286-030

Unavailable

7

VALVE, EX. This part replaces 14721-286-020.

14721-286-305

$86.67

7

VALVE, EX.

14721-286-305

$86.67

8

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-286-000

Unavailable

9

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-286-020

Unavailable

10

RETAINER, VALVE SPRING (NOT AVAILABLE) This part replaces 14771-286-020.

14771-369-010

Unavailable

10

RETAINER, VALVE SPRING (NOT AVAILABLE) This part replaces 14771-369-000.

14771-369-010

Unavailable

10

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-369-010

Unavailable

11

COTTER, VALVE (NOT AVAILABLE)

14781-286-020

Unavailable

12

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

13

NUT A, VALVE ROCKER ARM LOCK (NOT AVAILABLE)

90011-286-000

Unavailable

14

BOLT, KNOCK (6X14) (NOT AVAILABLE)

90081-312-000

Unavailable

15

BOLT, HEX. (6X14) (NOT AVAILABLE)

90085-312-000

Unavailable

16

WASHER (8MM) This part replaces 90445-286-000.

90451-KAF-000

Unavailable

16

WASHER (8MM)

90451-KAF-000

Unavailable

17

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

17

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92
