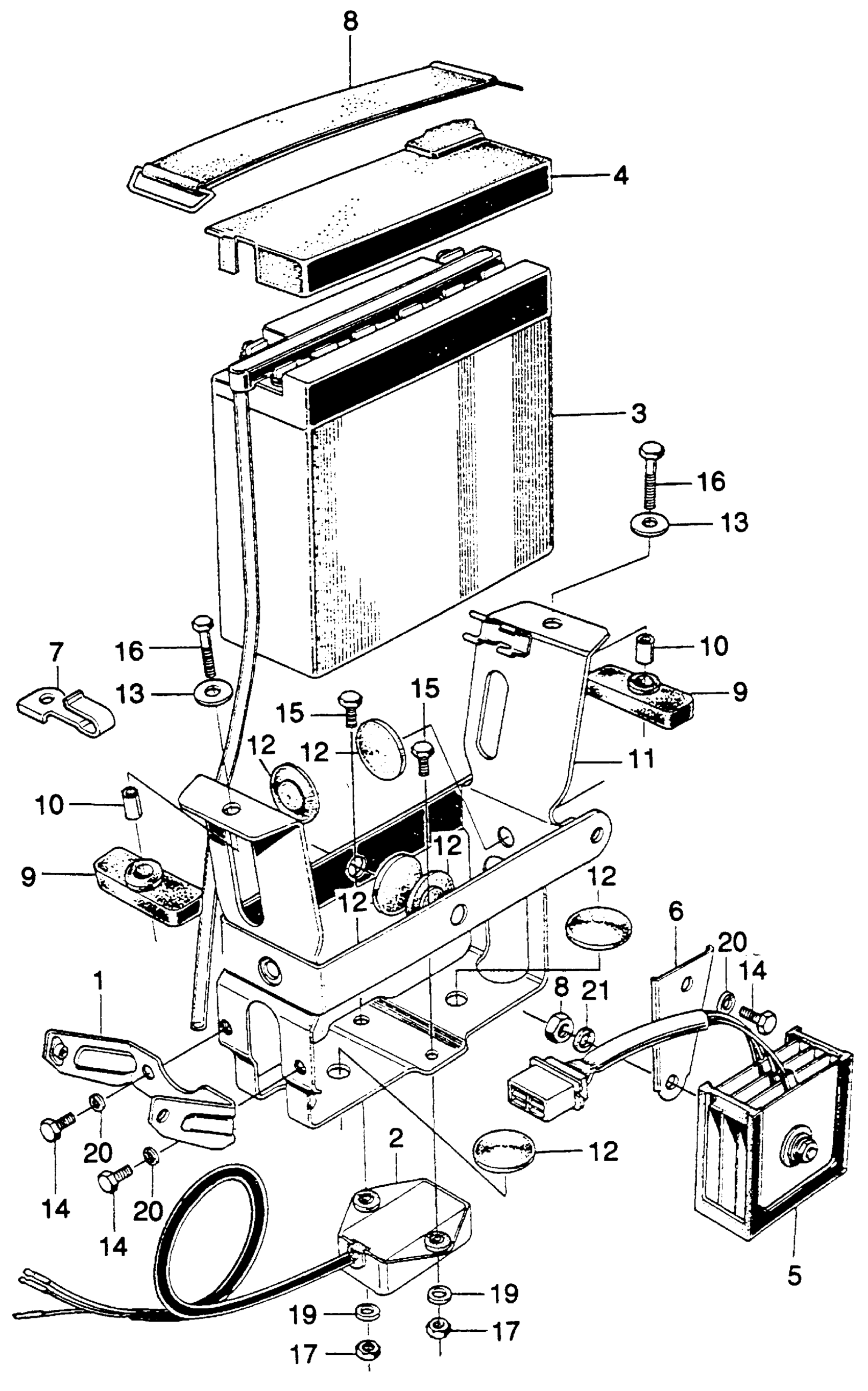

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 BATTERY + SELENIUM Diagram

#

Description
Price

1

STAY, AIR CLEANER SETTING (NOT AVAILABLE)

17242-312-010

Unavailable

2

REGULATOR (NOT AVAILABLE)

31400-292-670

Unavailable

3

BATTERY ASSY. (12N5-4B) This part replaces 31500-273-000.

31500-313-677

Unavailable

3

BATTERY ASSY. (12N5-4B) This part replaces 31500-313-671.

31500-313-677

Unavailable

3

BATTERY ASSY. (12N5-4B)

31500-313-677

Unavailable

4

COVER, BATTERY (NOT AVAILABLE)

31532-313-000

Unavailable

5

RECTIFIER (NOT AVAILABLE) This part replaces 31700-235-000.

31700-235-305

Unavailable

5

RECTIFIER (NOT AVAILABLE)

31700-235-305

Unavailable

6

STAY, SELENIUM RECTIFIER (NOT AVAILABLE)

31705-312-010

Unavailable

7

HOLDER, HELMET (NOT AVAILABLE)

50233-340-000

Unavailable

8

BAND C, BATTERY This part replaces 95012-14000.

95012-14001

Unavailable

8

BAND C, BATTERY (NOT AVAILABLE)

95012-14001

Unavailable

9

RUBBER, BATTERY BOX (NOT AVAILABLE)

50323-313-000

Unavailable

10

COLLAR, BATTERY BOX

50324-300-000

Unavailable

11

BOX, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50325-313-020B

Unavailable

12

RUBBER C, BATTERY DISTANCE

83618-307-000

$2.85

13

WASHER, PLAIN (6MM) | Use up to Frame SN 3021520 This part replaces 90514-700-000.

94103-06800

$1.49

13

WASHER, PLAIN (6MM) | Use up to Frame SN 3021520

94103-06800

$1.49

13

WASHER (6.5X20) | Use from Frame SN 3021521

90545-292-000

$1.77

14

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

16

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (8MM)

94002-08000-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49
