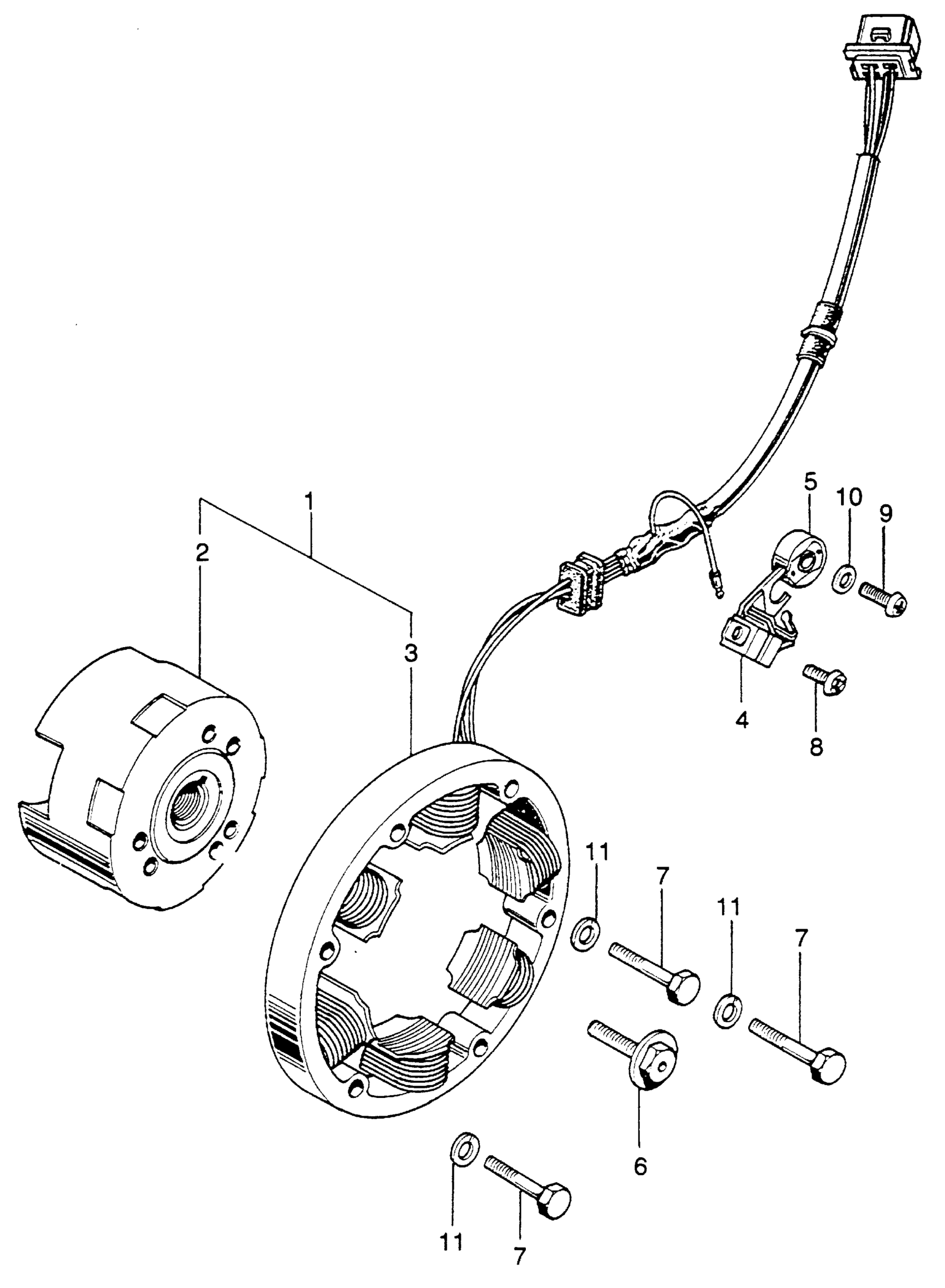

Honda SL350K2A MOTORCYCLE, JPN, VIN# SL350-3000001 ALTERNATOR + NUETRAL SWITCH Diagram

#

Description

Price

1

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-340-004

Unavailable

2

ROTOR (DENSO) (NOT AVAILABLE) This part replaces 31101-312-004.

31101-312-690

Unavailable

2

ROTOR (DENSO) (NOT AVAILABLE)

31101-312-690

Unavailable

3

STATOR (DENSO) (NOT AVAILABLE)

31102-340-004

Unavailable

4

STATOR, SWITCH (NOT AVAILABLE) | Use up to Engine SN 3022902 This part replaces 35752-286-000.

35752-286-003

Unavailable

4

STATOR, SWITCH (NOT AVAILABLE) | Use up to Engine SN 3022902

35752-286-003

Unavailable

5

ROTOR, NEUTRAL SWITCH

35753-286-003

Unavailable

6

BOLT, ROTOR SETTING (NOT AVAILABLE)

90014-286-000

Unavailable

7

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

Unavailable

7

BOLT, HEX. (6X28)

92101-06028-0A

Unavailable

8

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.94

9

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

Unavailable

9

SCREW, PAN (6X20)

93500-06020-0A

Unavailable

10

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

10

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

10

WASHER, PLAIN (6MM)

94101-06800

Unavailable

11

WASHER, SPRING (6MM)

94111-06000

$0.87
