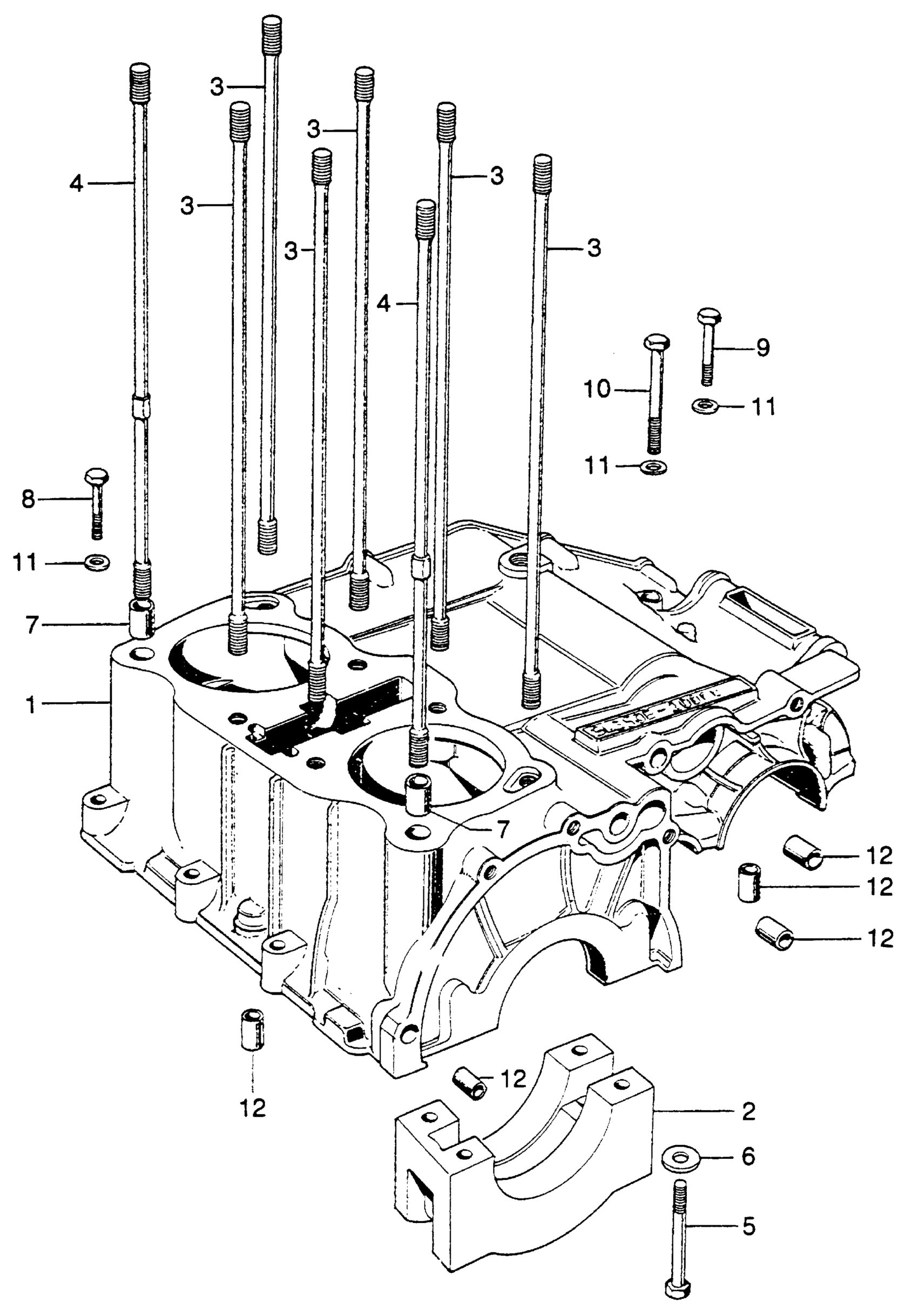

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 UPPER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER) (NOT AVAILABLE) This part replaces 11100-312-030.

11100-312-040

Unavailable

1

CRANKCASE (UPPER) (NOT AVAILABLE)

11100-312-040

Unavailable

2

HOLDER, CRANK CENTER BEARING (NOT AVAILABLE)

11202-286-000

Unavailable

3

BOLT, CYLINDER STUD (NOT AVAILABLE)

90033-286-020

Unavailable

4

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90034-286-020

Unavailable

5

BOLT, HEX. (8X71) (NOT AVAILABLE)

90083-292-000

Unavailable

6

WASHER, THRUST (14MM)

90485-035-000

$2.92

7

PIN, CYLINDER KNOCK

91356-286-000

Unavailable

8

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

8

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

8

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

9

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

9

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

9

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

10

BOLT, HEX. (6X70) This part replaces 92000-06070.

92101-06070-0A

$2.34

10

BOLT, HEX. (6X70) This part replaces 92000-06070-0A.

92101-06070-0A

$2.34

10

BOLT, HEX. (6X70)

92101-06070-0A

$2.34

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49

12

PIN A, DOWEL (10X14)

94301-10140

$2.28
