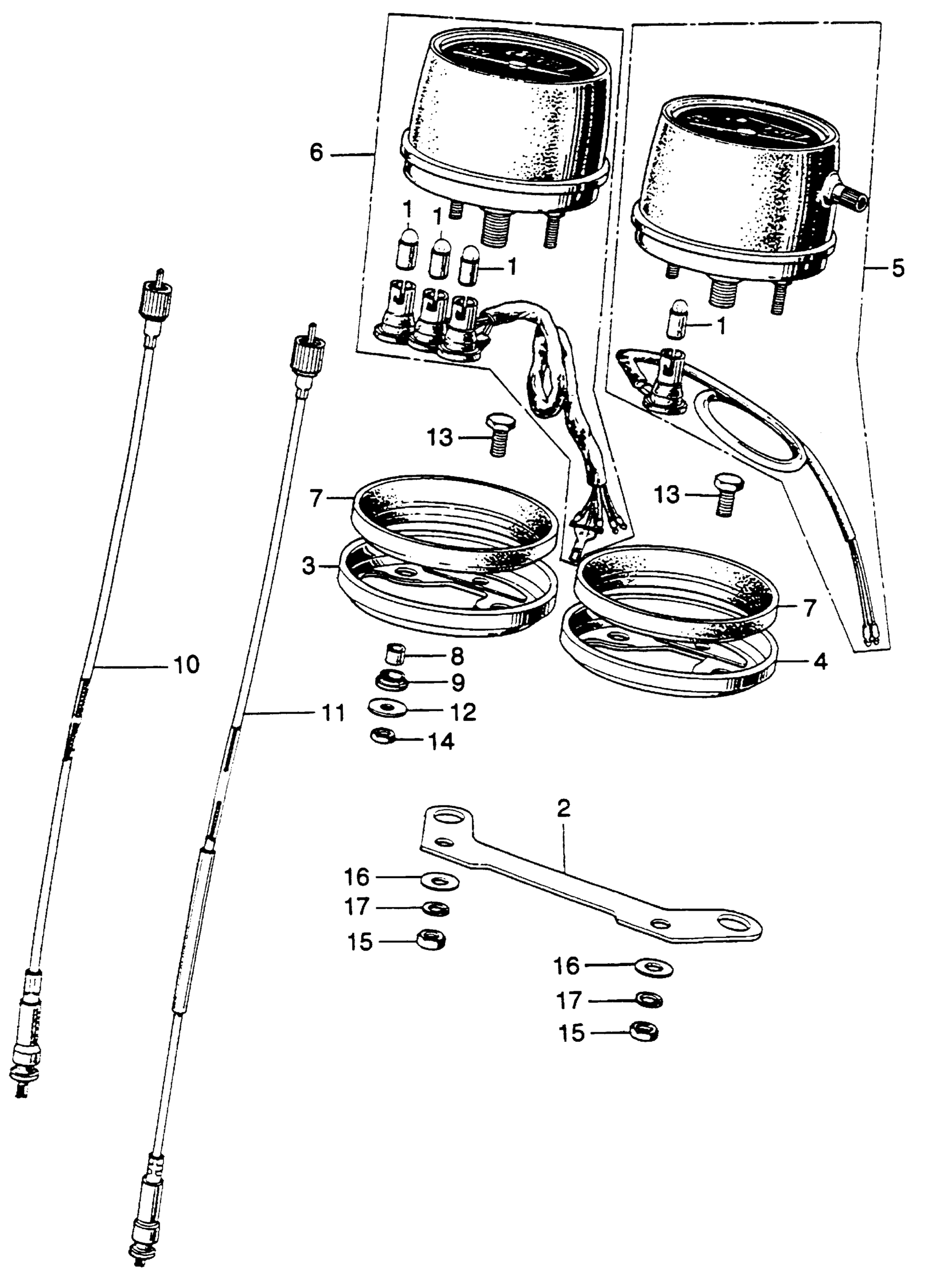

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 SPEEDOMETER + TACHOMETER Diagram

BULB, DASH (12V 3.4W) (STANLEY)

34902-259-000

$2.18

BRACKET, METER (NOT AVAILABLE)

37211-312-000

$23.61

RING, R. METER SET (NOT AVAILABLE)

37212-307-670

Unavailable

RING, L. METER SET (NOT AVAILABLE)

37213-307-670

Unavailable

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37230-312-671

Unavailable

TACHOMETER ASSY. (NOT AVAILABLE)

37240-312-008

Unavailable

CUSHION, METER

37242-307-670

Unavailable

COLLAR, METER SETTING

37243-307-670

$2.44

RUBBER, METER SETTING

37244-307-670

$2.67

CABLE ASSY., TACHOMETER

37260-KB7-010

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-MG1-000.

37260-KB7-010

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-296-000.

37260-KB7-010

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-362-000.

37260-KB7-010

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-438-000.

37260-KB7-010

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-310-000.

44830-425-870

$29.28

CABLE ASSY., SPEEDOMETER This part replaces 44830-340-000.

44830-425-870

$29.28

CABLE ASSY., SPEEDOMETER

44830-425-870

$29.28

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
