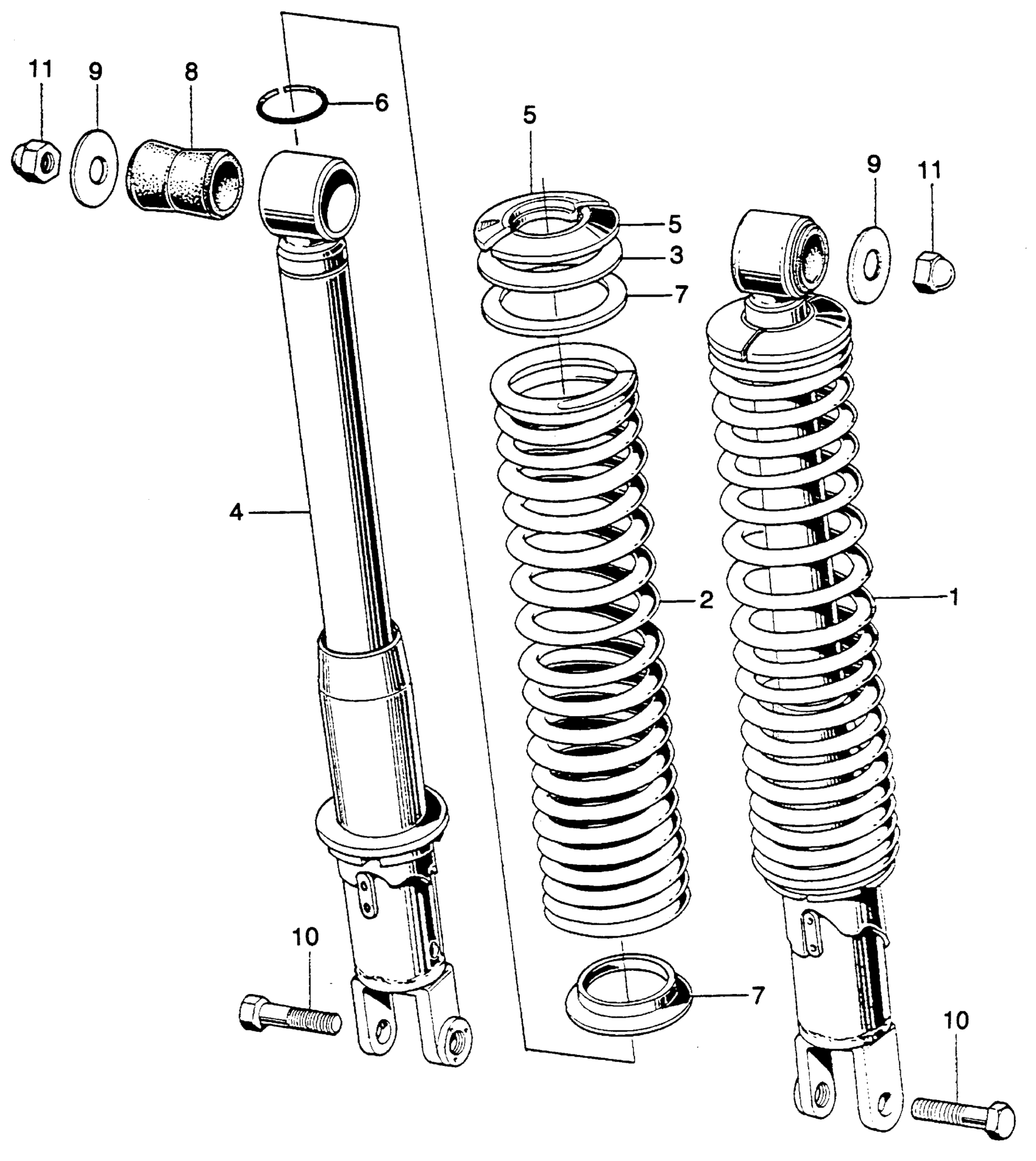

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 SHOCK ABSORBER I Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY. (NOT AVAILABLE) | Use up to Frame SN 2026220

52400-312-003

Unavailable

2

SPRING, SHOCK ABSORBER (NOT AVAILABLE) | Use up to Frame SN 2026220

52401-312-010

Unavailable

3

WASHER, SPRING (NOT AVAILABLE) | Use up to Frame SN 2026220

52409-313-000

Unavailable

4

DAMPER (SHOWA) (NOT AVAILABLE) | Use up to Frame SN 2026220

52410-312-003

Unavailable

5

STOPPER, SHOCK ABSORBER SPRING SEAT (NOT AVAILABLE) | Use up to Frame SN 2026220

52424-074-003

Unavailable

6

STOPPER (NOT AVAILABLE) | Use up to Frame SN 2026220

52446-074-003

Unavailable

7

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE) | Use up to Frame SN 2026220

52459-312-003

Unavailable

8

RUBBER, JOINT | Use up to Frame SN 2026220

52484-292-000

$5.87

9

WASHER, PLAIN (10.3MM) | Use up to Frame SN 2026220

90527-230-000

$1.95

10

BOLT, HEX. (10X32) | Use up to Frame SN 2026220 This part replaces 93000-10032-0B.

93101-10032-0B

$2.92

10

BOLT, HEX. (10X32) | Use up to Frame SN 2026220

93101-10032-0B

$2.92

11

NUT, CAP (10MM) | Use up to Frame SN 2026220 This part replaces 94021-10020.

94021-10020-0S

$2.08

11

NUT, CAP (10MM) | Use up to Frame SN 2026220

94021-10020-0S

$2.08

11

NUT, CAP (10MM) | Use up to Frame SN 2026220 This part replaces 94022-10000.

94021-10020-0S

$2.08

11

NUT, CAP (10MM) | Use up to Frame SN 2026220 This part replaces 94022-10020-0S.

94021-10020-0S

$2.08
