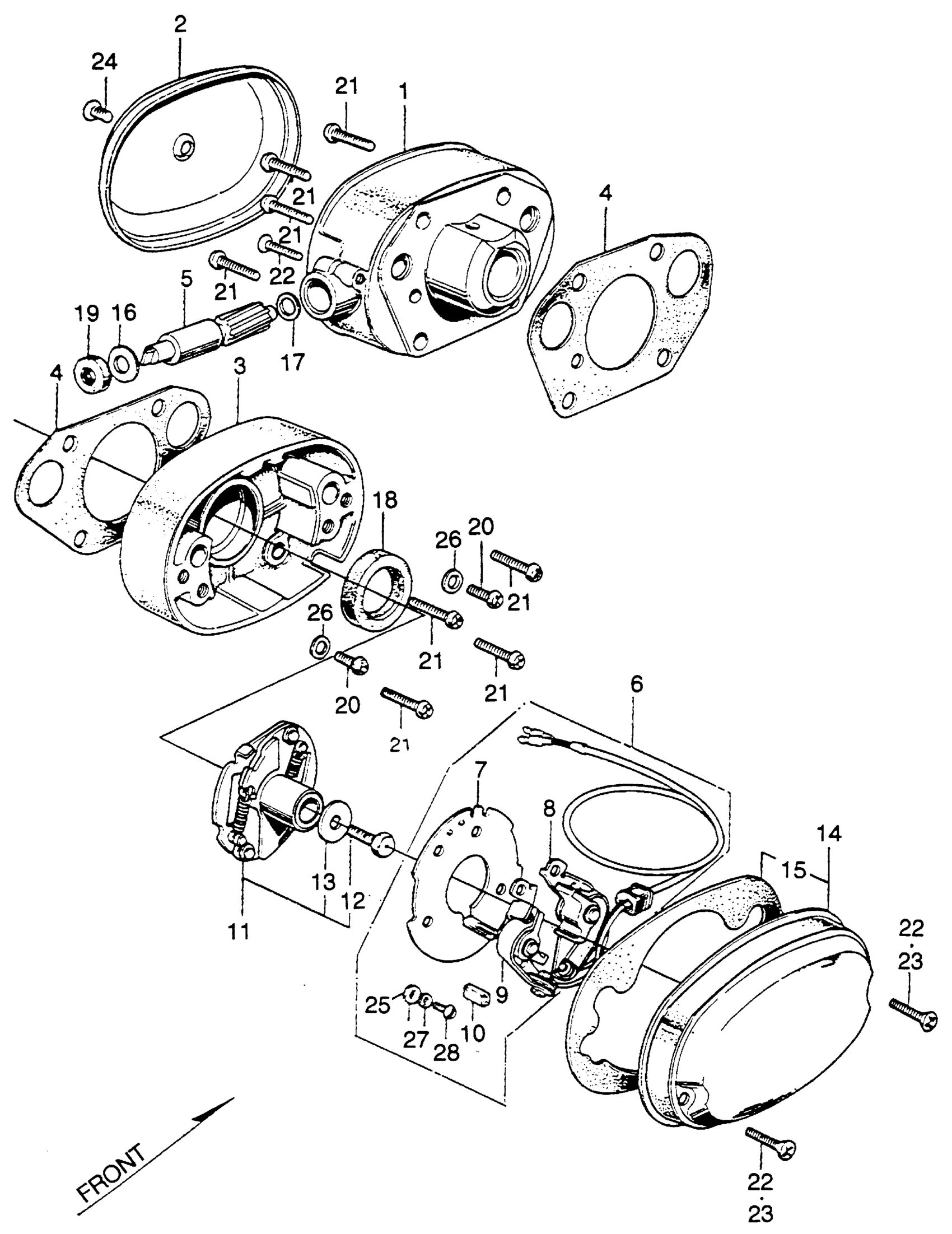

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 R. & L. CYL. HEAD COVER + POINTS Diagram

#

Description
Price

1

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE)

12331-286-080

Unavailable

2

COVER, TACHOMETER (NOT AVAILABLE)

12332-286-000

Unavailable

3

COVER, L. CYLINDER HEAD SIDE (NOT AVAILABLE)

12341-286-060

Unavailable

4

GSKT, CYL HD SD/CVR This part replaces 12392-286-040.

12392-286-306

Unavailable

4

GSKT, CYL HD SD/CVR This part replaces 12392-286-050.

12392-286-306

Unavailable

5

GEAR, TACHOMETER

12431-286-020

Unavailable

6

POINTS ASSY. (DENSO) (NOT AVAILABLE)

30200-286-004

Unavailable

7

PLATE, POINTS BASE (DENSO) (NOT AVAILABLE)

30201-286-004

Unavailable

8

POINTS, R. (DENSO)

30203-286-004

$32.95

9

POINTS, L. (DENSO)

30204-286-004

$33.13

10

FELT, OIL (DENSO) (NOT AVAILABLE)

30205-205-014

Unavailable

11

ADVANCER ASSY., SPARK (DENSO)

30220-312-004

Unavailable

12

BOLT, SPARK ADVANCER SETTING (DENSO) (NOT AVAILABLE)

30225-286-004

Unavailable

13

WASHER, SPARK ADVANCER SETTING (DENSO) (NOT AVAILABLE)

30226-286-014

Unavailable

14

COVER, POINTS (NOT AVAILABLE)

30370-298-000

Unavailable

15

GASKET, POINT COVER This part replaces 30372-286-320.

30372-286-306

Unavailable

16

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

17

WASHER, SPEEDOMETER PINION (NOT AVAILABLE)

90539-011-000

Unavailable

18

OIL SEAL (22X35X5) This part replaces 91202-286-023.

91251-KM1-003

$6.96

18

OIL SEAL (22X35X5) This part replaces 91202-286-025.

91251-KM1-003

$6.96

18

OIL SEAL (22X35X5)

91251-KM1-003

$6.96

19

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

19

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

20

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

20

SCREW, PAN (6X12)

93500-06012-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

21

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

21

SCREW, PAN (6X20)

93500-06020-0A

$1.49

22

SCREW, OVAL (5X20)

93700-05020-0B

$1.49

24

SCREW, OVAL (6X10) This part replaces 93700-06010.

93700-06010-0A

$1.49

24

SCREW, OVAL (6X10)

93700-06010-0A

$1.49

25

WASHER, PLAIN (4MM)

94101-04000

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (4MM)

94111-04000

$1.49

28

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$1.49

28

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

28

SCREW, PAN (4X6)

93500-04006-0A

$1.49

28

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

28

SCREW, PAN (4X6) This part replaces 99500-04005-0A.

93500-04006-0A

$1.49
