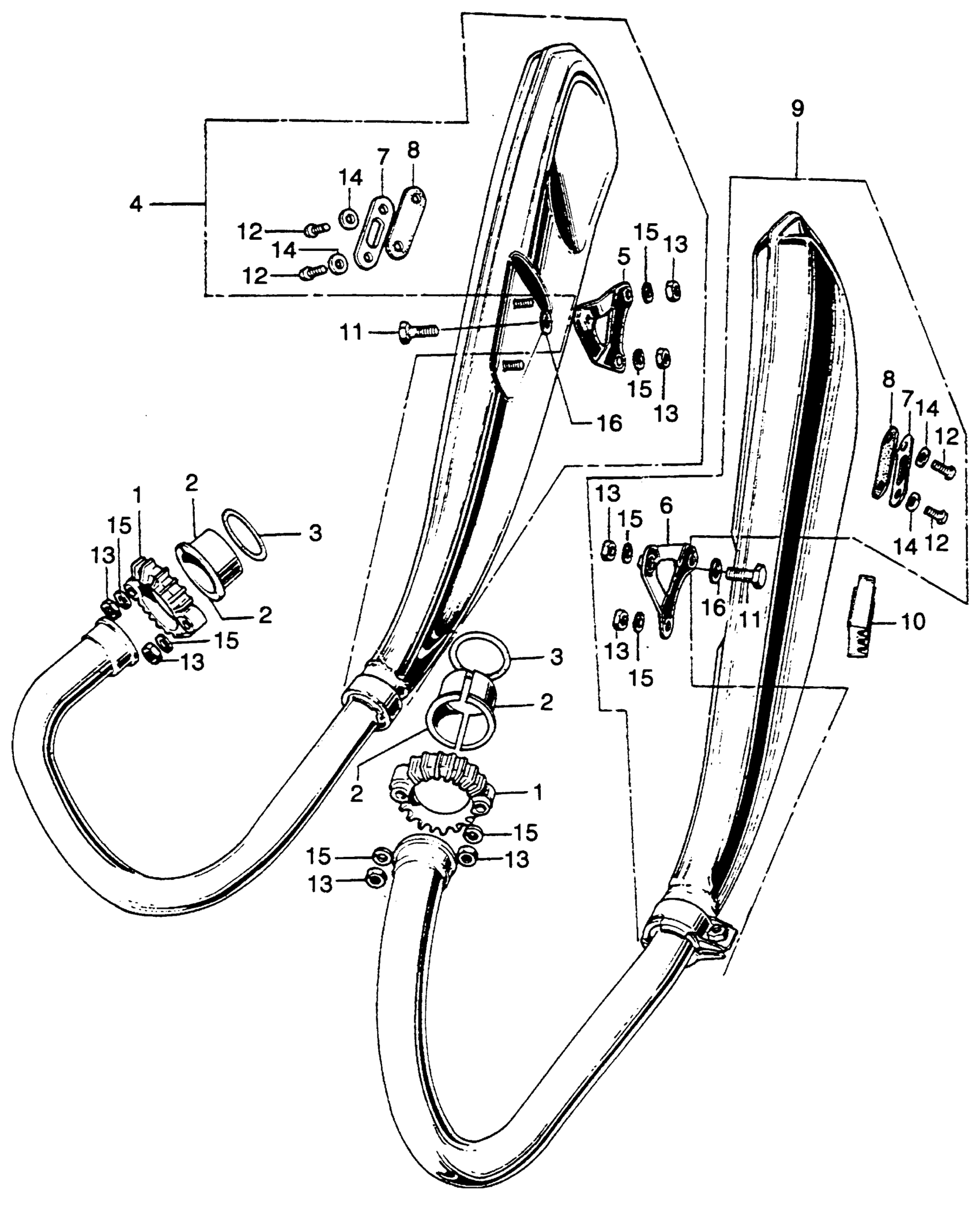

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-312-000

Unavailable

2

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-286-000

Unavailable

3

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$7.19

3

GASKET, EX. PIPE

18291-286-306

$7.19

4

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-312-671.

18300-312-677

Unavailable

4

MUFFLER, R. EX. (NOT AVAILABLE)

18300-312-677

Unavailable

4

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-312-672.

18300-312-677

Unavailable

5

BRACKET, R. MUFFLER (NOT AVAILABLE)

18353-312-000

Unavailable

6

BRACKET, L. MUFFLER (NOT AVAILABLE)

18354-312-000

Unavailable

7

LID, MUFFLER This part replaces 18373-310-000.

18373-446-010

Unavailable

7

LID, MUFFLER This part replaces 18373-446-000.

18373-446-010

Unavailable

7

LID, MUFFLER

18373-446-010

Unavailable

8

GASKET, MUFFLER

18374-KR8-900

Unavailable

8

GASKET, MUFFLER This part replaces 18374-310-000.

18374-KR8-900

Unavailable

9

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-312-672.

18400-312-677

Unavailable

9

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-312-673.

18400-312-677

Unavailable

9

MUFFLER, L. EX. (NOT AVAILABLE)

18400-312-677

Unavailable

10

RUBBER D, STAND STOPPER This part replaces 50524-310-000.

95011-64000

$3.33

10

RUBBER D, STAND STOPPER

95011-64000

$3.33

11

BOLT, HEX. (10X28) This part replaces 92000-10028-0A.

92101-10028-0A

Unavailable

11

BOLT, HEX. (10X28) This part replaces 92026-10028-0A.

92101-10028-0A

Unavailable

11

BOLT, HEX. (10X28)

92101-10028-0A

Unavailable

12

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

12

SCREW, PAN (6X12)

93500-06012-0A

$1.49

12

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

13

NUT, HEX. (8MM)

94001-08000-0S

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, SPRING (8MM)

94111-08000

$1.49

16

WASHER, SPRING (10MM)

94111-10000

$1.49
