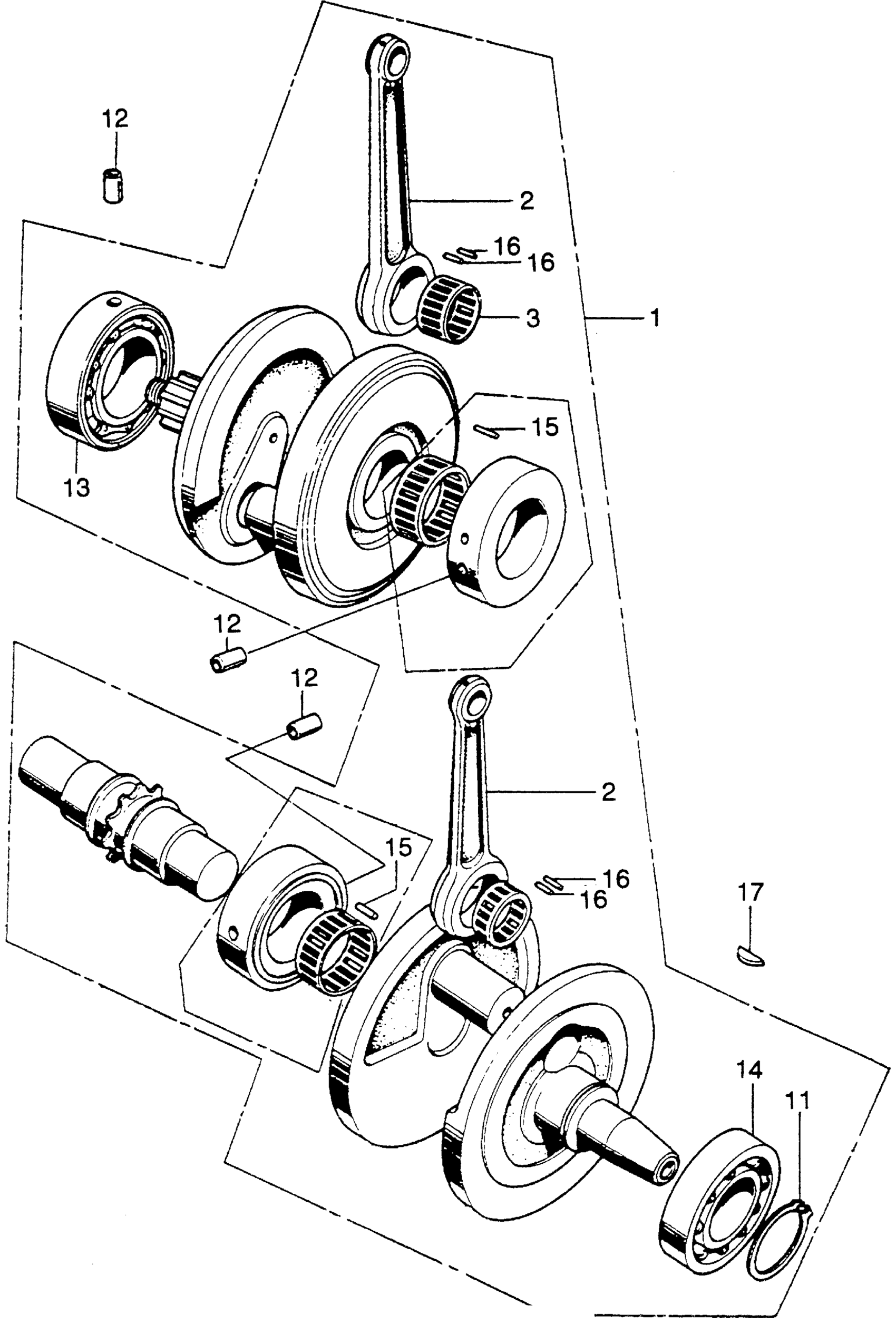

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 CRANKSHAFT Diagram

RETAINER, L. MAIN BEARING (NOT AVAILABLE)

13501-287-300

$30.82

WASHER (30MM) (NOT AVAILABLE)

90454-287-000

Unavailable

CRANKSHAFT (NOT AVAILABLE)

13000-312-020

Unavailable

ROD, CONNECTING (NOT AVAILABLE)

13201-287-310

Unavailable

CIRCLIP (OUTER) (30MM) (NOT AVAILABLE)

90601-701-000

Unavailable

PIN, DOWEL (7X12) (NOT AVAILABLE)

90708-286-000

Unavailable

BEARING, BALL (6306) (NOT AVAILABLE)

91001-286-003

Unavailable

BEARING, SPECIAL BALL (6206) (NOT AVAILABLE) This part replaces 91001-312-004.

91001-312-014

Unavailable

BEARING, SPECIAL BALL (6206) (NOT AVAILABLE)

91001-312-014

Unavailable

ROLLER (4X10)

91004-286-000

Unavailable

ROLLER (3X12.5)

91102-286-000

Unavailable

KEY, WOODRUFF (25X14)

94401-25140

$1.75
