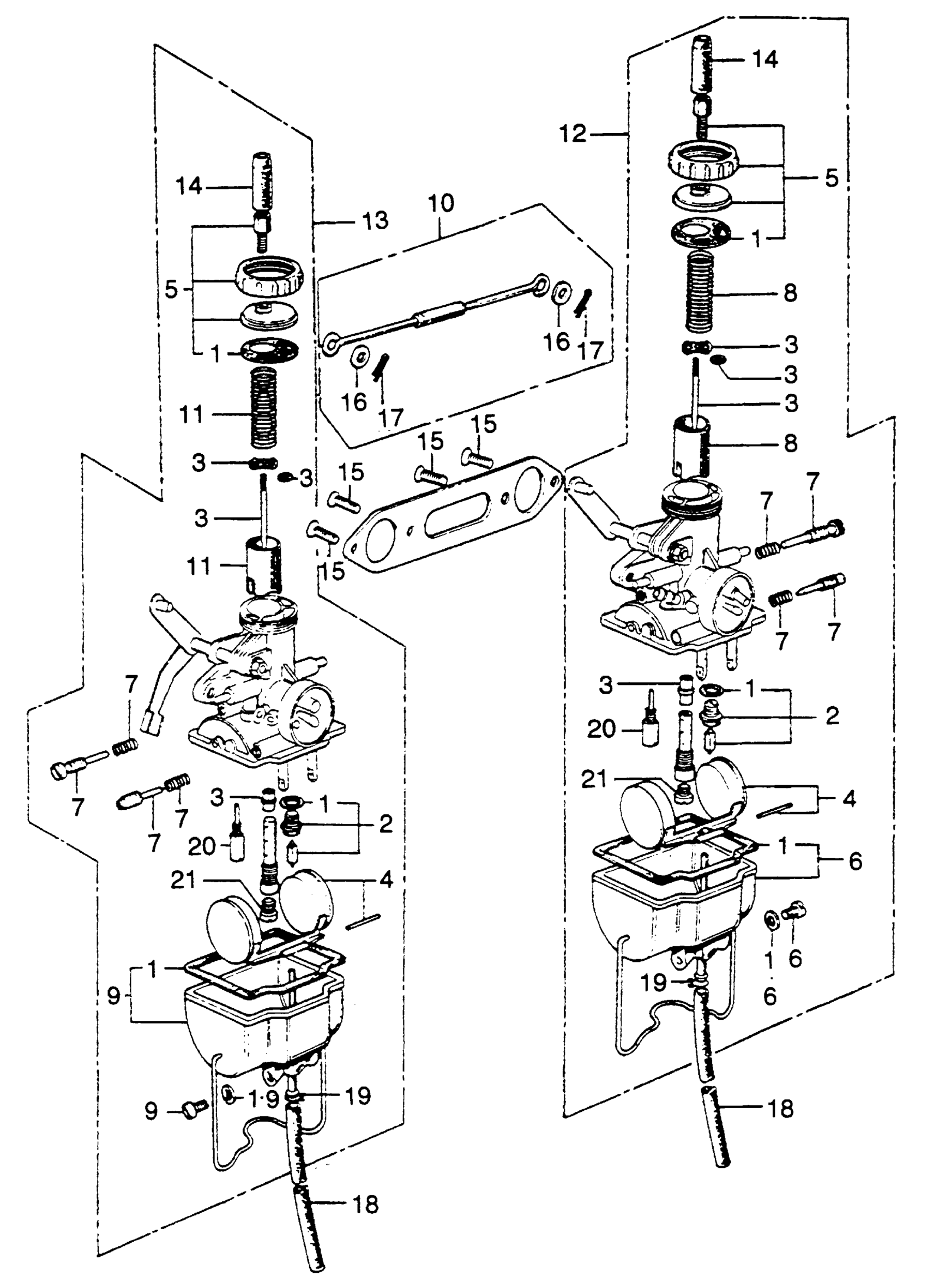

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-107-305

$12.74

1

GASKET SET This part replaces 16010-312-004.

16010-107-305

$12.74

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-312-004

Unavailable

4

FLOAT SET

16013-312-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-312-004

$22.44

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-107-710

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-312-004

Unavailable

8

VALVE SET A, THROTTLE (NOT AVAILABLE)

16022-312-004

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-312-004

Unavailable

10

ROD SET A, CHOKE (NOT AVAILABLE)

16025-312-004

Unavailable

11

VALVE SET B, THROTTLE (NOT AVAILABLE)

16027-312-004

Unavailable

12

CARBURETOR ASSY., R. (NOT AVAILABLE) | Use up to Engine SN 2028797 This part replaces 16101-312-024.

16101-312-034

Unavailable

12

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-312-034

Unavailable

13

CARBURETOR ASSY., L. (NOT AVAILABLE) | Use up to Engine SN 2028797 This part replaces 16102-312-024.

16102-312-034

Unavailable

13

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-312-034

Unavailable

14

CAP, CABLE SEALING | Use up to Engine SN 2028797 This part replaces 16118-190-004.

16118-166-004

$8.08

14

CAP, CABLE SEALING | Use up to Engine SN 2028797 This part replaces 16194-028-004.

16118-166-004

$8.08

14

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

14

CAP, CABLE SEALING | Use up to Engine SN 2028797 This part replaces 16118-086-004.

16118-166-004

$8.08

14

CAP, CABLE SEALING

16118-166-004

$8.08

14

CAP, CABLE SEALING | Use up to Engine SN 2028797

16118-166-004

$8.08

15

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

16

WASHER, PLAIN (5MM)

94101-05000

$1.49

17

PIN, SPLIT (1.0MM)

94201-10150

$1.49

18

BULK HOSE, FUEL (3.5X3000) (3.5X210) | Use up to Engine SN 2035161

95001-35003-60M

$20.85

18

BULK HOSE, FUEL (3.5X3000) (3.5X330) | Use from Engine SN 2035162

95001-35003-60M

$20.85

19

CLIP, TUBE (B7) | Use from Engine SN 2028798

95002-02070

$1.80

20

JET, SLOW (#38) (NOT AVAILABLE)

99103-312-0380

Unavailable

20

JET, SLOW (#40) (NOT AVAILABLE)

99103-312-0400

Unavailable

20

JET, SLOW (#42) (NOT AVAILABLE)

99103-312-0420

Unavailable

21

JET, MAIN (#120)

99114-246-1200

$8.10

21

JET, MAIN (#125) (NOT AVAILABLE)

99114-246-1250

Unavailable

21

JET, MAIN (#110)

99114-246-1100

Unavailable

21

JET, MAIN (#115)

99114-246-1150

Unavailable

21

JET, MAIN (#130) (NOT AVAILABLE)

99114-246-1300

Unavailable

21

JET, MAIN (#135) (NOT AVAILABLE)

99114-246-1350

Unavailable
