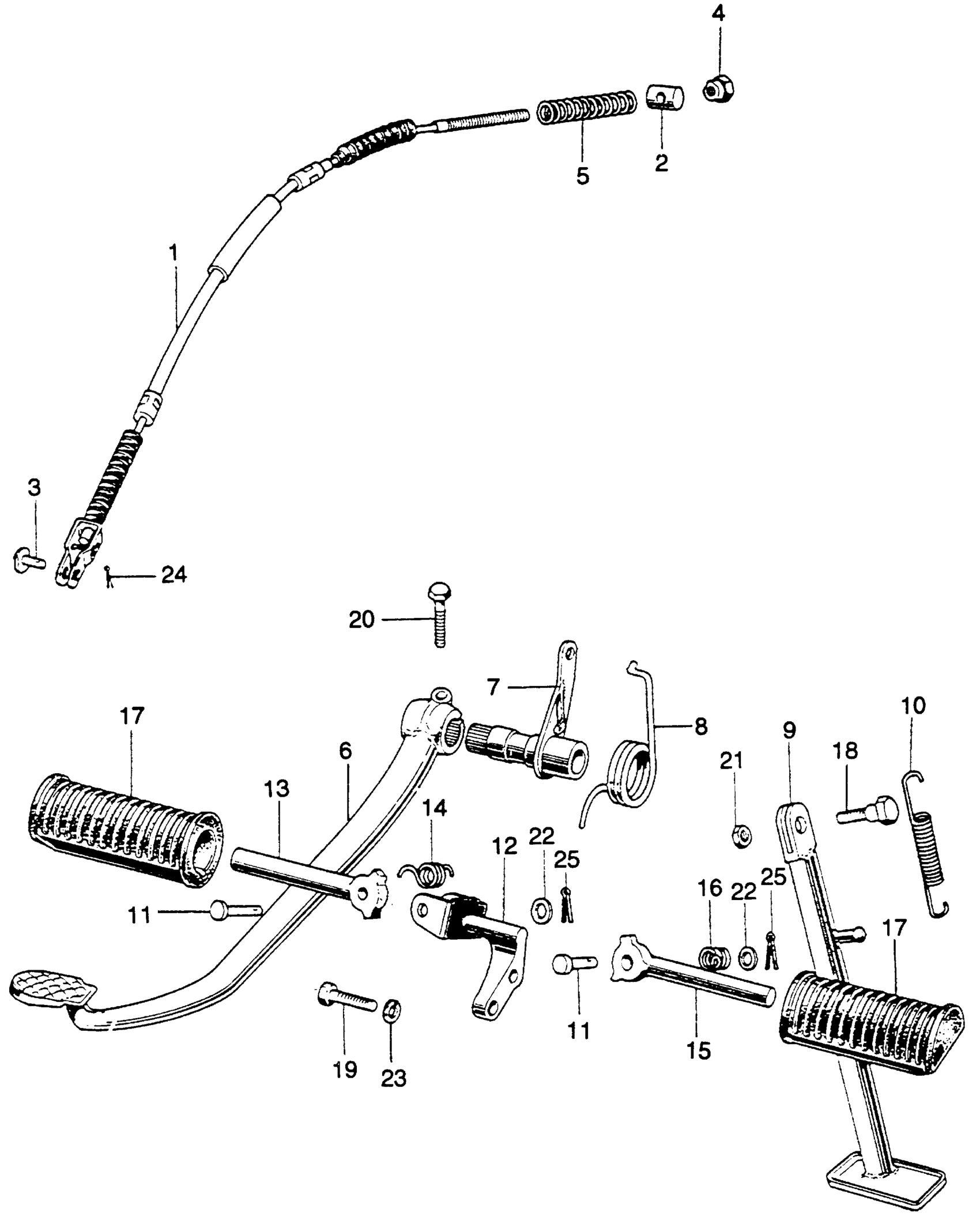

Honda SL350K1A MOTORCYCLE, JPN, VIN# SL350-2000001 BRAKE PEDAL + STEP Diagram

#

Description
Price

1

CABLE, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 2028770 This part replaces 43450-312-000.

43450-312-010

Unavailable

1

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-312-010

Unavailable

2

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

2

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

2

JOINT B, BRAKE ARM

95015-32001

$1.49

3

PIN B, BRAKE ROD JOINT This part replaces 43471-292-010.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT This part replaces 46517-361-000.

95015-52000

$2.03

3

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

4

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

4

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

5

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

6

PEDAL, BRAKE (NOT AVAILABLE)

46500-312-010

Unavailable

7

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE) This part replaces 46510-312-000.

46510-340-000

$39.92

7

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46510-340-000

$39.92

8

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-312-010

Unavailable

9

BAR, SIDE STAND (NOT AVAILABLE)

50530-312-010

Unavailable

10

SPRING, SIDE STAND (NOT AVAILABLE)

50542-310-010

Unavailable

11

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

11

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

12

ARM, R. STEP *NH10M* (DARK SILVER METALLIC)

50615-312-010S

Unavailable

13

ARM, R. STEP (NOT AVAILABLE)

50616-312-010

Unavailable

14

SPRING, R. STEP RETURN

50617-056-670

Unavailable

14

SPRING, R. STEP RETURN This part replaces 50617-165-650.

50617-056-670

Unavailable

15

ARM, L. STEP (NOT AVAILABLE)

50642-312-010

Unavailable

16

SPRING, L. STEP RETURN

50644-056-670

Unavailable

17

RUBBER, STEP

50661-312-000

$16.08

18

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

19

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

19

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

20

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

20

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

21

NUT, HEX. (10MM)

94002-10000-0S

$4.06

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

PIN, SPLIT (1.6X12)

94201-16120

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49
