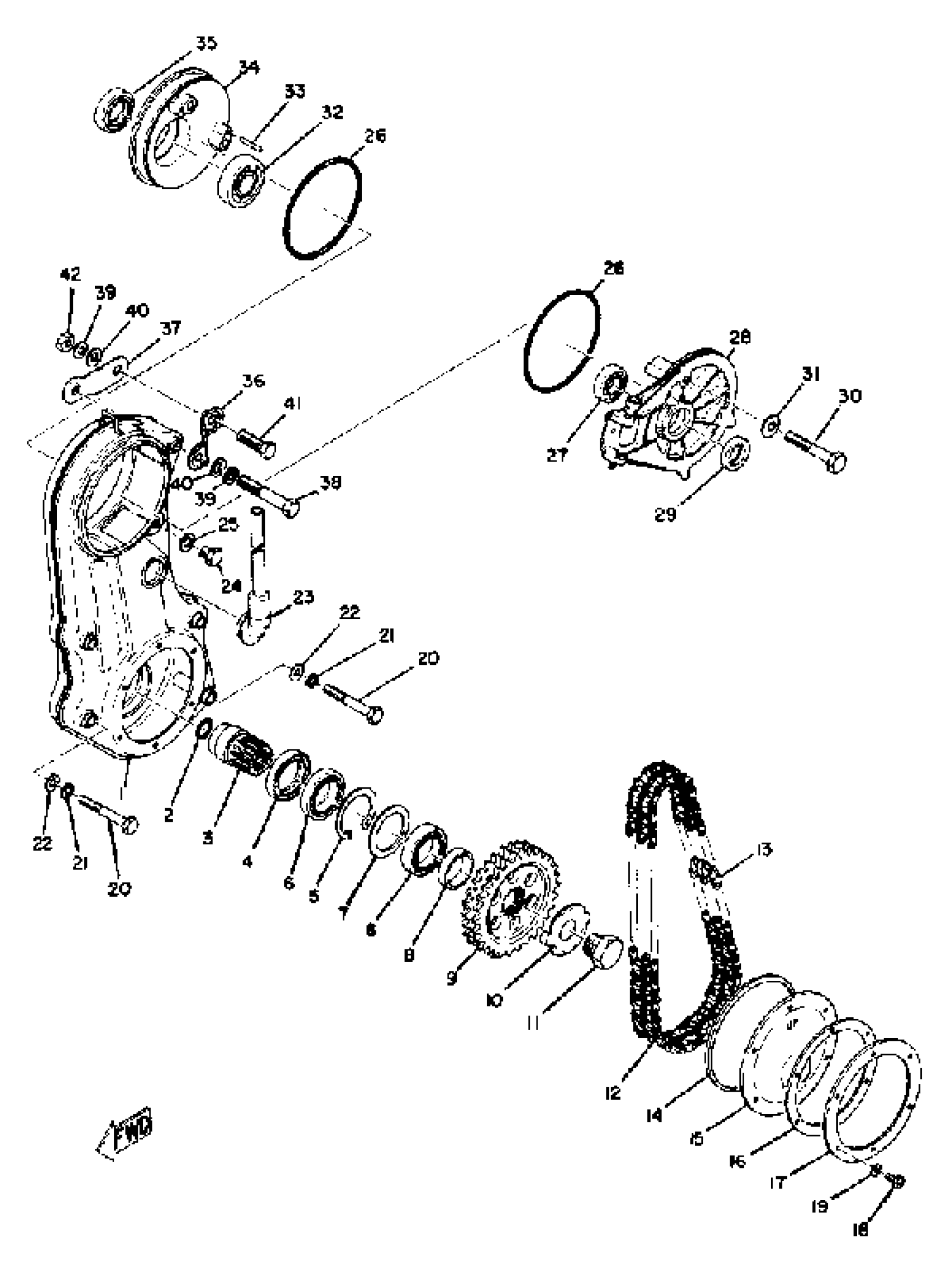

Yamaha SL338F 1974 TRACK DRIVE Diagram

#

Description

Price

1

HOUSING, CHAIN

(844-47541-00-00)

Unavailable

2

O-RING (437)

93210-24235-00

$7.49

3

JOURNAL 1

(841-47571-00-00)

Unavailable

4

OIL SEAL, SD-TYPE

93102-40080-00

Unavailable

5

CIRCLIP, R-TYPE

93420-55028-00

Unavailable

6

BEARING

93306-90702-00

Unavailable

7

SPACER

90560-35050-00

Unavailable

8

COLLAR

90387-35206-00

Unavailable

9

SPROCKET, CHN DRVN

(802-47548-40-00)

Unavailable

9

SPROCKET, CHN DRVN

802-47548-50-00

Unavailable

9

SPROCKET, CHN DRVN

(802-47548-60-00)

Unavailable

10

WASHER, LOCK

90215-24029-00

Unavailable

11

BOLT

90109-24203-00

Unavailable

12

CHAIN

94804-25068-00

Unavailable

13

. JOINT CHAIN

94904-25001-00

Unavailable

14

RING, HOUSING

(806-47558-00-00)

Unavailable

15

CAP, HOUSING

(821-47543-00-00)

Unavailable

16

GASKET

821-47544-00-00

Unavailable

17

PLATE

(821-47591-00-00)

Unavailable

18

SCREW

90143-05004-00

Unavailable

19

WASHER, SEAL

90210-05005-00

Unavailable

20

BOLT(6TC)

97027-08070-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

WASHER, PLAIN

92990-08200-00

Unavailable

23

KNUCKLE, STEERING 1

J17-23510-00-00

Unavailable

24

ARM, KNUCKLE 2

J11-23522-00-00

Unavailable

25

BOLT

90109-10643-00

Unavailable

26

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

27

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

28

NUT 3532518200

90171-10004-00

Unavailable

29

PIN, COTTER(6L5)

91490-25030-00

Unavailable

30

WASHER, CLAW

90214-16027-00

Unavailable

31

BOLT, HEXAGON

97013-08030-00

Unavailable

32

. NUT

95380-08700-00

Unavailable

33

KING PIN, STEERING KNUCKLE

J10-23516-02-00

Unavailable

34

PIN, COTTER

91490-30030-00

Unavailable

35

NUT, NYLON

95717-12300-00

Unavailable

36

BOLT, WASHER BASED

90105-10224-00

Unavailable

37

NUT, SELF-LOCKING

90185-10170-00

Unavailable

38

ROD, TENSION

J17-W2355-00-00

Unavailable

39

. BUSH

J10-23583-01-00

Unavailable

40

BOLT, WASHER BASED

90105-08225-00

Unavailable

41

NUT, SELF-LOCKING

90185-08169-00

Unavailable

42

BOLT, WASHER BASED

90105-12226-00

Unavailable
