1974 Yamaha SL338F Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1974 Yamaha SL338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

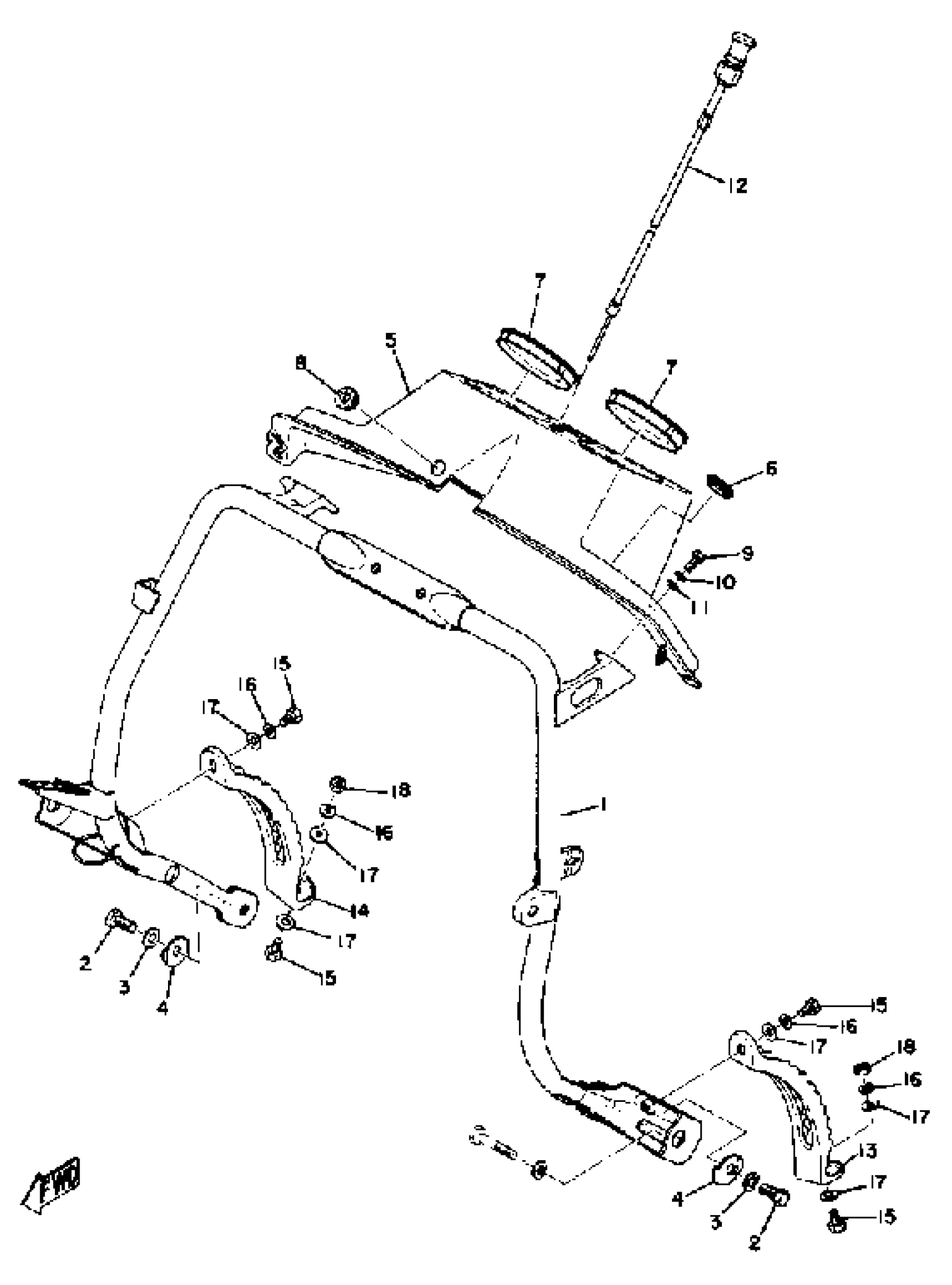

1974 Yamaha SL338F Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(861-23870-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

4

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

5

PANEL, INSTRUMENT

861-77711-00-00

1
Out of stock

6

GROMMET

(841-77746-00-00)

1
Out of stock

7

ORMNT, INSTR PNL 1

(861-77715-00-00)

1
Out of stock

8

GROMMET (462)

90480-13018-00

1

$6.25

In stock

9

BOLT, HEXAGON

(97306-05012-00)

1
Out of stock

10

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

11

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

12

CABLE, STARTER 1

841-26331-00-00

1
Out of stock

13

FOOTREST 1

(841-27411-00-00)

1
Out of stock

14

FOOTREST 2

(841-27421-00-00)

1
Out of stock

15

BOLT (661)

97013-06012-00

1

$4.71

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
