1974 Yamaha SL338F Grip - Wireing Diagram

← All diagrams

Find the part on the Grip - Wireing diagram for your 1974 Yamaha SL338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

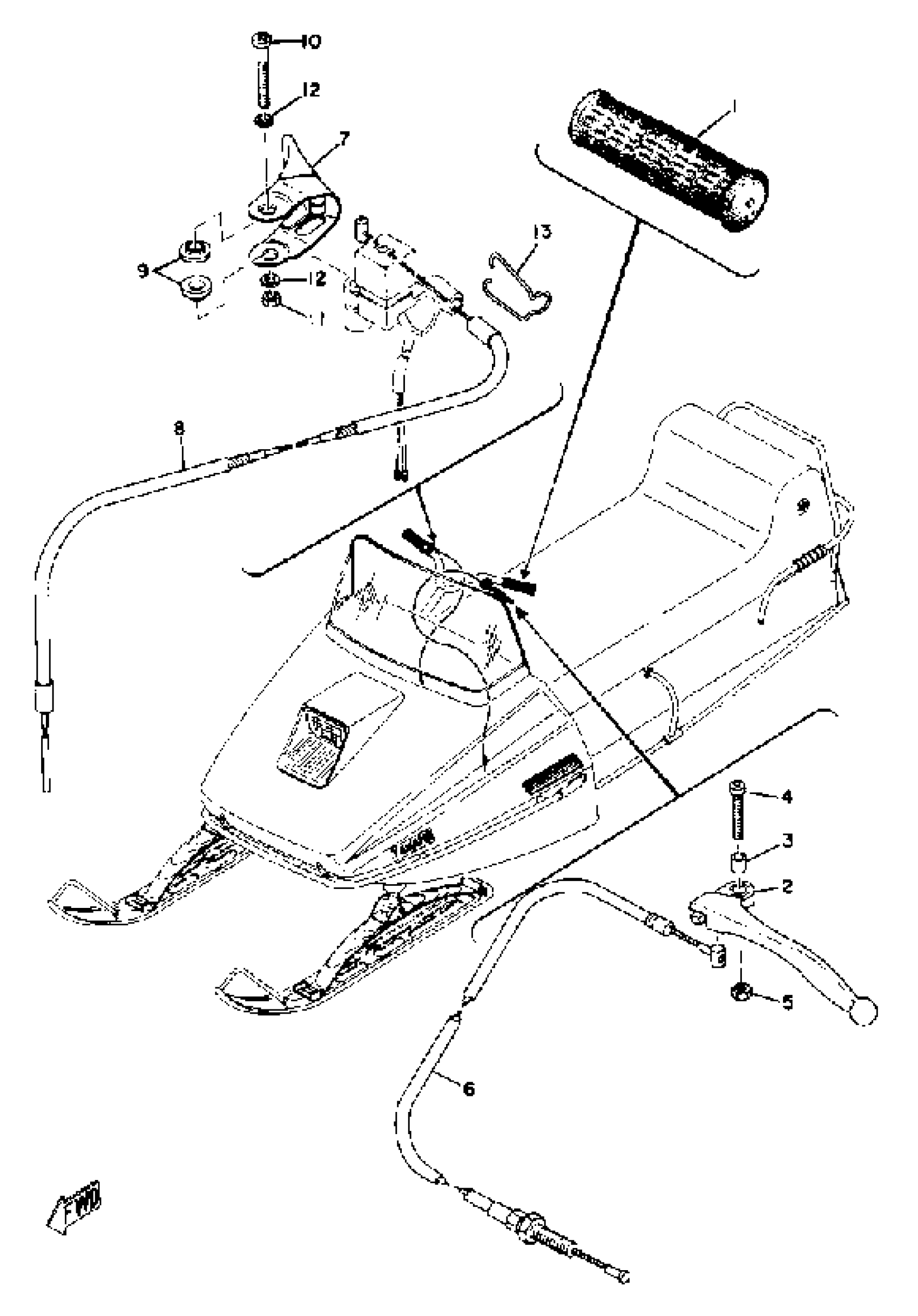

1974 Yamaha SL338F Grip - Wireing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

801-26241-02-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

802-83912-00-38

1
Out of stock

3

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

4

SCREW,PAN HEAD

90157-05055-00

1
Out of stock

5

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

6

CABLE, BRAKE

861-26340-02-00

1
Out of stock

7

LEVER, THROTTLE

8G8-42138-00-00

1
Out of stock

7

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

7

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

7

THROTTLE LEVER

99999-01028-00

1
Out of stock

8

CABLE THROTTLE 1

863-26311-03-00

1
Out of stock

9

C0LLAR

90387-062M9-00

1
Out of stock

10

SCREW, PAN HEAD (810-83925-00)

90157-06004-00

1
Out of stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

CLIP (821-26391-00)

90468-10017-00

1
Out of stock
