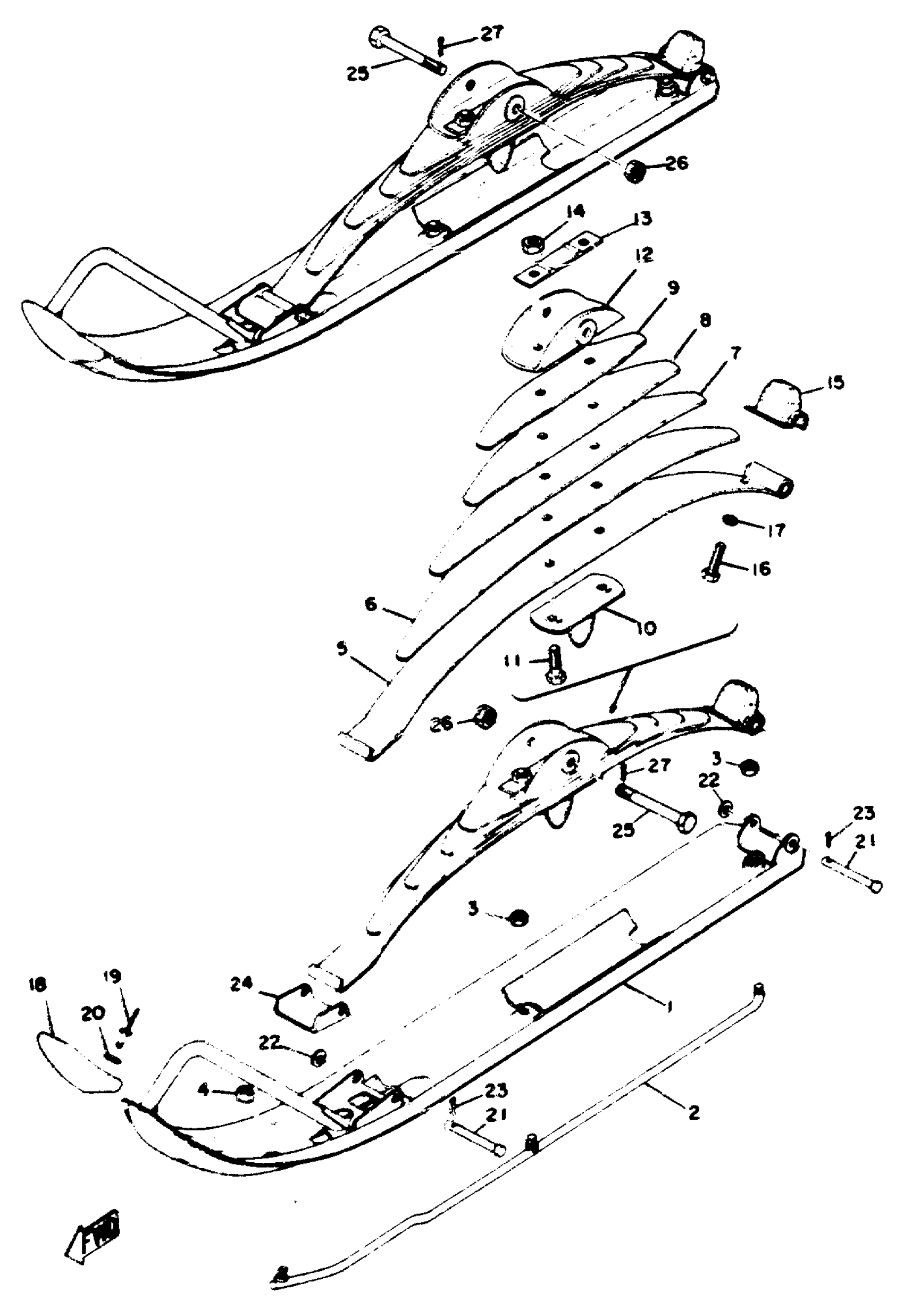

Yamaha SL338F 1974 SKI Diagram
#
1
SPRING ASSEMBLY 1
(861-23760-00-00)
Unavailable
1
SKI 1
(863-23710-00-00)
Unavailable
2
SPRING ASSEMBLY 2
(861-23770-00-00)
Unavailable
2
RUNNER 1
863-23731-02-00
Unavailable
3
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
4
NUT
90185-08055-00
$9.49
5
LEAF 1
(861-23761-00-00)
Unavailable
6
LEAF 2
(861-23762-00-00)
Unavailable
7
LEAF 3
(861-23763-00-00)
Unavailable
8
LEAF 4
(861-23764-00-00)
Unavailable
9
LEAF 5
(861-23771-00-00)
Unavailable
10
. SEAT, SPRING 1
878-23768-00-00
Unavailable
11
. BOLT
90101-10060-00
Unavailable
12
. SADDLE 1
806-23766-00-00
Unavailable
13
WASHER, SPEC''L SHAP
(90209-10037-00)
Unavailable
14
NUT(6TD)
95337-10600-00
Unavailable
15
STOPPER 1
(841-23743-01-00)
Unavailable
16
BOLT (11T)
90101-06576-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
PROTECTOR, SKI
(863-23747-00-00)
Unavailable
19
RIVET, BLIND
(90267-40030-00)
Unavailable
20
WASHER, PLATE (820-77116-00)
90201-04023-00
Unavailable
21
PIN, CLEVIS (801-23733-00)
90240-08035-00
Unavailable
22
WASHER(6TC)
92907-08200-00
Unavailable
23
PIN COTTER
91490-30025-00
Unavailable
24
PLATE, WEAR 1
802-23735-00-00
Unavailable
25
BOLT, WITH HOLE
90102-10023-00
Unavailable
26
NUT, SLOTTED
95306-10900-00
Unavailable
27
PIN, COTTER
91490-20025-00
Unavailable
