Description

Price

1

CRANKCASE ASSEMBLY

(846-15100-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, HEXAGON

97013-08050-00

Unavailable

5

BOLT (663)

97013-08060-00

$4.41

6

BOLT(6TC)

97027-08070-00

Unavailable

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

BOLT (248-11361-00)

90116-08064-00

$7.49

9

GASKET, CYLINDER

846-11351-02-00

$5.49

10

CYLINDER 1

859-11311-00-00

Unavailable

11

CYLINDER 2

(859-11321-00-00)

Unavailable

12

GASKET, CYL HEAD 1

8A6-11181-09-00

Unavailable

13

HEAD, CYLINDER 1

(859-11111-00-00)

Unavailable

14

HEAD, CYLINDER 2

(859-11121-00-00)

Unavailable

15

NUT, SPEC''L SHAPE

90179-08090-00

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

GASKET 838153840000

90430-06016-00

Unavailable

19

JOINT, BREATHER

J38-11116-00-00

Unavailable

20

UNAVAILABLE IN PRICE BOOK

NKG-B7HS0-00-00

Unavailable

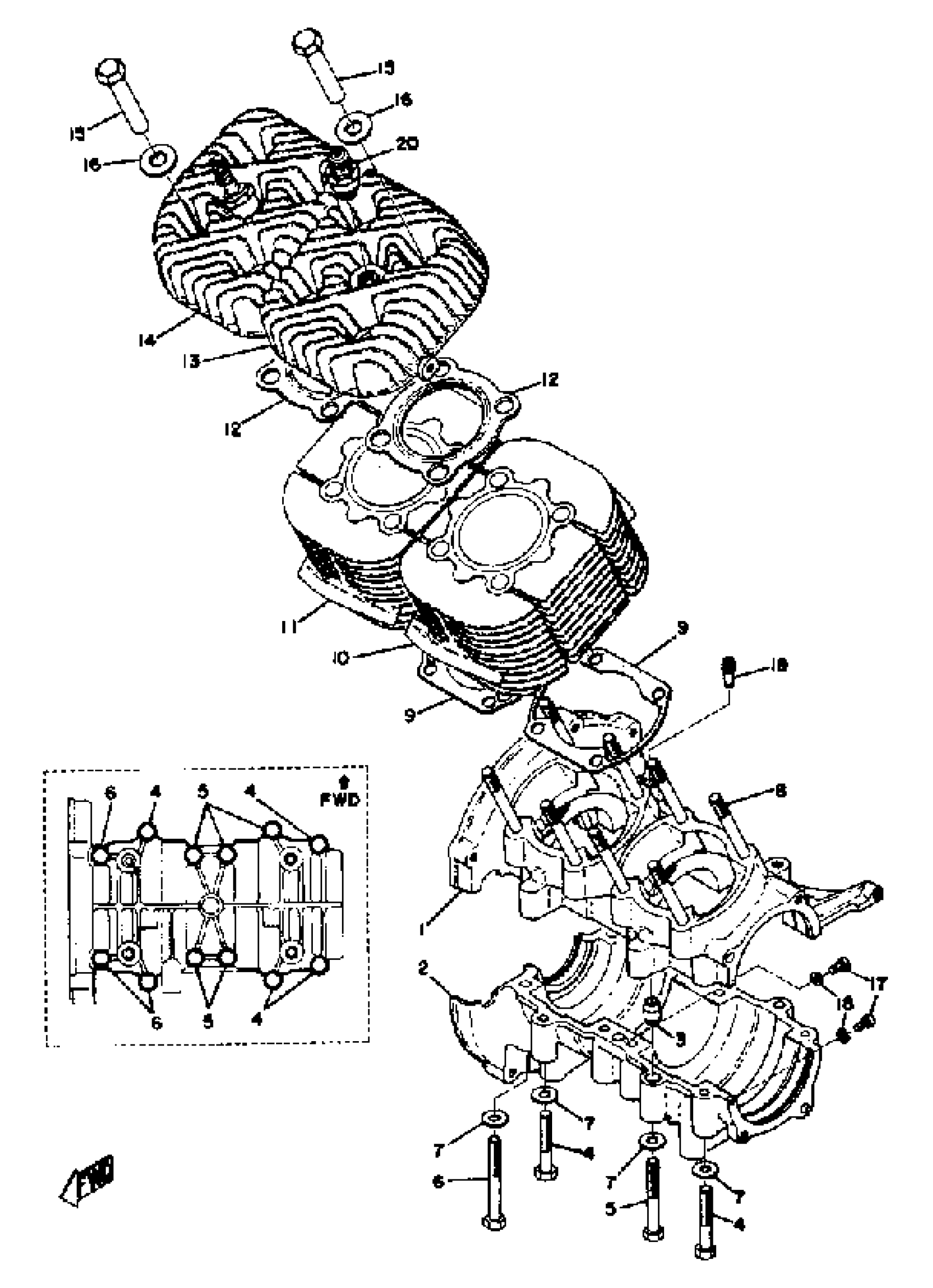

Yamaha SL338F 1974 CRANKCASE - CYLINDER Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

BOLT, HEXAGON

BOLT (663)

BOLT(6TC)

WASHER, PLAIN

BOLT (248-11361-00)

GASKET, CYLINDER

CYLINDER 1

CYLINDER 2

GASKET, CYL HEAD 1

HEAD, CYLINDER 1

HEAD, CYLINDER 2

NUT, SPEC''L SHAPE

YBS66-12 WASHER,PLAIN

SCREW PAN HEAD

GASKET 838153840000

JOINT, BREATHER

UNAVAILABLE IN PRICE BOOK
