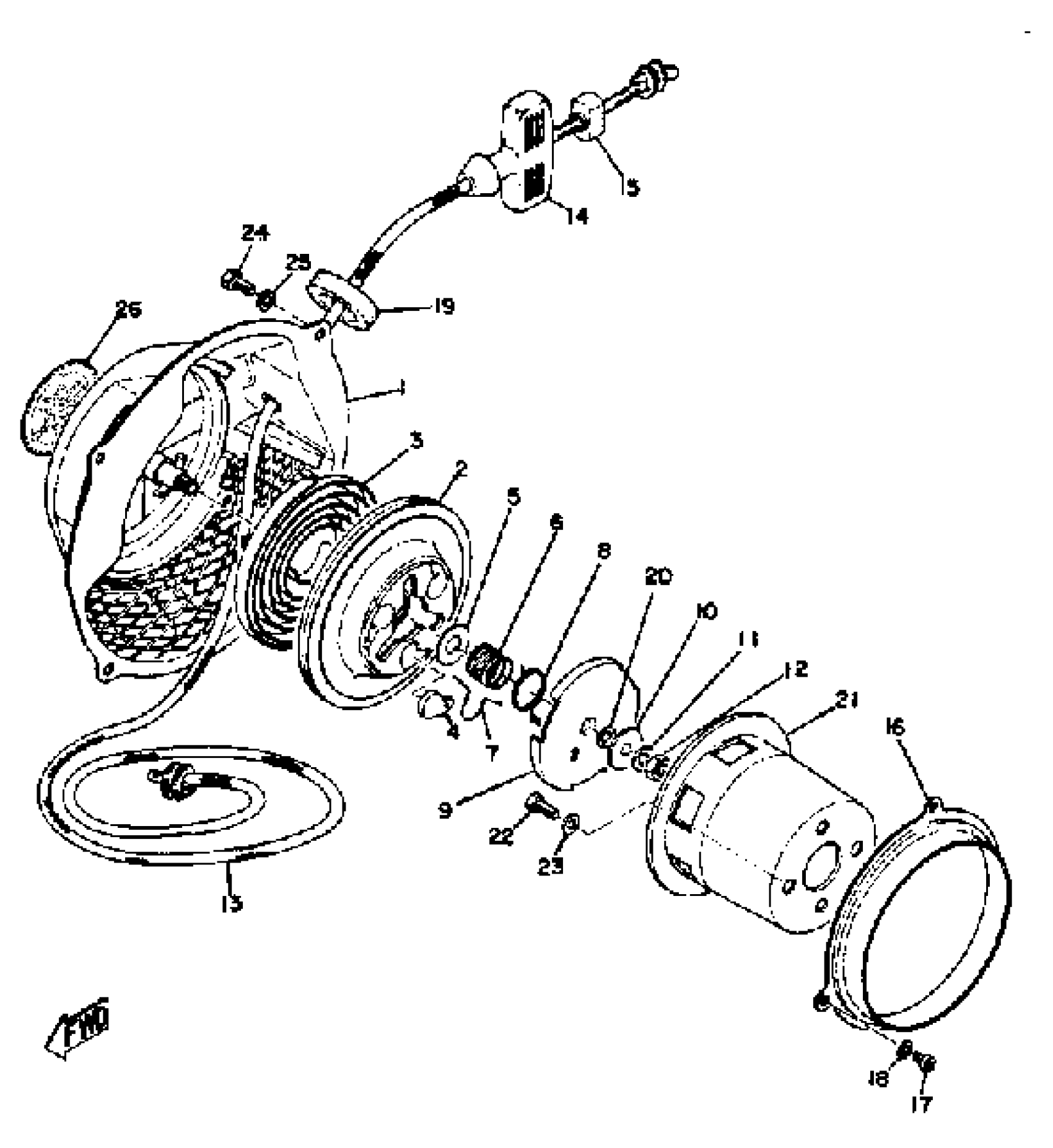

Yamaha SL338D 1973 STARTER Diagram

#

Description

Price

1

STARTER ASSEMBLY

(821-15710-00-00)

Unavailable

1

CASE, STARTER

(821-15711-00-00)

Unavailable

2

. DRUM, SHEAVE

811-15714-00-00

Unavailable

3

SPRING, STARTER

8F3-15713-01-00

$48.99

4

. PAWL, DRIVE

616-15741-01-00

Unavailable

5

WASHER, FLAT

(802-15726-00-00)

Unavailable

6

SPRING,DRIVE PLATE

626-15715-01-00

Unavailable

7

. SPRING, RETURN

811-15784-00-00

Unavailable

8

. SPRING, RETURN

811-15734-00-00

Unavailable

9

. PLATE, DRIVE

811-15716-00-00

Unavailable

10

WASHER,FLAT

807-15726-01-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

. NUT

95380-08700-00

Unavailable

13

ROPE, STARTER

(807-15751-00-00)

Unavailable

14

. HANDLE, STARTER

807-15755-00-00

Unavailable

15

. CONNECTOR 1

619-15756-00-00

Unavailable

16

COVER, SHEAVE

(811-15782-00-00)

Unavailable

17

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

19

KNOB, STOPPER RING

(811-15775-00-00)

Unavailable

20

SHIM

(811-15722-00-00)

Unavailable

21

PULLEY, STARTER

(811-15723-00-00)

Unavailable

22

BOLT, HEXAGON

97013-08016-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

24

BOLT, HEXAGON

97017-06016-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable

26

EMBLEM

(838-15791-00-00)

Unavailable
