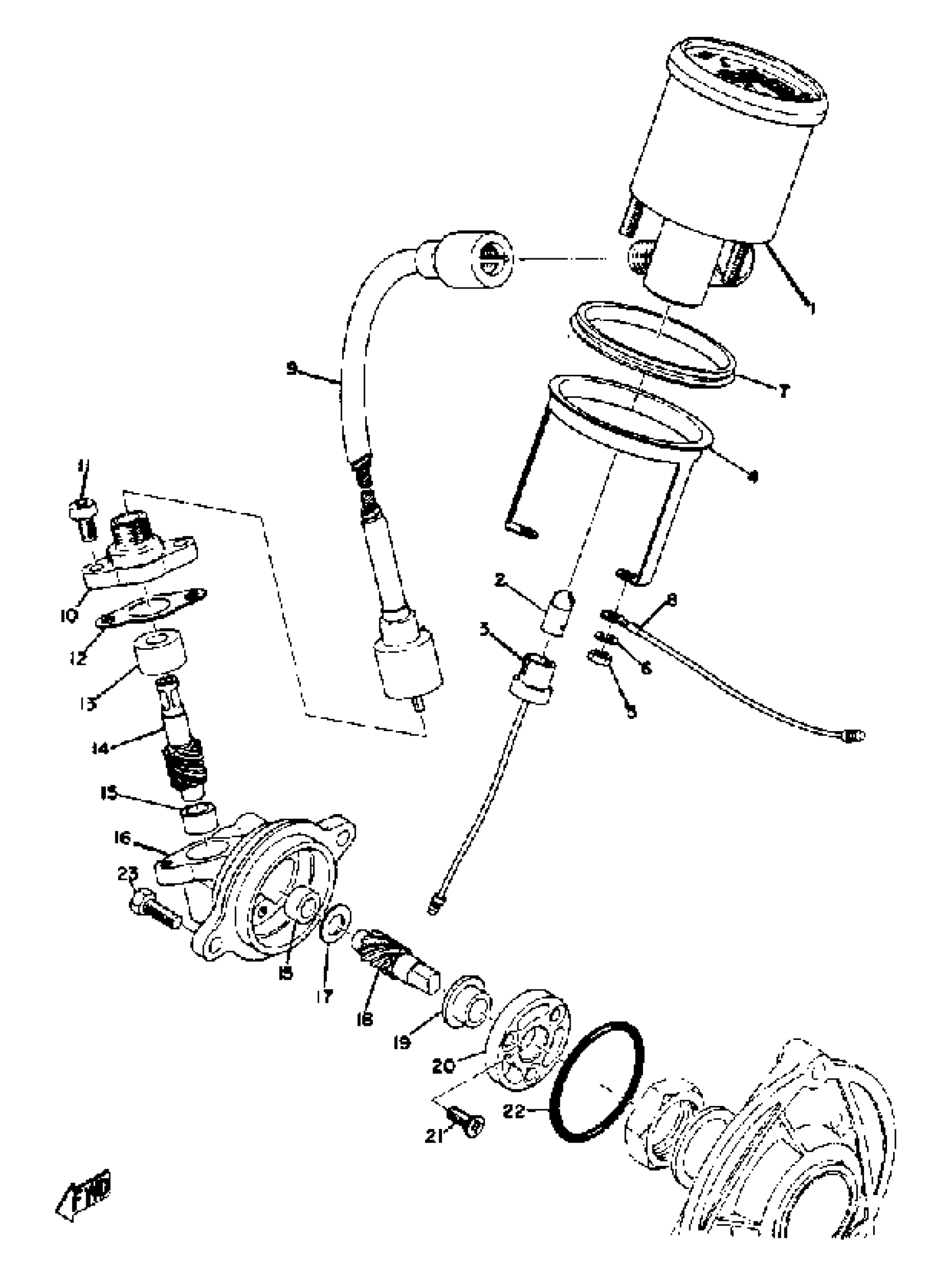

Yamaha SL338D 1973 SPEEDOMETER UNIT Diagram

#

Description

Price

1

SPEEDOMETER ASSEMBLY

(839-83510-40-00)

Unavailable

2

BULB

256-84347-00-00

Unavailable

3

SOCKET, METER

(839-83536-40-00)

Unavailable

4

PLATE, FITTING

(839-83514-40-00)

Unavailable

5

NUT, HEXAGON (663)

95380-05600-00

$8.49

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

GROMMET

(90480-58085-00)

Unavailable

8

CASE, SPDMTR UPPER

(842-83571-00-00)

Unavailable

9

SPEEDOMETER CABLE

839-83550-01-00

Unavailable

10

COVER, METER HOUSING

8E3-47721-10-00

Unavailable

11

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

12

GASKET

810-47727-11-00

Unavailable

13

BUSH, SOLID

90380-08005-00

Unavailable

14

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

Unavailable

15

BUSH, SOLID

(90380-08002-00)

Unavailable

16

HOUSING

8E6-47711-10-00

Unavailable

17

SHIM

810-47717-10-00

Unavailable

18

GEAR, DRIVE

810-47731-11-00

Unavailable

19

BUSH, SOLID

90381-10003-00

Unavailable

20

JOURNAL

853-47712-10-00

Unavailable

21

SCREW, FLAT

98707-04012-00

Unavailable

22

O-RING

93210-43141-00

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable
