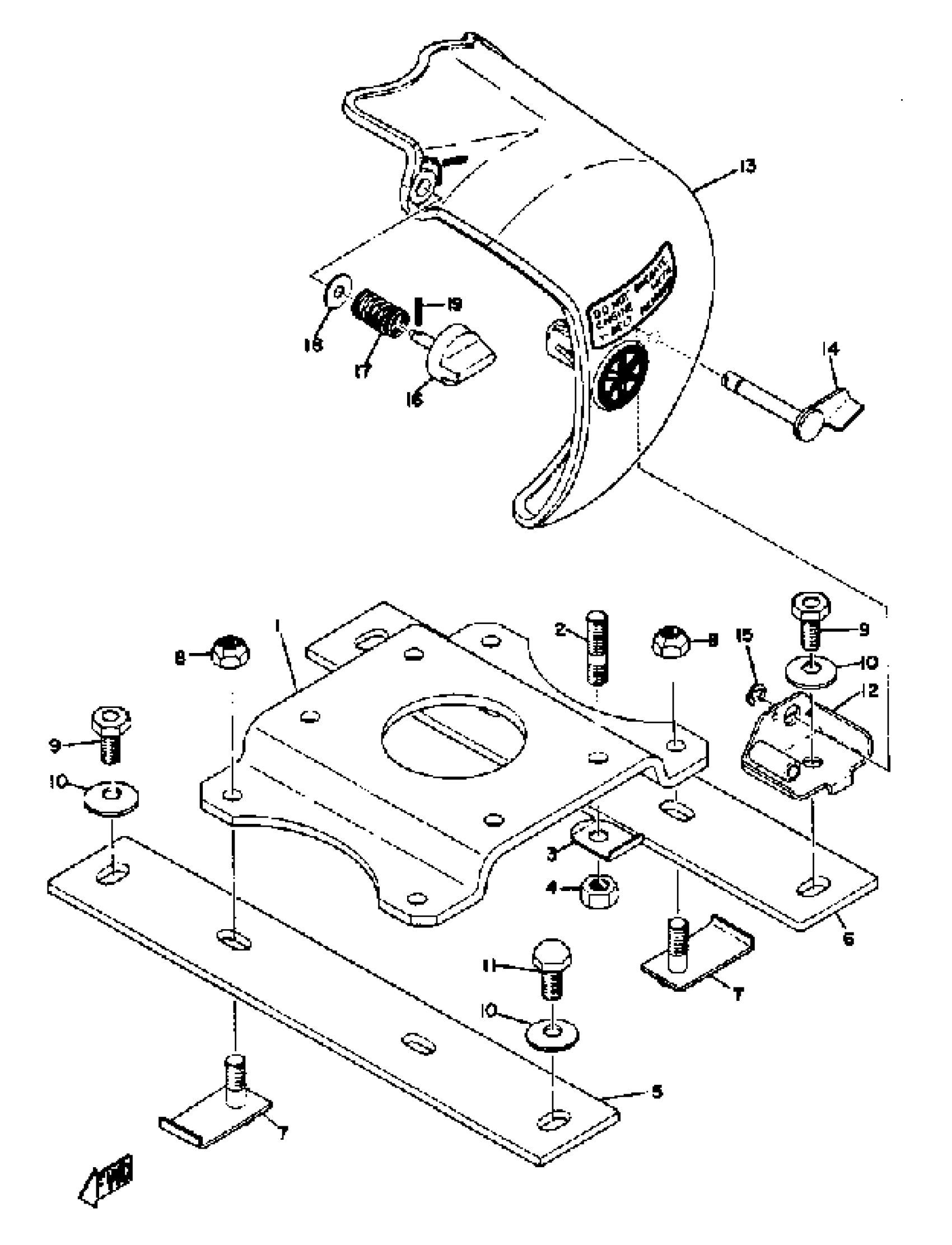

Yamaha SL338D 1973 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

(838-21411-01-00)

Unavailable

2

BOLT, STUD

(90116-10084-00)

Unavailable

3

WASHER, LOCK

(90215-10076-00)

Unavailable

4

NUT(3BM)

95314-10600-00

$2.39

5

BRACKET, ENGINE 2

(841-21419-00-00)

Unavailable

6

BRACKET, ENGINE 2

(829-21419-00-00)

Unavailable

7

BOLT, ENG MNTNG 2

(829-21482-00-00)

Unavailable

8

NUT, SELF-LOCKING

90185-10030-00

Unavailable

9

BOLT

90101-10055-00

Unavailable

10

WASHER, CONICAL SPR

90208-10013-00

Unavailable

11

BOLT, DOME HEAD

(90106-10014-00)

Unavailable

12

BRACKET 1

(829-77315-00-00)

Unavailable

13

GUARD, DRIVE

(841-77311-00-00)

Unavailable

14

ARM, FITTING

806-77314-00-00

Unavailable

15

CIRCLIP(53L)

99001-06600-00

$1.01

16

KNOB

(806-77324-00-00)

Unavailable

17

SPRING 1

806-77325-00-00

Unavailable

18

WASHER, PLATE

90201-06095-00

Unavailable

19

PIN, SPRING

91690-25016-00

Unavailable
