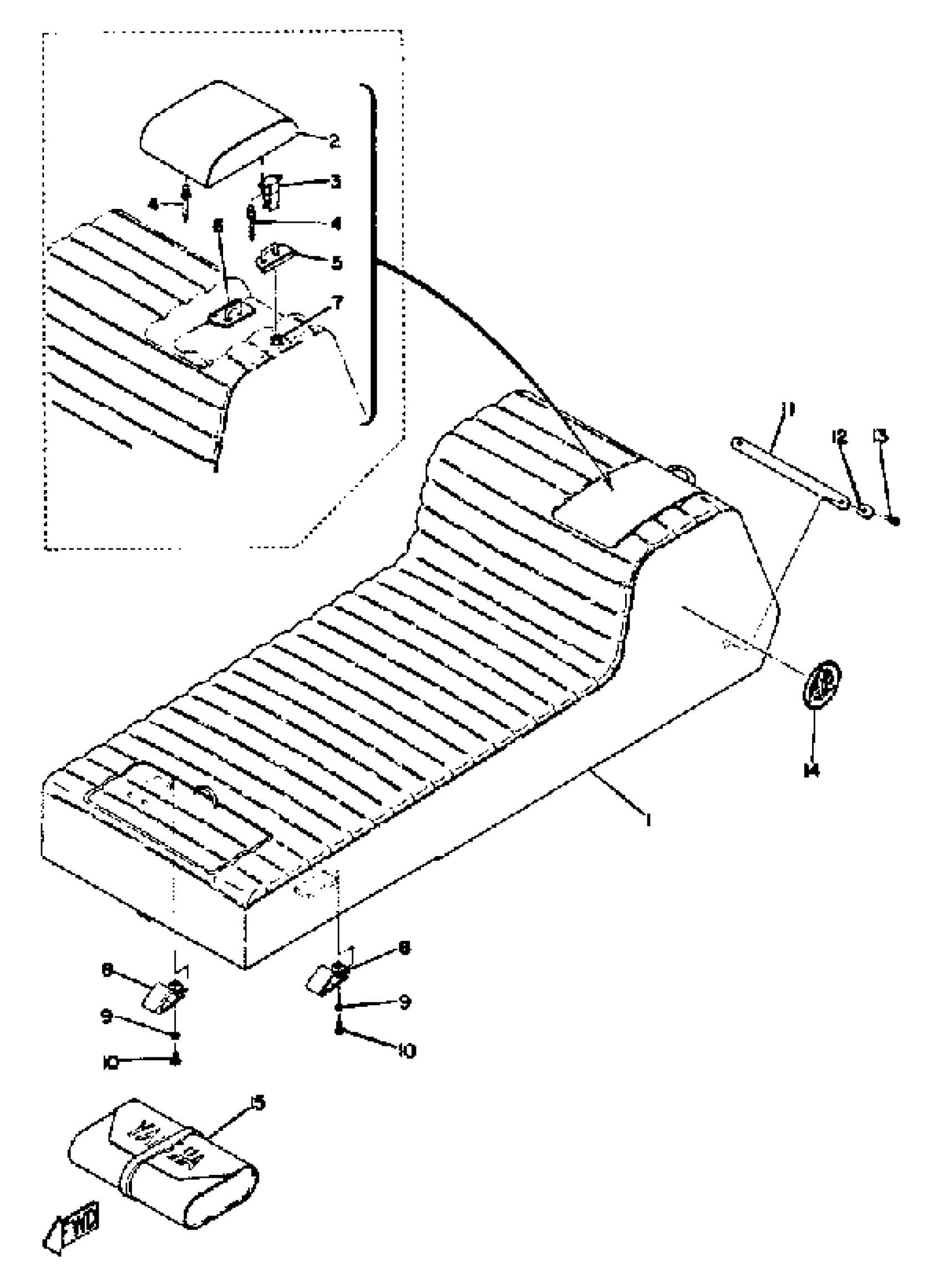

Yamaha SL338B 1971 SEAT (SL338C) Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

(822-24730-00-00)

Unavailable

1

. COVER, DOUBLE SEAT

822-24731-00-00

Unavailable

2

LID, DOUBLE SEAT

821-24765-00-00

Unavailable

3

SPRING, SEAT BACK

(821-24794-00-00)

Unavailable

4

RIVET, BLIND

(90267-32016-00)

Unavailable

5

PIN

(821-24793-00-00)

Unavailable

6

PIN

(821-24784-00-00)

Unavailable

7

NUT(650)

95380-06700-00

$8.49

8

PLATE, SEAT FITTING

(809-24744-00-00)

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, SEAT

(813-24746-00-00)

Unavailable

12

WASHER, LOCK

(90215-07064-00)

Unavailable

13

BOLT(3DM)

97024-06020-00

$8.49

14

EMBLEM 2

821-77352-00-00

Unavailable

15

TOOL KIT

(810-28100-00-00)

Unavailable
