SEAT - LUGGAGE BOX (SL338B)

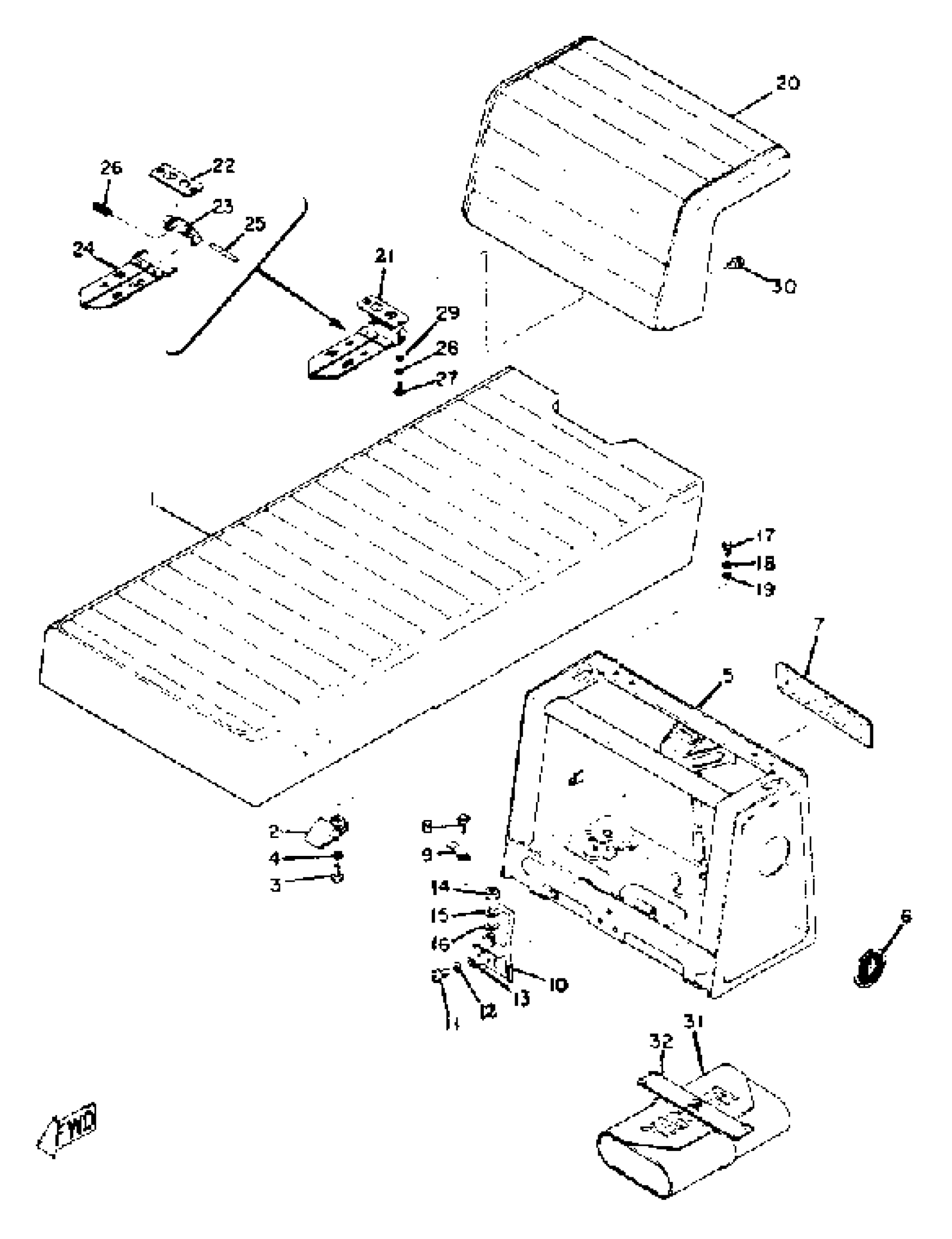

Yamaha SL338B 1971 SEAT - LUGGAGE BOX (SL338B) Diagram
#
1
DOUBLE SEAT ASSEMBLY
(810-24730-00-00)
Unavailable
1
COVER, DOUBLE SEAT
(810-24731-00-00)
Unavailable
2
PLATE, SEAT FITTING
(809-24744-00-00)
Unavailable
3
SCREW, PAN
98507-06014-00
$8.49
4
WASHER, SPRING
92995-06100-00
Unavailable
5
LUGGAGE BOX
(810-77391-00-00)
Unavailable
6
EMBLEM 2
806-77352-00-00
Unavailable
7
EMBLEM 3
806-77353-00-00
Unavailable
8
BOLT (661)
97013-06012-00
$5.60
9
WASHER, LOCK
(806-77396-00-00)
Unavailable
10
BRACKET, SEAT
(810-24738-00-00)
Unavailable
11
SCREW, PAN
98517-06012-00
$3.78
12
WASHER, SPRING
92907-06100-00
$4.25
13
WASHER(6TA)
92907-06200-00
$8.49
14
UNAVAILABLE IN PRICE BOOK
95306-08060-00
Unavailable
15
WASHER(JN5)
92907-08100-00
Unavailable
16
WASHER(6TC)
92907-08200-00
Unavailable
17
BOLT
97027-05010-00
Unavailable
18
WASHER(3SX)
92907-05100-00
Unavailable
20
SEAT BACK ASSEMBLY
810-24790-00-00
Unavailable
20
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
21
SEAT LEVER ASSEMBLY
(810-24760-00-00)
Unavailable
22
UNAVAILABLE IN PRICE BOOK
(810-24797-00-00)
Unavailable
23
COVER
(810-24796-00-00)
Unavailable
24
HOOK
(810-24798-00-00)
Unavailable
25
PIN
(810-24793-00-00)
Unavailable
26
SPRING, SEAT BACK
(810-24794-00-00)
Unavailable
27
SCREW, PAN
98517-06012-00
$3.78
28
WASHER, SPRING
92907-06100-00
$4.25
29
WASHER(6TA)
92907-06200-00
$8.49
30
STOPPER, CUSHION
(806-24714-00-00)
Unavailable
31
TOOL KIT
(810-28100-00-00)
Unavailable
32
BAND, BATTERY
26L-82131-00-00
Unavailable
