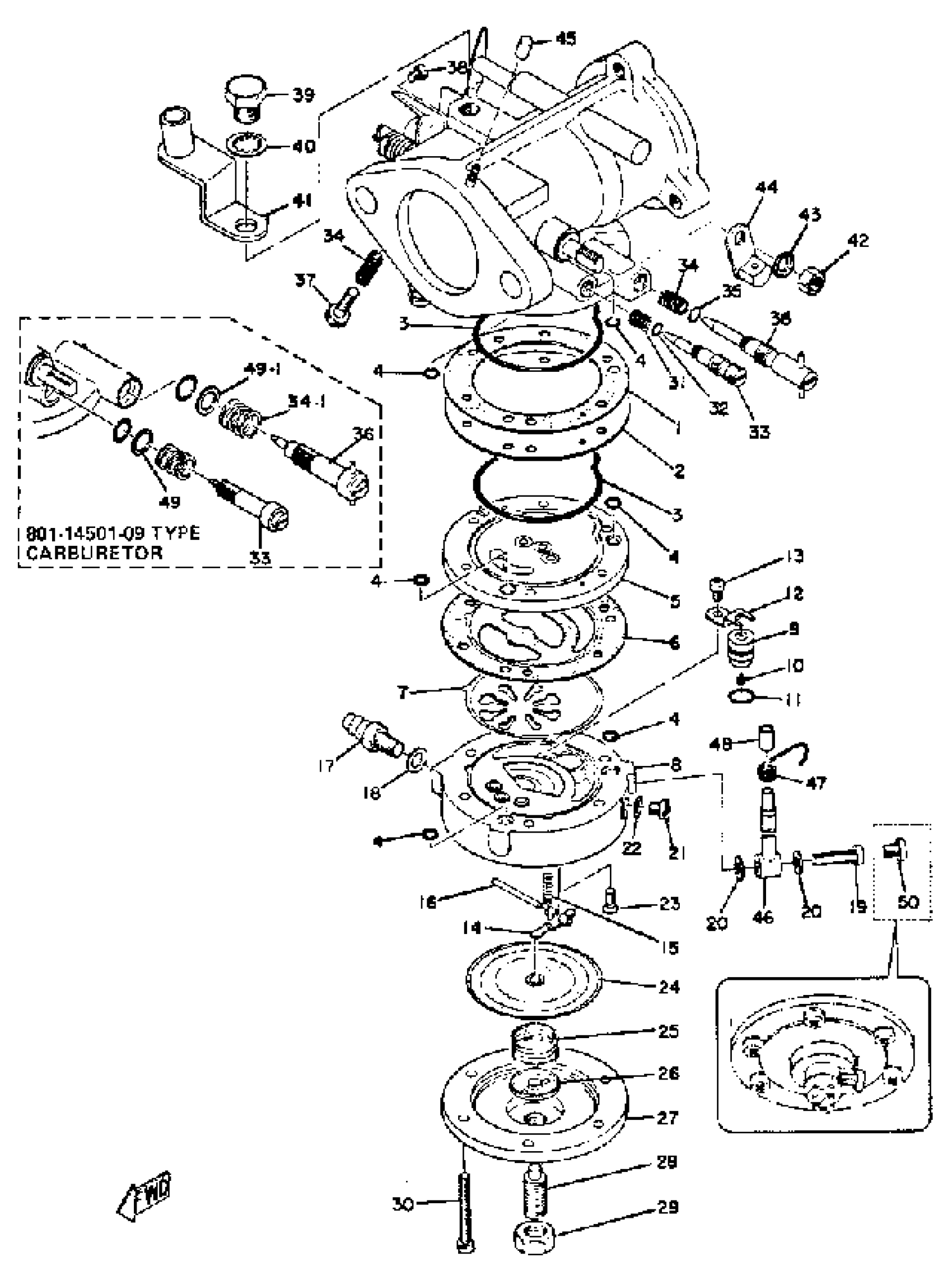

Yamaha SL338B 1971 CARBURETOR (SL-338B) Diagram

#

Description

Price

1

. GASKET

806-14536-00-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(810-14501-09-00)

Unavailable

1

SPRING, AJST SCREW

(824-14533-00-00)

Unavailable

1

. WASHER

824-14597-00-00

Unavailable

2

. DIAPHRAGM, PUMP

806-14541-00-00

Unavailable

3

. O-RING

806-14562-00-00

Unavailable

4

. O-RING

810-14561-00-00

Unavailable

5

BODY, PUMP 1

(810-14542-00-00)

Unavailable

5

BODY, PUMP 1

(824-14542-00-00)

Unavailable

6

GASKET

(806-14553-00-00)

Unavailable

6

GASKET

(810-14553-00-00)

Unavailable

7

VALVE,CHECK

806-14552-01-00

$56.99

8

BODY, PUMP 2

(810-14543-00-00)

Unavailable

9

VALVE SEAT ASSEMBLY

(810-14590-00-00)

Unavailable

9

VALVE SEAT ASSEMBLY

(824-14590-00-00)

Unavailable

10

. PIN, FLOAT

676-14186-00-00

Unavailable

11

. O-RING

810-24486-00-00

Unavailable

12

PLATE, PIN FITTING

(810-14549-00-00)

Unavailable

13

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

14

ARM, FLOAT

(810-14547-00-00)

Unavailable

15

. SPRING

810-14556-00-00

Unavailable

16

PIN, FLOAT ARM

(806-14548-00-00)

Unavailable

17

JOINT

(810-14568-00-00)

Unavailable

18

WASHER

(810-14558-00-00)

Unavailable

19

. SCREW

8A1-14592-00-00

Unavailable

20

. WASHER

806-14559-00-00

Unavailable

21

SCREW

(806-14567-01-00)

Unavailable

22

. WASHER

810-14597-00-00

Unavailable

23

SCREW, FLAT

98707-03008-00

Unavailable

24

DIAPHRAGM

810-14545-00-00

Unavailable

25

SPRING

(810-14555-00-00)

Unavailable

26

SEAT, SPRING

(810-14136-00-00)

Unavailable

27

BODY, PUMP 3

(810-14544-00-00)

Unavailable

28

. SCREW, STOP

810-14565-00-00

Unavailable

28

. SCREW, STOP

824-14565-00-00

Unavailable

29

. NUT

95380-08700-00

Unavailable

30

SCREW

(824-14567-00-00)

Unavailable

31

SPRING, AJST SCREW

(806-14531-00-00)

Unavailable

31

SPRING, AJST SCREW

(824-14531-00-00)

Unavailable

32

O-RING

(810-14563-00-00)

Unavailable

32

. O-RING

824-14563-00-00

Unavailable

33

SCREW, ADJUST

(810-14522-00-00)

Unavailable

33

. SCREW, ADJUST

824-14522-00-00

Unavailable

34

SPRING, AJST SCREW

(806-14533-00-00)

Unavailable

34

SPRING, AJST SCREW

(806-14533-00-00)

Unavailable

35

O-RING

(810-14564-00-00)

Unavailable

35

. O-RING

824-14564-00-00

Unavailable

36

. SCREW, ADJUST

810-14521-00-00

Unavailable

37

SCREW, STOP

(810-14523-00-00)

Unavailable

38

SCREW

(810-14591-00-00)

Unavailable

39

BOLT(8X2)

90101-08344-00

Unavailable

40

WASHER, IN.TOOTH

(92901-08300-00)

Unavailable

41

BRACKET, THROTTLE

(810-14571-00-00)

Unavailable

42

NUT

(810-14595-00-00)

Unavailable

43

WASHER, LOCK

(806-14599-00-00)

Unavailable

44

. LEVER

810-14573-00-00

Unavailable

45

CAP, BLIND

(810-24462-00-00)

Unavailable

46

. PIPE, AIRVENT

810-14197-02-00

Unavailable

47

CLIP

(810-14159-00-00)

Unavailable

48

. CAP, BLIND

810-24462-01-00

Unavailable

49

. WASHER

806-14596-00-00

Unavailable

50

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable
