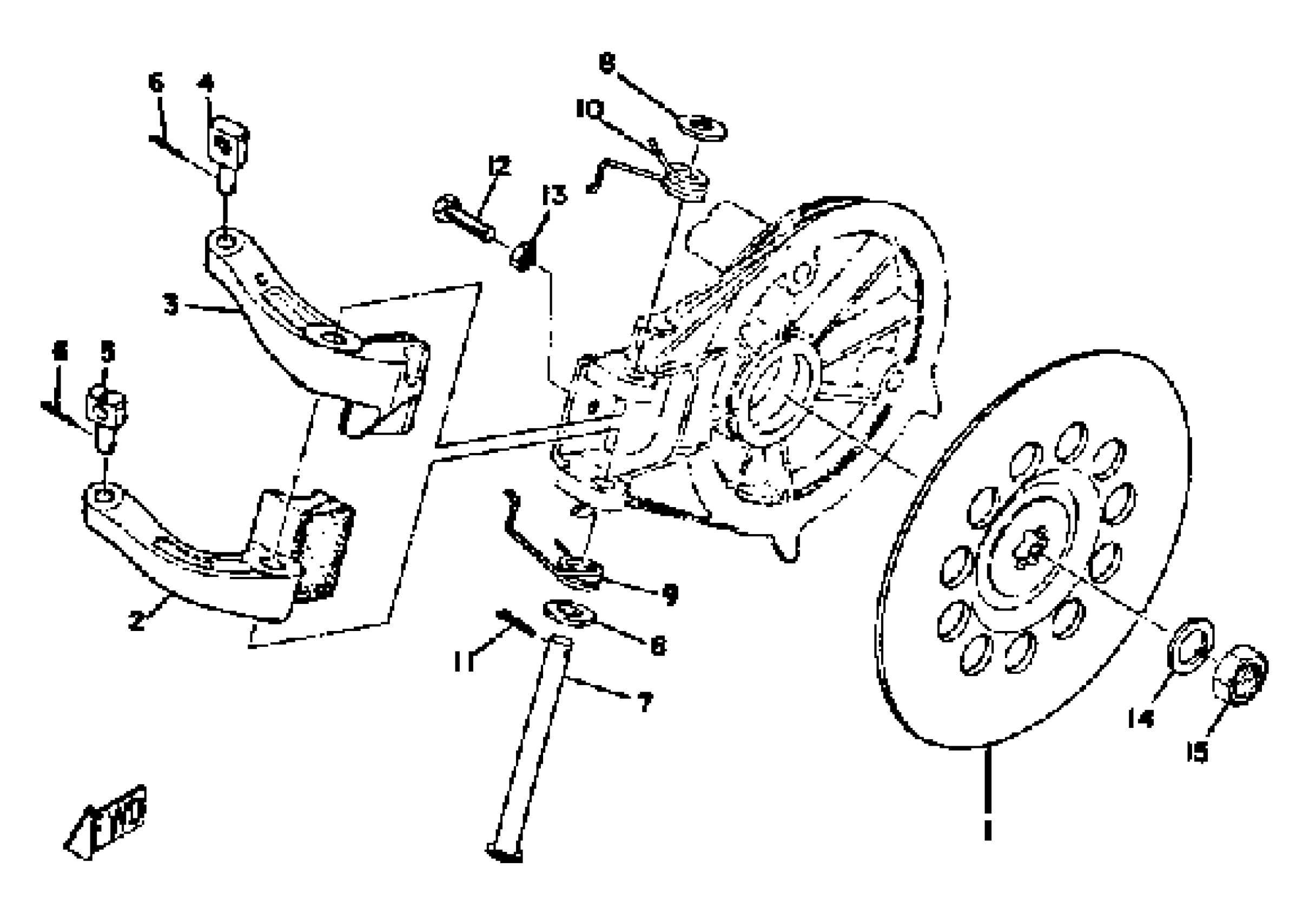

Find the part on the Brake diagram for your 1971 Yamaha SL338B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL338B Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

810-25711-00-00

1
Out of stock

2

CALIPER BODY 1

821-25730-00-00

1
Out of stock

3

CALIPER BODY 2

821-25740-00-00

1
Out of stock

4

PIN (810)

90249-06012-00

—

$9.91

In stock

5

PIN

90249-06009-00

1
Out of stock

6

PIN, COTTER

91490-20025-00

1

$1.31

In stock

7

PIN, CLEVIS

(90240-08022-00)

1
Out of stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

SPRING, RETURN 1

(810-25735-00-00)

1
Out of stock

10

SPRING, RETURN 2

(810-25745-00-00)

1
Out of stock

11

PIN, COTTER

91490-20025-00

1

$1.31

In stock

12

BOLT(3JK)

97027-05020-00

1

$2.48

In stock

13

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

14

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

15

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock
