TRACK DRIVE

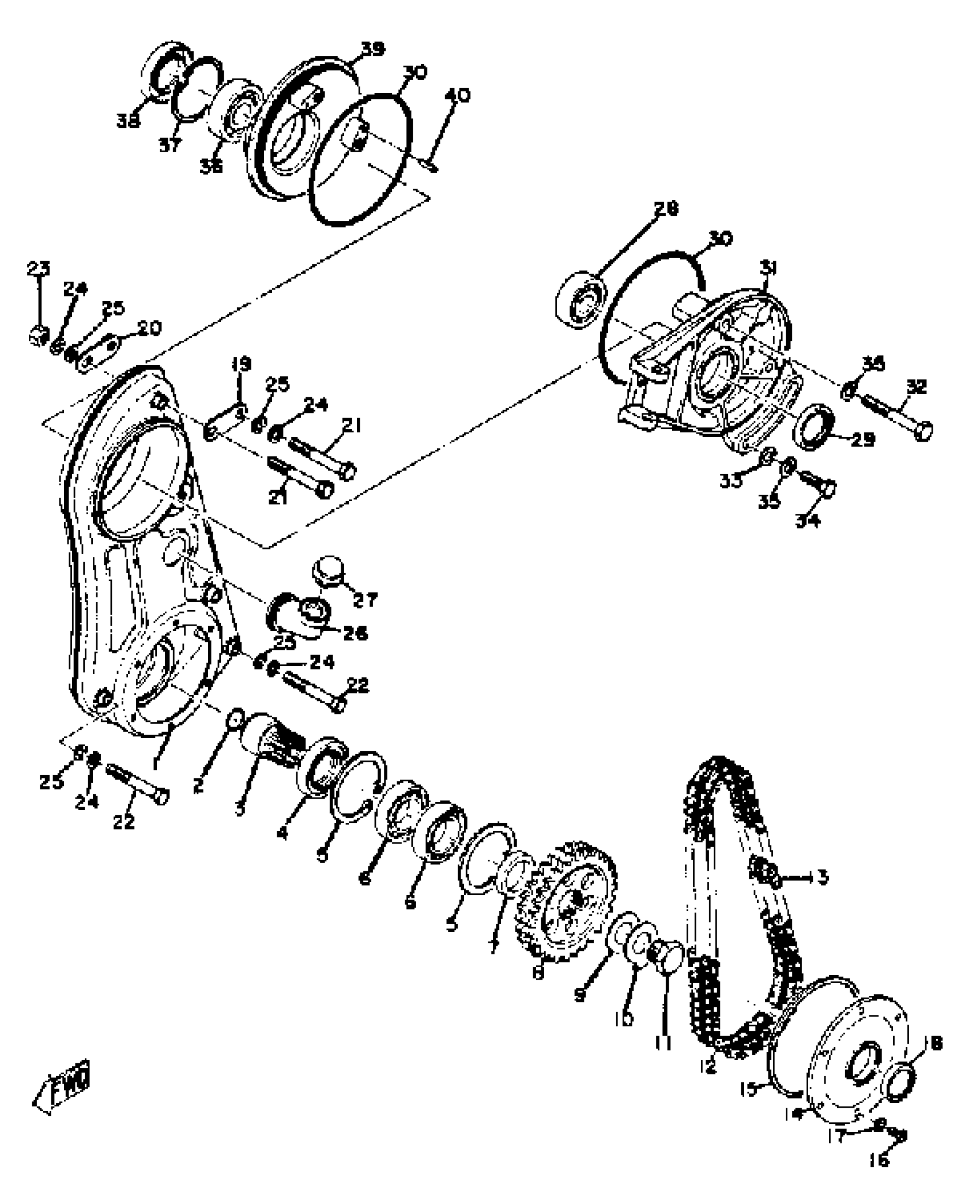

Yamaha SL338 1969 TRACK DRIVE Diagram
#
1
HOUSING, CHAIN
806-47541-00-00
Unavailable
2
O-RING (437)
93210-24235-00
$7.49
3
JOURNAL 1
(806-47571-00-00)
Unavailable
4
OIL SEAL, SWO-TYPE
(93110-40001-00)
Unavailable
5
CIRCLIP(MF1)
99009-62500-00
$8.49
6
BEARING, CYLINDER.#16
(93316-00701-00)
Unavailable
7
COLLAR
90387-35205-00
Unavailable
8
SPROCKET, CHN DRVN
(802-47548-40-00)
Unavailable
9
WASHER
(802-47555-00-00)
Unavailable
10
WASHER, LOCK
(802-47554-10-00)
Unavailable
11
BOLT (802-47553-00)
90109-24202-00
Unavailable
12
CHAIN (DK425-2 62L)
94804-25062-00
Unavailable
13
. JOINT CHAIN
94904-25001-00
Unavailable
14
CAP, HOUSING
(806-47543-00-00)
Unavailable
15
RING, HOUSING
(806-47558-00-00)
Unavailable
16
SCREW
90143-05004-00
Unavailable
17
WASHER, SEAL
90210-05005-00
Unavailable
18
LEVEL, OIL
802-47546-01-00
Unavailable
19
STAY 1
(802-47565-00-00)
Unavailable
20
STAY 2
(802-47566-00-00)
Unavailable
21
BOLT, HEXAGON (ISO) (97206-08070)
97306-08070-00
Unavailable
22
BOLT(6TC)
97027-08070-00
Unavailable
23
NUT(6TA)
95337-08600-00
Unavailable
24
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
25
WASHER, PLAIN
92990-08200-00
Unavailable
26
FILLER, OIL
(801-47547-00-00)
Unavailable
27
BREATHER
(204-15371-00-00)
Unavailable
28
BRG,R-B 6303 47MM 115G NK
93306-30302-00
Unavailable
29
OIL SEAL(7EG)
93102-25360-00
Unavailable
30
O-RING
93211-13109-00
Unavailable
31
HOUSING, SEC SHAFT
(806-47561-00-00)
Unavailable
32
BOLT
97021-08065-00
Unavailable
33
WASHER, PLAIN
92990-08200-00
Unavailable
34
BOLT (682)
97013-08025-00
Unavailable
35
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
36
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
37
CIRCLIP(26H)
99009-52500-00
Unavailable
38
OIL SEAL(3BC)
93106-30029-00
Unavailable
39
HOUSING, SEC SHAFT
(806-47562-00-00)
Unavailable
40
PIN, DOWEL(4SS)
93604-18251-00
Unavailable
