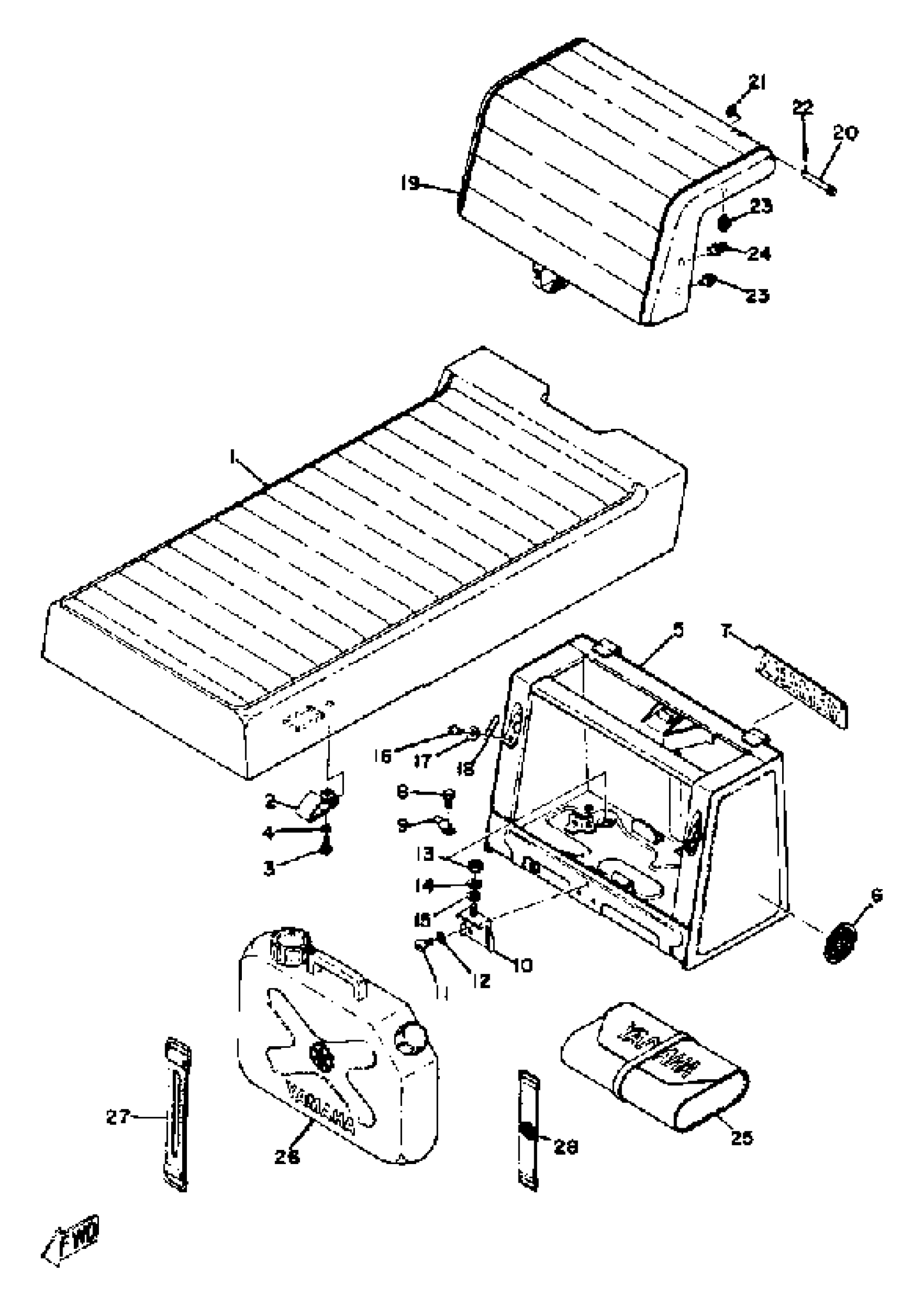

Yamaha SL338 1969 SEAT & LUGGAGE BOX Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

(806-24730-00-00)

Unavailable

1

. COVER, DOUBLE SEAT

806-24731-00-00

Unavailable

2

PLATE, SEAT FITTING

(807-24744-00-00)

Unavailable

3

SCREW, PAN

98507-06014-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

LUGGAGE BOX

(806-77391-00-00)

Unavailable

6

EMBLEM 2

806-77352-00-00

Unavailable

7

EMBLEM 3

806-77353-00-00

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, LOCK

(806-77396-00-00)

Unavailable

10

BRACKET, SEAT

(807-24738-00-00)

Unavailable

11

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

WASHER, PLAIN

92990-08200-00

Unavailable

16

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

17

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

18

SPRING, SEAT BACK

(806-24794-01-00)

Unavailable

19

SEAT BACK ASSEMBLY

(806-24790-00-00)

Unavailable

20

PIN, CLEVIS

91701-05055-00

Unavailable

21

. WASHER, PLAIN

92990-05200-00

Unavailable

22

PIN, COTTER

91490-16020-00

Unavailable

23

STOPPER, CUSHION

(806-24714-00-00)

Unavailable

24

PIN

(806-24793-01-00)

Unavailable

25

TOOL KIT

(806-28100-00-00)

Unavailable

26

FUEL TANK ASSEMBLY

(806-24200-00-00)

Unavailable

27

BAND, TANK FITTING

(806-24282-00-00)

Unavailable

28

BAND, BATTERY

26L-82131-00-00

Unavailable
