1969 Yamaha SL338 Frame Diagram

← All diagrams

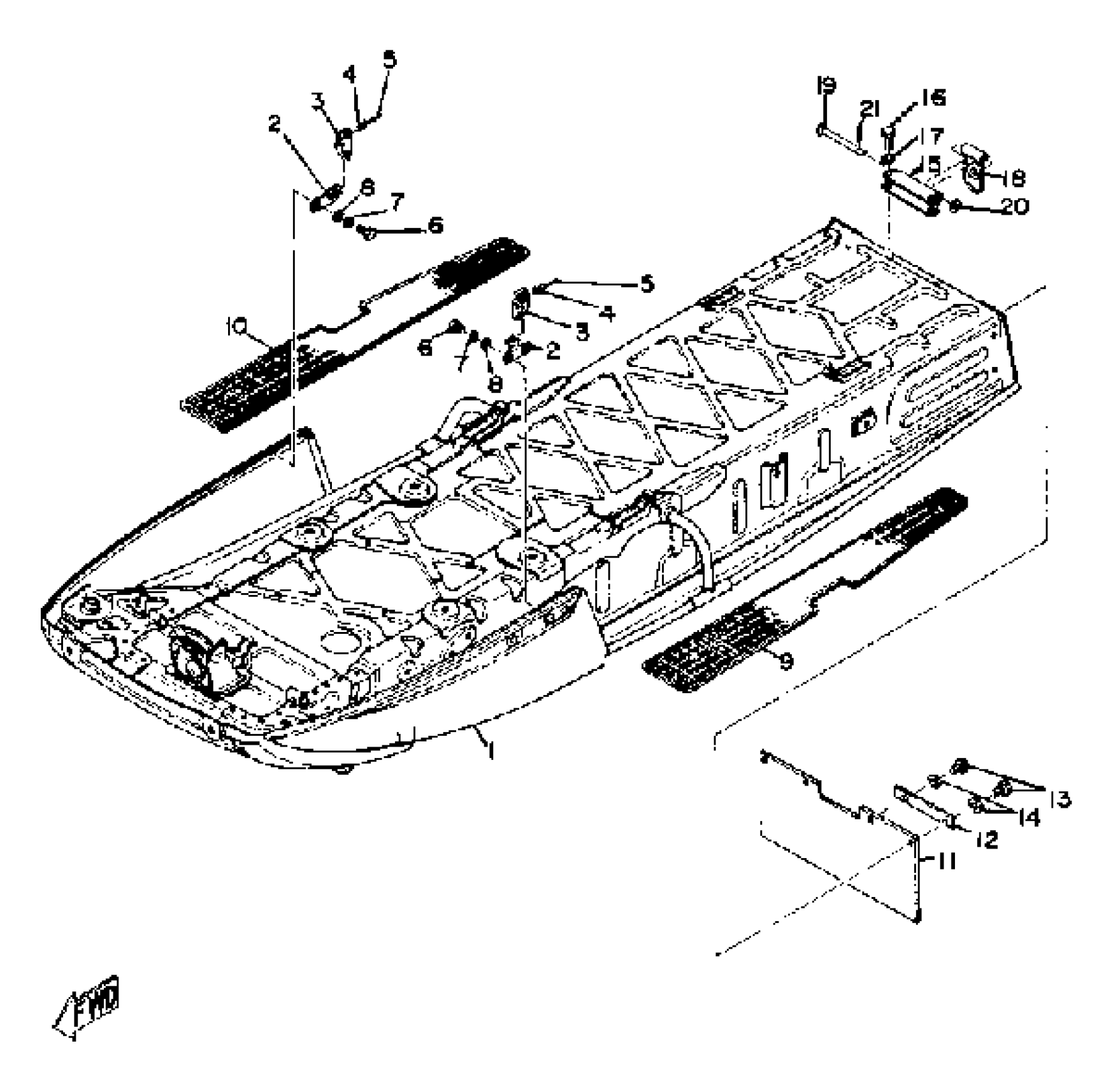

Find the part on the Frame diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL338 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(806-21910-00-00)

1
Out of stock

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

(97306-05015-00)

1
Out of stock

7

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

FLAP

(802-77595-02-00)

1
Out of stock

12

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

BRACKET, HITCH 2

(802-77592-00-00)

1
Out of stock

16

BOLT (682)

97095-06040-00

—

$2.36

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

19

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

PIN, COTTER

91490-25020-00

—

$2.94

In stock
