1969 Yamaha SL338 Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1969 Yamaha SL338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

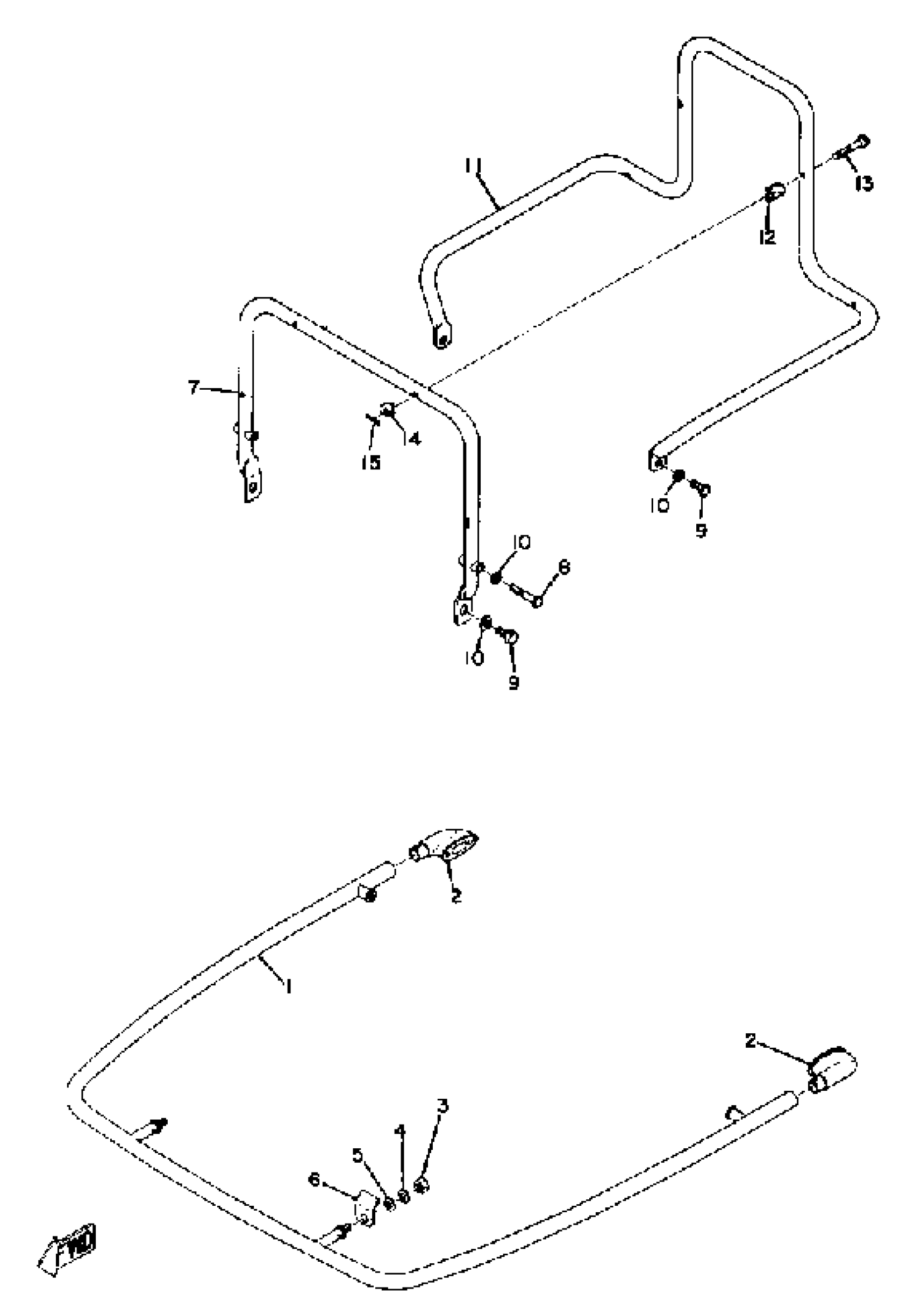

1969 Yamaha SL338 Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER (806-77510-00)

821-77510-00-00

1
Out of stock

2

END, BUMPER

(806-77523-00-00)

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

BRACKET, FUEL TNK 1

(806-24191-00-00)

1
Out of stock

7

BUMPER, REAR 1

(806-77541-00-00)

1
Out of stock

8

BOLT

97013-08045-00

—
Out of stock

9

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

GRIP, ASSIST 1

(806-77571-00-00)

1
Out of stock

12

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

13

SCREW, SPEC''L SHAPE

(90149-06052-00)

1
Out of stock

14

NUT, SPECIAL

806-77573-00-00

1
Out of stock

15

PIN, COTTER

91490-16020-00

1

$6.23

In stock
