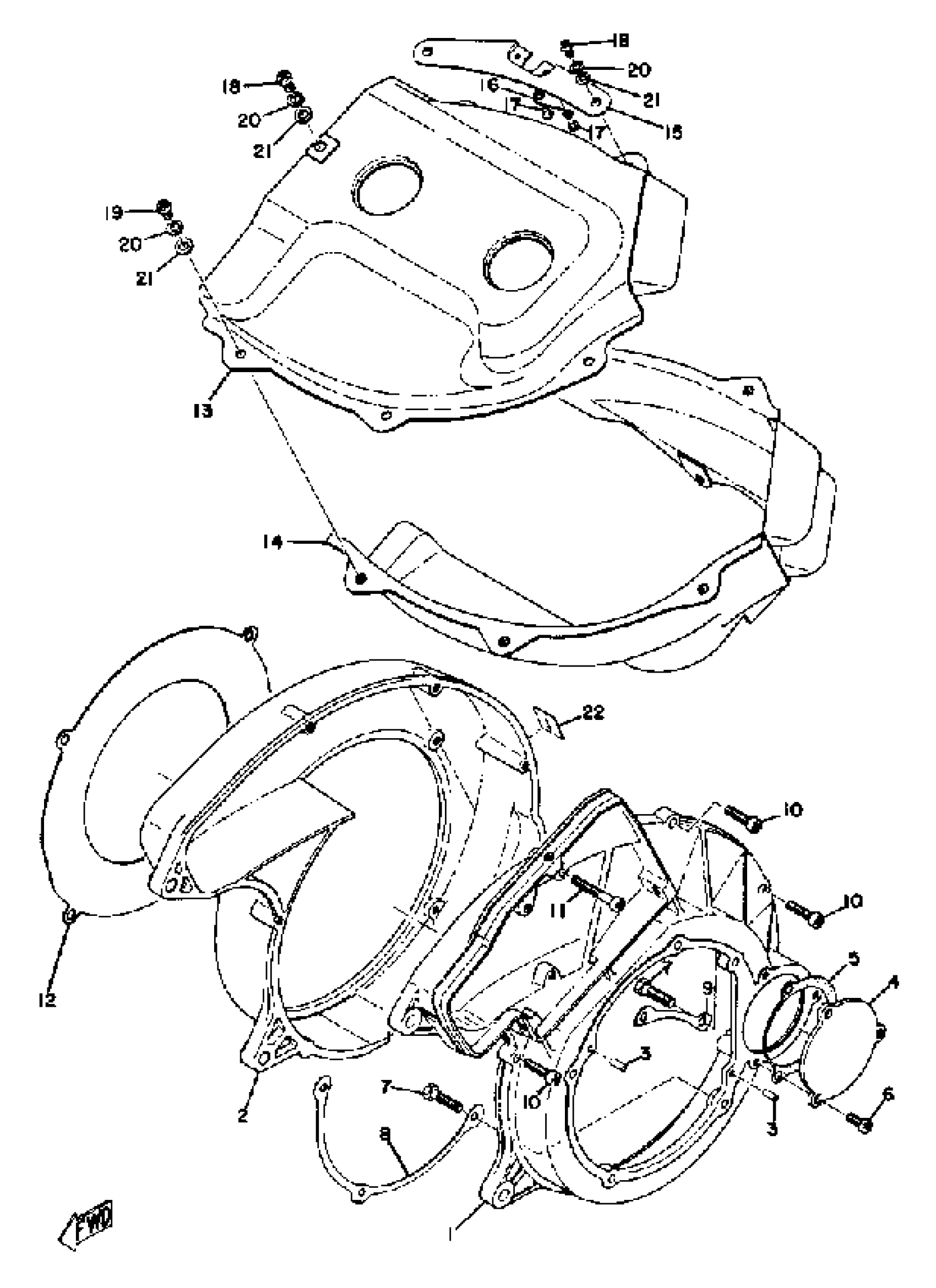

Yamaha SL338 1969 FAN CASE & AIR SHROUD Diagram

#

Description
Price

1

CASE, FAN

(807-12621-00-00)

Unavailable

2

CASE, FAN 2

(807-12622-00-00)

Unavailable

3

PIN,DOWEL (137)

93604-14012-00

$1.81

4

PLATE

(807-12633-00-00)

Unavailable

5

GASKET

(807-12663-00-00)

Unavailable

6

SCREW, BIND

98903-05016-00

Unavailable

7

BOLT

(807-12623-00-00)

Unavailable

8

WASHER, LOCK 1

(807-12624-00-00)

Unavailable

9

WASHER, LOCK 2

(807-12625-00-00)

Unavailable

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

SCREW PAN HEAD

98580-06040-00

$8.49

12

DEFLECTOR 1

(807-12631-00-00)

Unavailable

13

AIR SHROUD, CYLINDER 1

(806-12651-00-00)

Unavailable

14

AIR SHROUD, CYLINDER 2

(806-12652-00-00)

Unavailable

15

BRACKET 2

(806-77422-01-00)

Unavailable

16

SPRING

(615-42754-00-00)

Unavailable

17

RIVET, ROUND HEAD

(90260-02003-00)

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

INDICATOR, CHOKE

(806-77455-00-00)

Unavailable
