ENGINE BRACKET

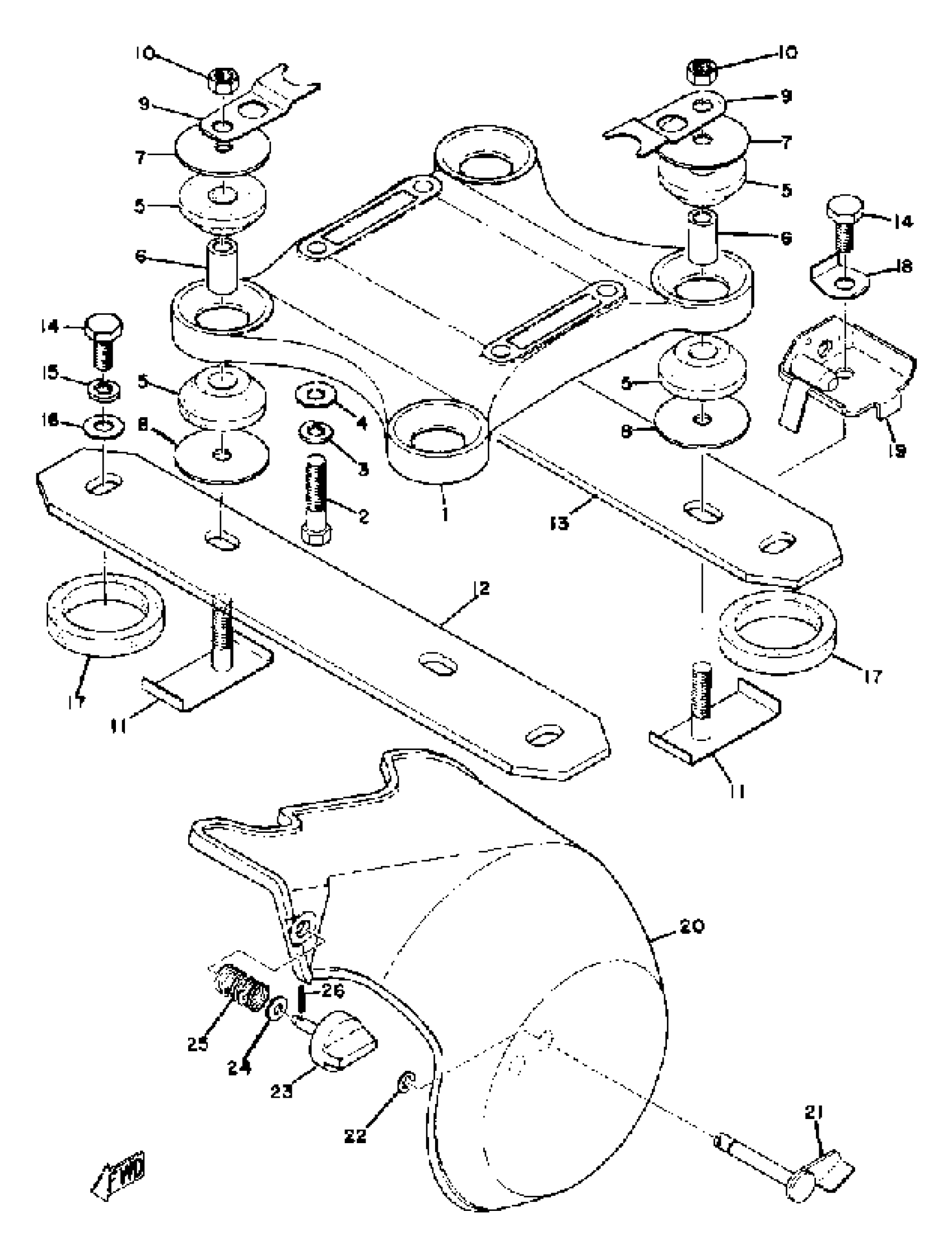

Yamaha SL338 1969 ENGINE BRACKET Diagram
#
Description
Price
1
BRACKET, ENGINE 1
(807-21411-00-00)
Unavailable
2
BOLT,HEXAGON(676)
97013-10050-00
Unavailable
3
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
4
958-69527-00 WASHER, PLAIN
92990-10200-00
$3.72
5
DAMPER, ENG MOUNT 1
807-15316-00-00
Unavailable
6
SPACER
90560-10020-00
Unavailable
7
WASHER, LOCK
(807-21491-00-00)
Unavailable
8
WASHER, PLATE (807-21492-00)
90201-10152-00
Unavailable
9
WASHER, LOCK
(90215-10074-00)
Unavailable
10
NUT (682)
95380-10700-00
Unavailable
11
BOLT, ENG MNTNG 2
(807-21482-00-00)
Unavailable
12
BRACKET, ENGINE 2
(806-21419-00-00)
Unavailable
13
BRACKET, ENGINE 3
(806-21429-00-00)
Unavailable
14
BOLT
90101-10055-00
Unavailable
15
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
16
958-69527-00 WASHER, PLAIN
92990-10200-00
$3.72
17
DAMPER, RUBBER 1
806-21485-00-00
Unavailable
18
WASHER, LOCK
(806-21491-00-00)
Unavailable
19
BRACKET 1
(806-77315-00-00)
Unavailable
20
GUARD, DRIVE
(806-77311-00-00)
Unavailable
21
ARM, FITTING
806-77314-00-00
Unavailable
22
CIRCLIP(53L)
99001-06600-00
Unavailable
23
KNOB
(806-77324-00-00)
Unavailable
24
WASHER 2
(802-77179-00-00)
Unavailable
25
SPRING 1
806-77325-00-00
Unavailable
26
PIN, SPRING
91690-25016-00
Unavailable
