1971 Yamaha SL292 Steering SL292 - B Diagram

← All diagrams

Find the part on the Steering SL292 - B diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

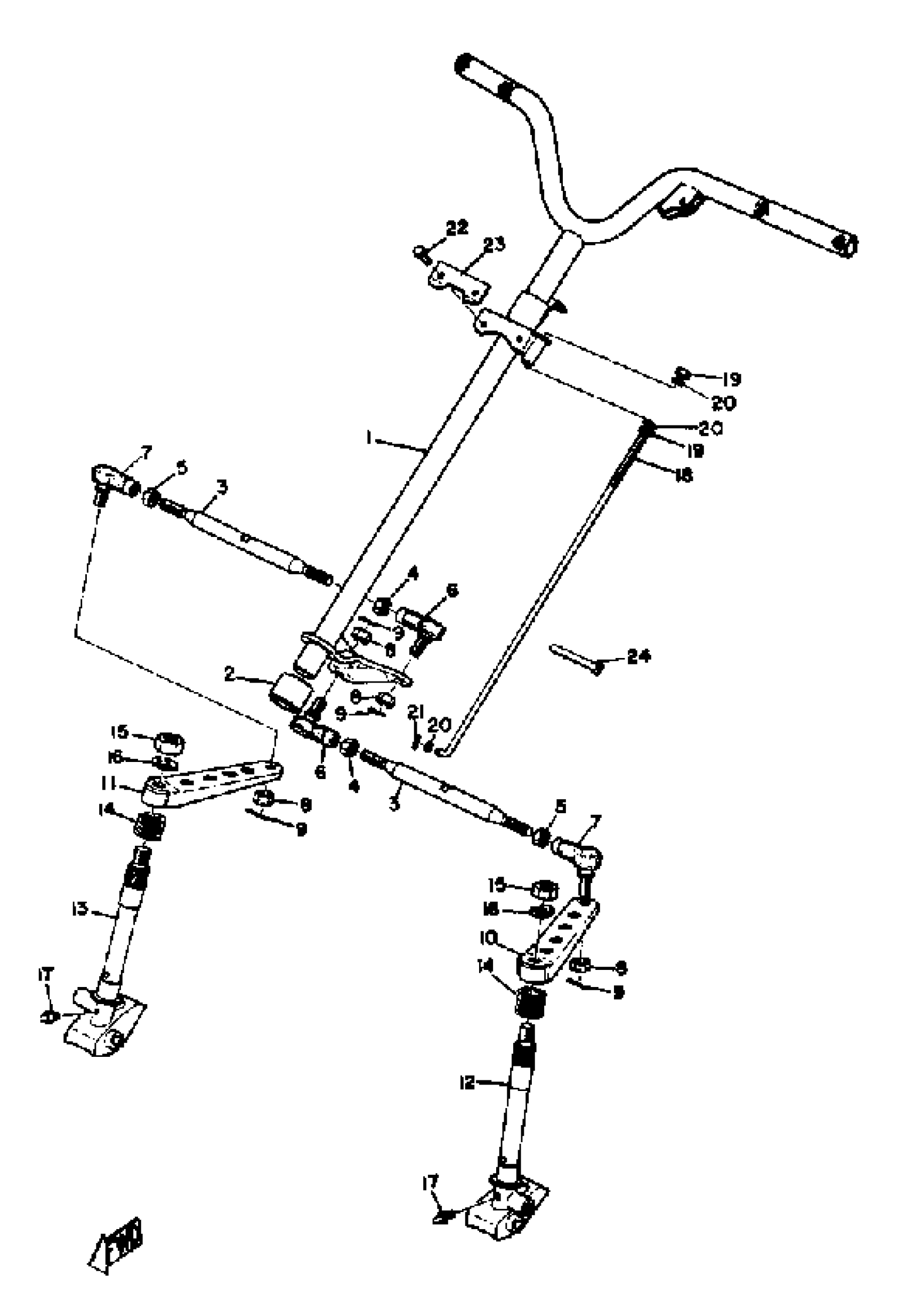

1971 Yamaha SL292 Steering SL292 - B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(810-23811-00-00)

1
Out of stock

1

COLUMN, STEERING

(822-23811-00-00)

1
Out of stock

2

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

3

ROD, STEERING RELAY

810-23821-01-00

1
Out of stock

4

. NUT, HEXAGON (802-23833-00)

90170-10082-00

1
Out of stock

5

NUT, HEXAGON

(90170-10135-00)

1
Out of stock

6

JOINT, UNIVERSAL 1

(806-23841-91-00)

1
Out of stock

7

JOINT, UNIVERSAL 2

806-23845-91-00

1
Out of stock

8

NUT, CASTLE

90171-10002-00

1
Out of stock

9

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

10

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

11

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

12

COLUMN, SKI 1

(806-23853-00-00)

1
Out of stock

12

COLUMN, SKI 1

810-23853-00-00

1
Out of stock

13

COLUMN, SKI 2

(806-23854-00-00)

1
Out of stock

13

COLUMN, SKI 2

810-23854-00-00

1
Out of stock

14

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

15

NUT, HEXAGON

95337-12600-00

—
Out of stock

16

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

17

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

18

BAR, TENSION

(810-23861-00-00)

1
Out of stock

19

NUT(JN5)

95317-06700-00

—

$6.69

In stock

20

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

21

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

22

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

23

WASHER, LOCK 1

(810-23894-00-00)

1
Out of stock

24

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
