1971 Yamaha SL292 Steering Gate SL292C Diagram

← All diagrams

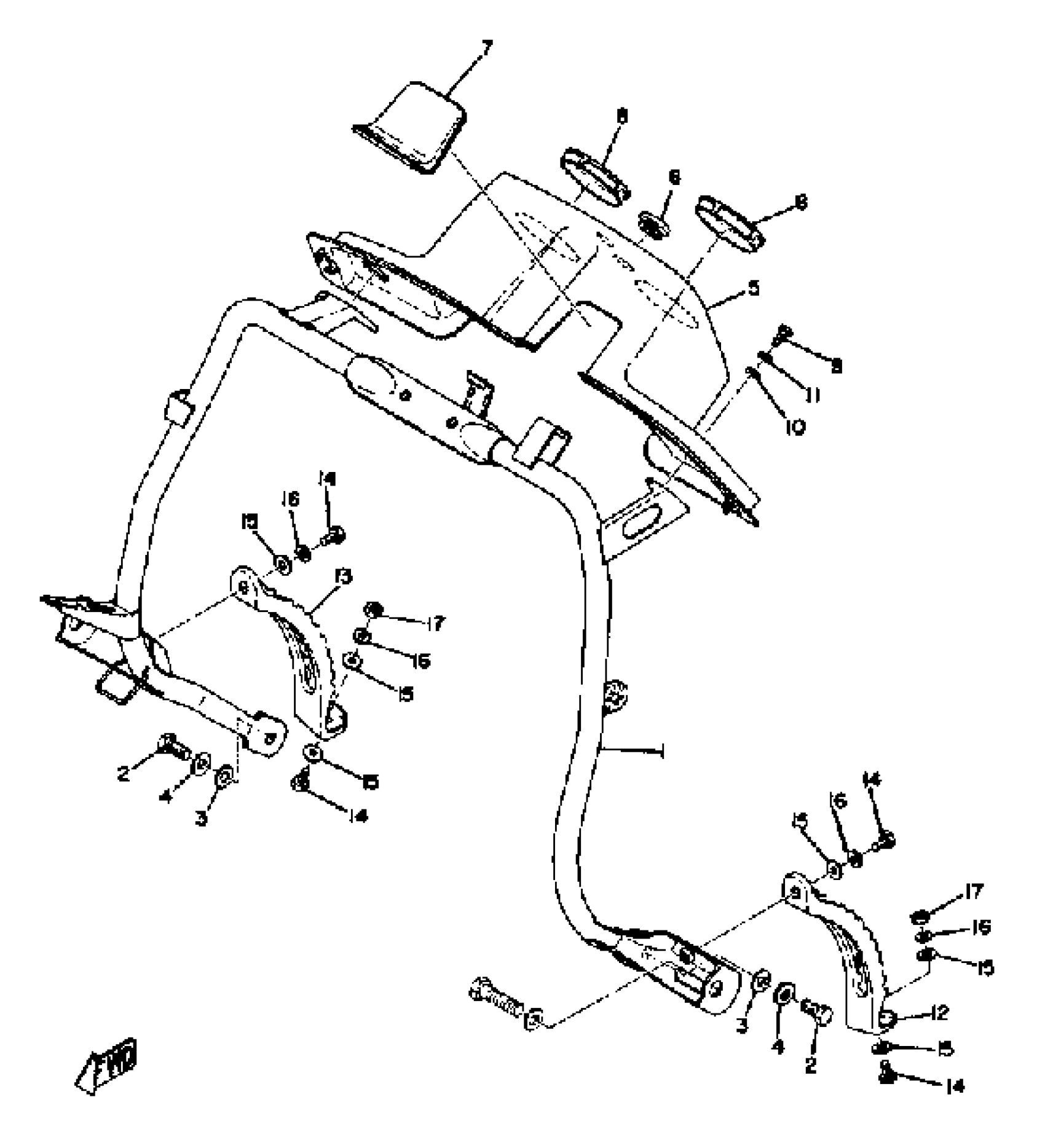

Find the part on the Steering Gate SL292C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Steering Gate SL292C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(839-23870-01-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, LOCK

(90215-08066-00)

1
Out of stock

4

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

5

PANEL, INSTRUMENT

(839-77711-00-00)

1
Out of stock

6

GROMMET

(841-77746-00-00)

1
Out of stock

7

GROMMET

(839-77746-00-00)

1
Out of stock

8

ORMNT, INSTR PNL 1

841-77715-00-00

1
Out of stock

9

BOLT, HEXAGON

(97306-05012-00)

1
Out of stock

10

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

11

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

12

FOOTREST 1

(841-27411-00-00)

1
Out of stock

13

FOOTREST 2

(841-27421-00-00)

1
Out of stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
