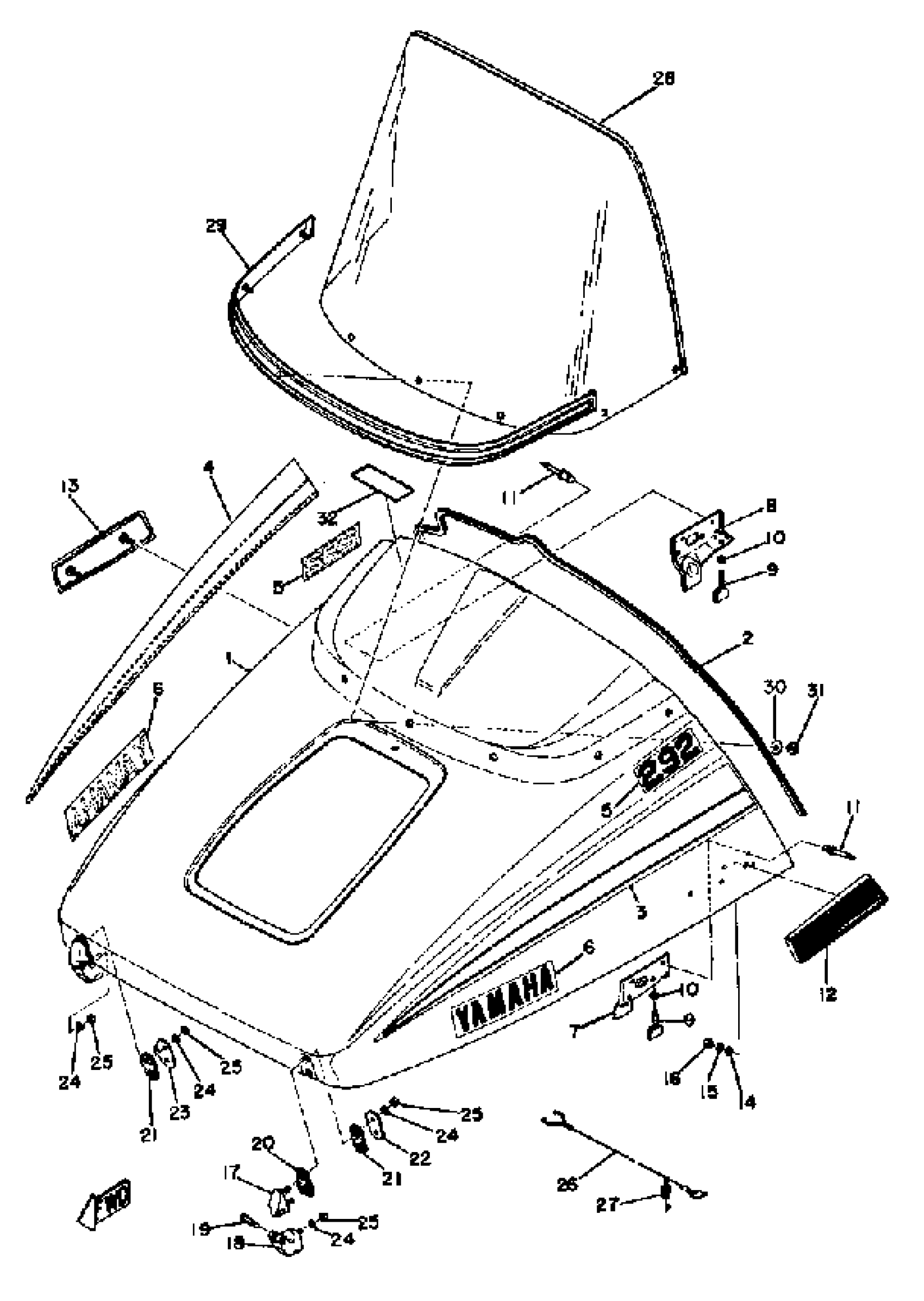

Yamaha SL292 1971 SHOURD SL292C Diagram

#

Description
Price

1

SHROUD

841-77111-00-00

Unavailable

2

TRIM 2

(841-77166-00-00)

Unavailable

3

ORNAMENT 1

841-77163-00-00

Unavailable

4

ORNAMENT 2

(841-77164-00-00)

Unavailable

5

EMBLEM 6

(839-77356-00-00)

Unavailable

6

EMBLEM 7

(838-77357-00-00)

Unavailable

7

CLAMP 2

(841-77136-00-00)

Unavailable

8

CLAMP 4

(841-77138-00-00)

Unavailable

9

BODY, LATCH 1

(841-77171-01-00)

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

RIVET, BLIND

90267-40936-00

Unavailable

12

LOUVER 1

(838-77131-00-00)

Unavailable

13

LOUVER 2

838-77132-00-00

Unavailable

14

. WASHER, PLAIN

92990-05200-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

HINGEASSEMBLY

(841-77140-00-00)

Unavailable

18

HINGE 3

(841-77147-00-00)

Unavailable

19

PIN

90243-05003-00

Unavailable

20

DAMPER 2

841-77199-00-00

Unavailable

21

DAMPER 1

(841-77198-00-00)

Unavailable

22

PLATE, BACK UP 1

(841-77153-00-00)

Unavailable

23

PLATE, BACK UP 2

(841-77154-00-00)

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

NUT, HEXAGON

95380-06600-00

Unavailable

26

STOPPER, SHROUD

841-77118-00-00

Unavailable

27

CLAMP,ROD

838-77159-00-00

Unavailable

28

WINDSHIELD

(841-77210-02-00)

Unavailable

29

TRIM LOWER ASSEMBLY

841-77220-00-00

Unavailable

30

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

31

NUT, NYLON

95707-05300-00

Unavailable

32

LABEL, SAFETY

288-21659-00-00

Unavailable
