PUMP GEAR UNIT SL292 - B - C

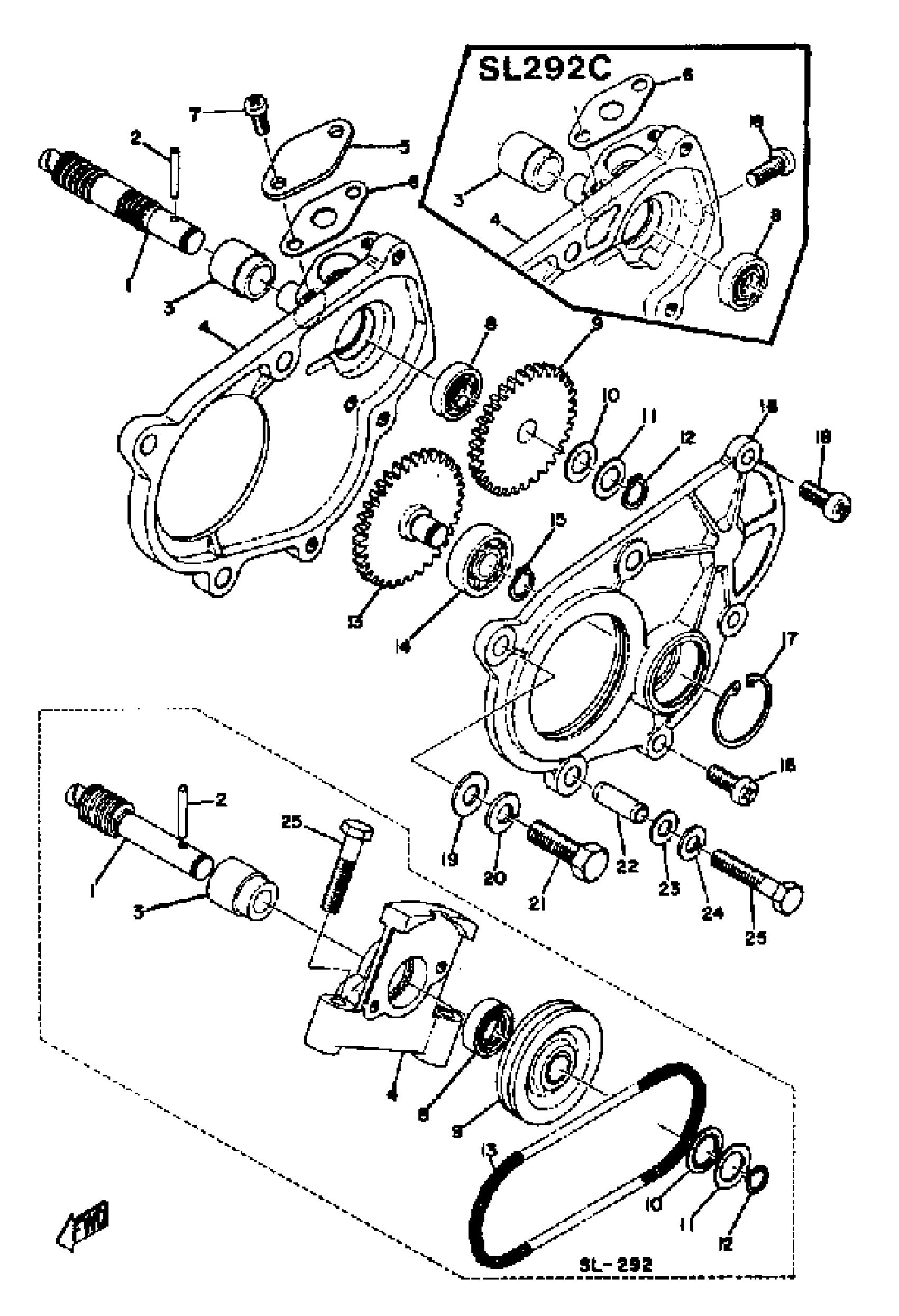

Yamaha SL292 1971 PUMP GEAR UNIT SL292 - B - C Diagram
#
1
SHAFT, WORM
(802-13175-00-00)
Unavailable
1
SHAFT, WORM
821-13175-00-00
Unavailable
1
SHAFT, WORM
826-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
BRACKET, PUMP 001
(812-13199-00-00)
Unavailable
4
COVER, OIL PUMP
(822-15416-01-00)
Unavailable
4
COVER, OIL PUMP
(839-15416-00-00)
Unavailable
5
CAP, HOUSING
824-17819-00-00
Unavailable
6
GASKET
821-17818-02-00
$6.99
7
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
8
OIL SEAL (10X22X7-137)
93101-10002-00
$8.49
8
OIL SEAL (J10)
93101-10090-00
$8.49
9
GEAR, PUMP DRIVE
(810-13178-00-00)
Unavailable
9
GEAR, DRIVE 2
821-13188-00-00
Unavailable
10
WASHER, WAVE (137)
90206-11016-00
Unavailable
11
PLATE, CAM THRUST
137-13148-00-00
Unavailable
12
CIRCLIP(10W)
99009-10400-00
Unavailable
12
CIRCLIP(10W)
99009-10400-00
Unavailable
13
BELT 001
(812-13189-01-00)
Unavailable
13
GEAR, IDLE
(821-13179-00-00)
Unavailable
14
BRG,R-B 6000RS 32MM 30G KY
93306-00002-00
Unavailable
15
CIRCLIP(10W)
99009-10400-00
Unavailable
16
COVER, OIL PUMP R
839-15426-00-00
Unavailable
17
CIRCLIP, R-TYPE (R-26)
93420-26024-00
Unavailable
18
SCREW, PAN
98507-06014-00
Unavailable
18
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
19
WASHER, PLAIN
92990-08200-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
BOLT (682)
97013-08025-00
Unavailable
21
BOLT, HEXAGON
97013-08030-00
Unavailable
22
PIN, DOWEL
91810-18022-00
Unavailable
23
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
BOLT(3RV)
97014-06035-00
Unavailable
26
BOLT, HEXAGON
97017-06025-00
Unavailable
26
BOLT (661)
97013-06012-00
Unavailable
