1971 Yamaha SL292 Intake SL292C Diagram

← All diagrams

Find the part on the Intake SL292C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

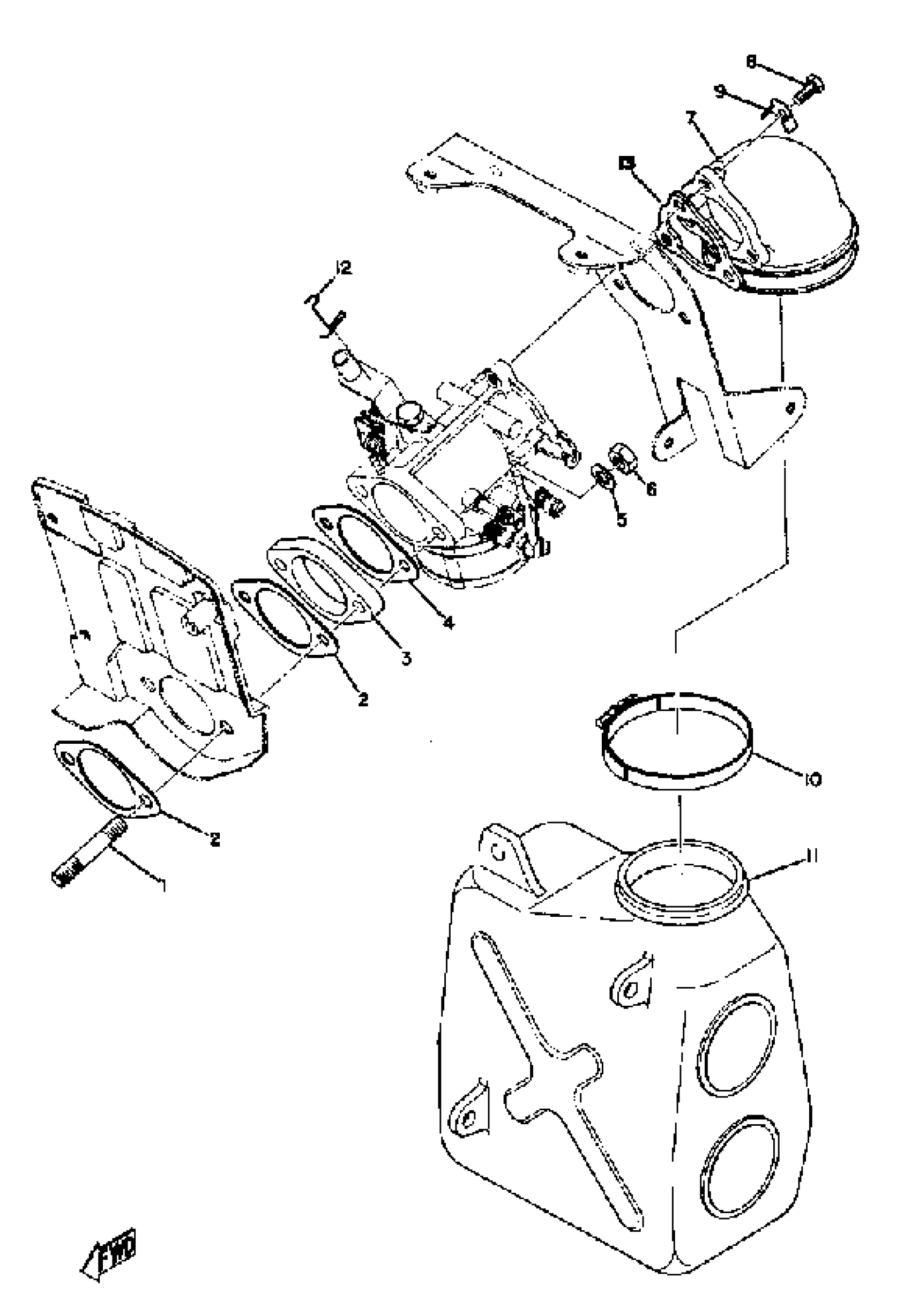

1971 Yamaha SL292 Intake SL292C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, STUD

(90116-08052-00)

1
Out of stock

2

GASKET, MANIFOLD

839-13556-09-00

1
Out of stock

3

MANIFOLD, INTAKE

(812-13555-00-00)

1
Out of stock

4

GASKET,MANIFOLD

881-13556-09-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

. NUT

95380-08700-00

1

$3.07

In stock

7

JOINT, AIR CLNR 1

(839-14453-01-00)

1
Out of stock

8

SCREW, HEXAGON

(90153-06006-00)

1
Out of stock

9

PLATE

(839-14477-00-00)

1
Out of stock

10

HOSE CLAMP ASSY

90450-75002-00

1

$10.40

In stock

11

SILENCER, INTAKE 2

(839-14441-01-00)

1
Out of stock

12

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

13

GASKET

(839-14483-00-00)

1
Out of stock
