1971 Yamaha SL292 Intake SL292 - B Diagram

← All diagrams

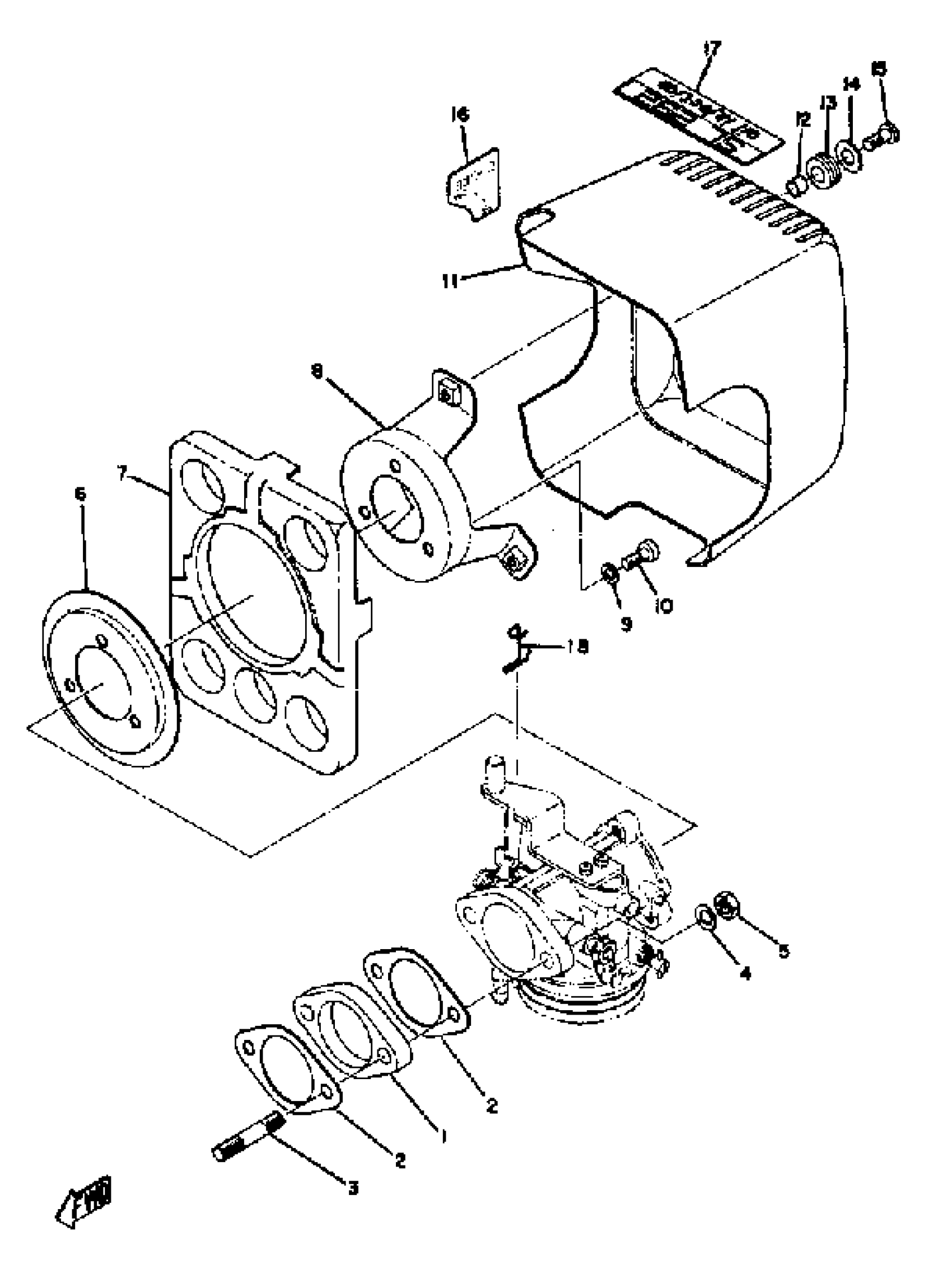

Find the part on the Intake SL292 - B diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Intake SL292 - B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

(812-13555-00-00)

1
Out of stock

2

GASKET,MANIFOLD

881-13556-09-00

1
Out of stock

3

BOLT, STUD

90116-08048-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

. NUT

95380-08700-00

1

$3.07

In stock

6

SPACER 001

(812-14442-00-00)

1
Out of stock

7

SILENCER, INTAKE 1

(812-14431-00-00)

1
Out of stock

8

STAY 1

(812-14493-00-00)

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

SILENCER, INTAKE 2

(812-14441-00-00)

1
Out of stock

11

SILENCER, INTAKE 2

822-14441-00-00

1
Out of stock

12

COLLAR 8121444900

90387-06023-00

1

$7.66

In stock

13

GROMMET

(90480-13015-00)

1
Out of stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

14

WASHER, PLATE

90201-06061-00

1
Out of stock

15

SCREW, BINDING

98907-06016-00

—

$7.14

In stock

16

INDICATOR, CHOKE

(810-77455-00-00)

1
Out of stock

17

EMBLEM 1 001

(812-77451-00-00)

1
Out of stock

17

EMBLEM 1

(822-77451-00-00)

1
Out of stock

18

CLAMP, THROTTLE

(833-41222-00-00)

1
Out of stock
