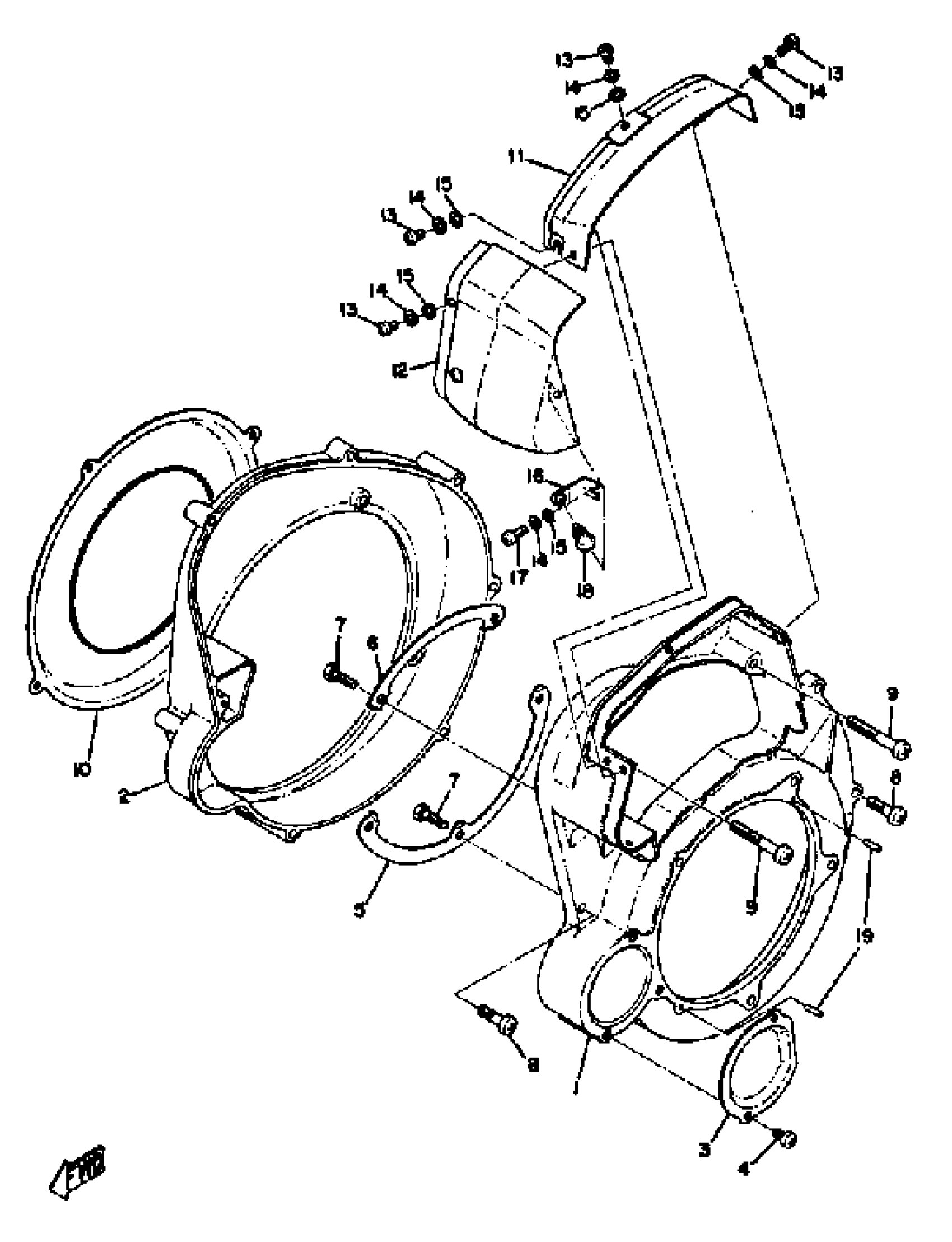

Yamaha SL292 1971 FAN CASE - AIR SHROUD SL292 - B Diagram

#

Description
Price

1

CASE, FAN 001

(812-12621-00-00)

Unavailable

2

CASE, FAN 2 001

(812-12622-00-00)

Unavailable

2

CASE, FAN 2

867-12622-00-00

Unavailable

3

PLATE

(812-12633-00-00)

Unavailable

4

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

5

WASHER, LOCK 1

(812-12624-00-00)

Unavailable

6

WASHER, LOCK 2

(812-12625-00-00)

Unavailable

7

BOLT, WASHER BASED

(90105-06001-00)

Unavailable

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

SCREW, PAN

98507-06050-00

$3.28

9

SCREW PAN HEAD

98580-06550-00

$8.49

10

DEFLECTOR 1 001

(812-12631-00-00)

Unavailable

11

AIR SHROUD, CYLINDER 1

(839-12651-00-00)

Unavailable

12

AIR SHROUD, CYLINDER 2 001

(812-12652-00-00)

Unavailable

13

SCREW, BIND

98903-05010-00

Unavailable

13

SCREW, BINDING

98907-05012-00

Unavailable

14

WASHER(3SX)

92907-05100-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

15

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

15

. WASHER, PLAIN

92990-05200-00

Unavailable

16

STAY, CLAMP 1 001

(812-12655-00-00)

Unavailable

16

STAY, CLAMP 1

(822-12655-00-00)

Unavailable

17

SCREW, BIND

98903-05010-00

Unavailable

17

SCREW, BINDING

98907-05010-00

Unavailable

18

DAMPER, AIR SHRD 1

(812-12658-00-00)

Unavailable

19

PIN,DOWEL (137)

93604-14012-00

Unavailable
