CRANK - PISTON SL292 - B - C

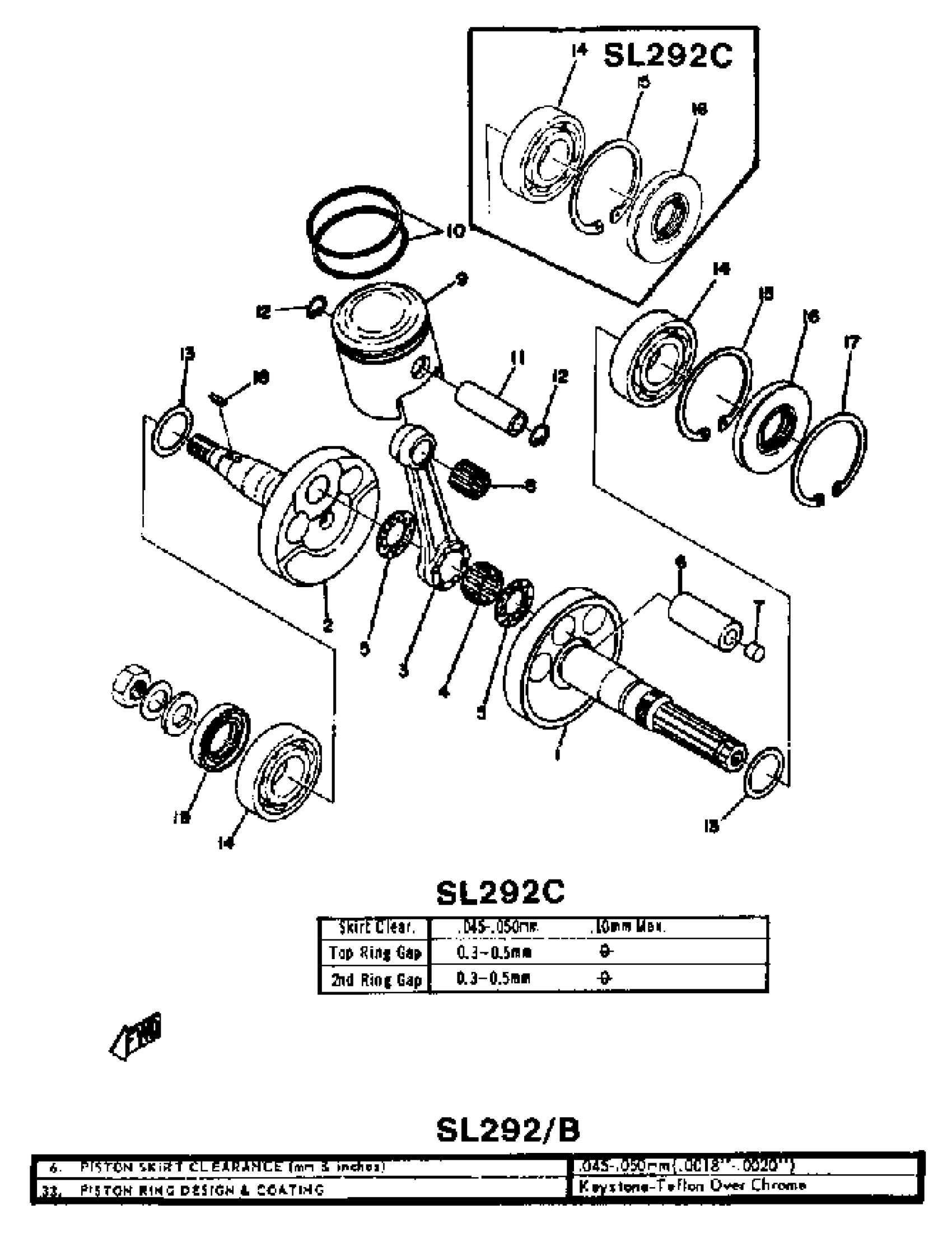

Yamaha SL292 1971 CRANK - PISTON SL292 - B - C Diagram
#
1
CRANKSHAFT ASSEMBLY 001
812-11400-60-00
Unavailable
1
CRANK 1
(812-11412-00-00)
Unavailable
1
CRANKSHAFT ASSEMBLY
(822-11400-00-00)
Unavailable
1
CRANKSHAFT ASSEMBLY
(839-11400-00-00)
Unavailable
1
CRANK 1
(839-11412-00-00)
Unavailable
2
CRANK 2
(812-11422-00-00)
Unavailable
3
ROD, CONNECTING
(812-11651-00-00)
Unavailable
4
BEARING
93310-424E8-00
Unavailable
5
WASHER (152-11685-00)
90209-24073-00
$14.99
6
. PIN, CRANK 1
168-11681-00-00
Unavailable
6
PIN, CRANK 1
(822-11681-00-00)
Unavailable
7
BUSH, CRANK PIN
(822-11682-00-00)
Unavailable
8
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
9
PISTON STD (.96 STD)
812-11631-00-96
Unavailable
9
PISTON 1 O/S 0.25 (0.25 1ST O.S)
812-11635-00-00
Unavailable
9
PISTON 2 O/S 0.50 (0.50 2ND O.S)
812-11636-00-00
Unavailable
9
PISTON STD
839-11631-00-96
Unavailable
9
PISTON 1 O/S 0.25
839-11635-00-00
Unavailable
9
PISTON 2 O/S 0.50
839-11636-00-00
Unavailable
9
PISTON 3 O/S 0.75
(839-11637-00-00)
Unavailable
9
PISTON 4 O/S 1.00
(839-11638-00-00)
Unavailable
10
PISTON RINGSET STD (STD)
812-11601-00-00
Unavailable
10
PISTON RINGSET 1ST (1ST O.S)
812-11601-10-00
Unavailable
10
PISTON RINGSET 2ND (2ND O.S)
812-11601-20-00
Unavailable
10
PISTON RINGSET STD
839-11610-00-00
Unavailable
10
PISTON RINGSET 1ST
839-11610-10-00
Unavailable
10
PISTON RINGSET 2ND
839-11610-20-00
Unavailable
10
PISTON RINGSET 3RD
(839-11610-30-00)
Unavailable
10
PISTON RINGSET 4TH
839-11610-40-00
Unavailable
11
PIN, PISTON
214-11633-00-00
Unavailable
12
CLIP 6041163400
93450-20026-00
Unavailable
13
SHIM, CRANK 1
(812-11561-00-02)
Unavailable
13
SHIM, CRANK 1
(812-11561-00-03)
Unavailable
14
BEARING(4GB)
93306-30629-00
Unavailable
15
CIRCLIP, R-TYPE
(93420-72023-00)
Unavailable
16
OIL SEAL, SW-TYPE
93103-32060-00
Unavailable
17
CIRCLIP, R-TYPE
(93420-72023-00)
Unavailable
18
KEY, WOODRUFF
90280-05001-00
Unavailable
19
OIL SEAL, SW-TYPE
93103-32061-00
Unavailable
