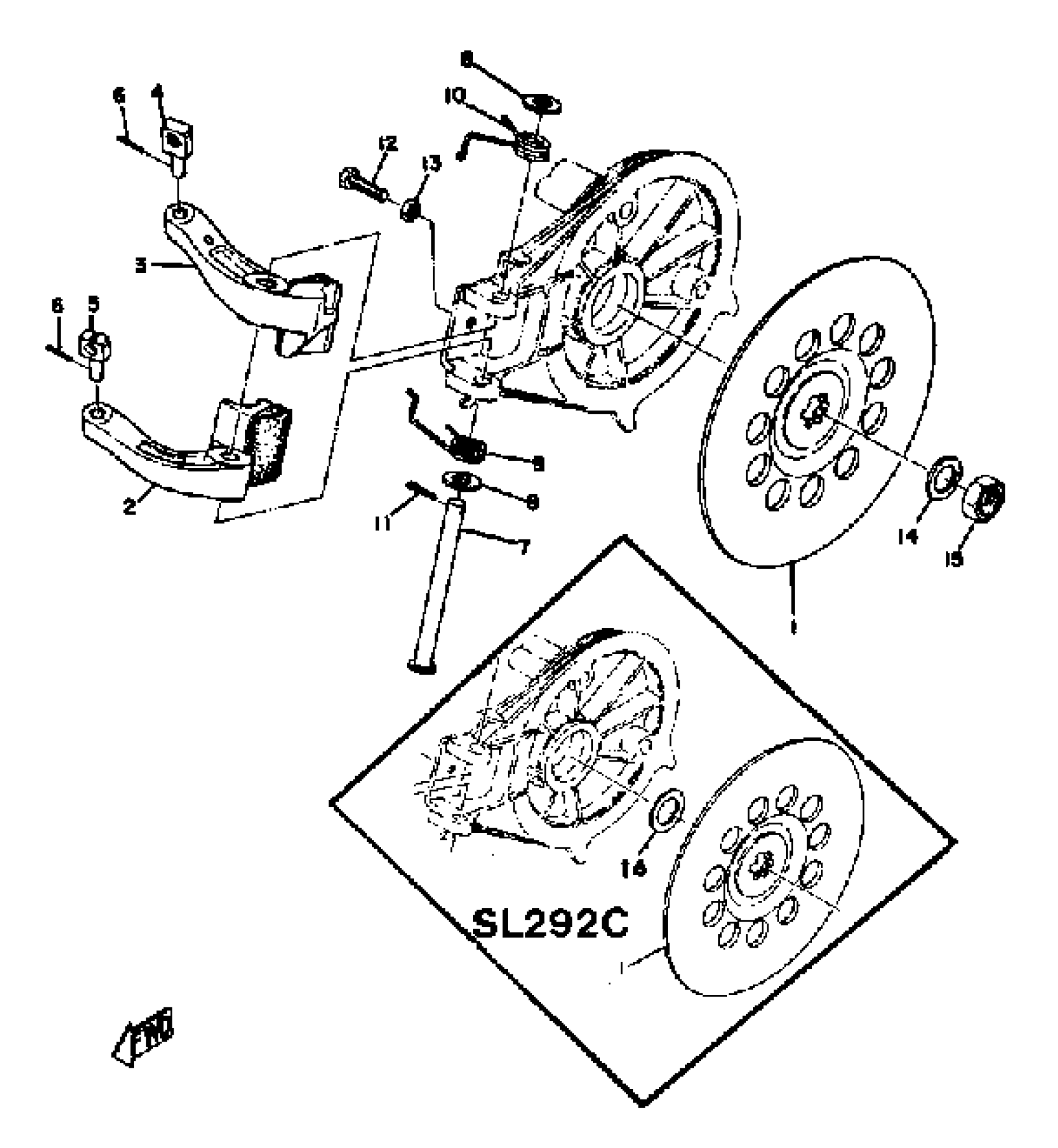

Yamaha SL292 1971 BRAKE SL292 - B - C Diagram

#

Description
Price

1

DISC, BRAKE

810-25711-00-00

Unavailable

2

CALIPER BODY 1

821-25730-00-00

Unavailable

3

CALIPER BODY 2

821-25740-00-00

Unavailable

4

PIN (810)

90249-06012-00

Unavailable

5

PIN

90249-06009-00

Unavailable

6

PIN, COTTER

91490-20025-00

$1.99

7

PIN, CLEVIS

(90240-08022-00)

Unavailable

7

PIN, W/ HOLE (8J2)

90240-08068-00

Unavailable

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

SPRING, RETURN 1

(810-25735-00-00)

Unavailable

10

SPRING, RETURN 2

(810-25745-00-00)

Unavailable

11

PIN, COTTER

91490-20025-00

$1.99

12

BOLT HEXAGON

97001-05018-00

Unavailable

12

BOLT(3JK)

97027-05020-00

$3.29

13

NUT, HEXAGON SMALL

95317-05700-00

$8.49

14

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

15

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

16

SHIM 1

150-17417-00-02

Unavailable

16

SHIM 1

(150-17417-00-03)

Unavailable

16

SHIM 1

(150-17417-00-05)

Unavailable
