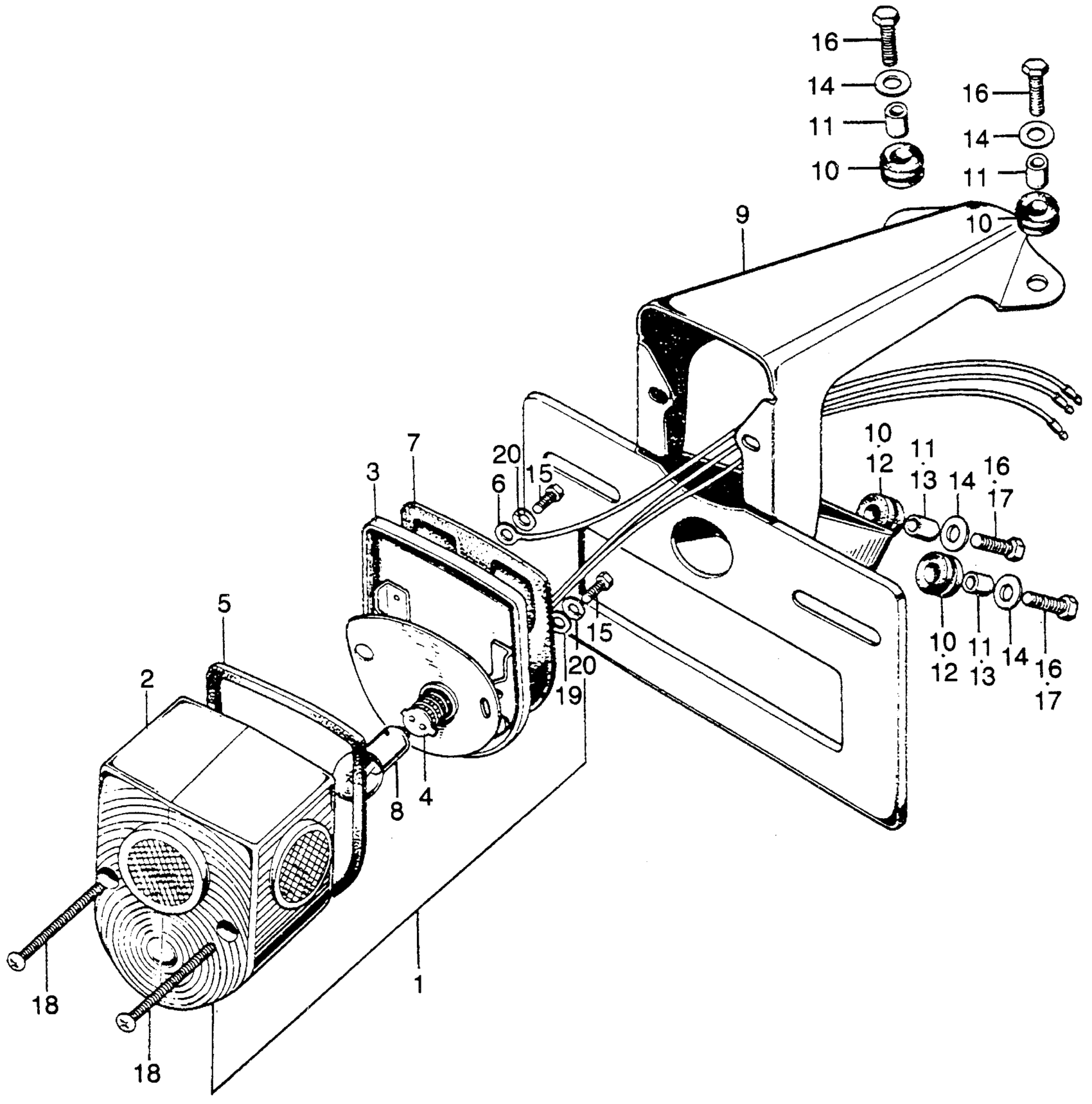

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 TAILLIGHT + LICENSE PLATE BRACKET Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-313-671

Unavailable

2

LENS, TAILLIGHT

33702-074-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-074-671

Unavailable

4

CABLE, TAILLIGHT (NOT AVAILABLE)

33708-313-671

Unavailable

5

GASKET, TAILLIGHT LENS

33709-074-671

$2.08

6

CABLE, TAILLIGHT GROUND (NOT AVAILABLE)

33712-313-010

Unavailable

7

GASKET, TAILLIGHT BASE

33719-074-670

Unavailable

8

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

8

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

9

BRACKET, LICENSE PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-313-673XW

Unavailable

10

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

11

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

12

RUBBER, BRACKET

84905-118-000

$3.92

13

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

14

WASHER (18MM) | Use up to Frame SN 2016510

90581-831-650

$1.87

14

WASHER B, HANDLE HOLDER SETTING | Use from Frame SN 2016511

90525-030-000

$1.75

15

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

15

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

15

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

16

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

17

BOLT, HEX. (6X25) This part replaces 92000-06025-02.

92101-06025-0B

$2.28

17

BOLT, HEX. (6X25)

92101-06025-0B

$2.28

18

SCREW, PAN (4X50)

93500-04050-0B

$1.49

19

WASHER, PLAIN (5MM)

94101-05000

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49
