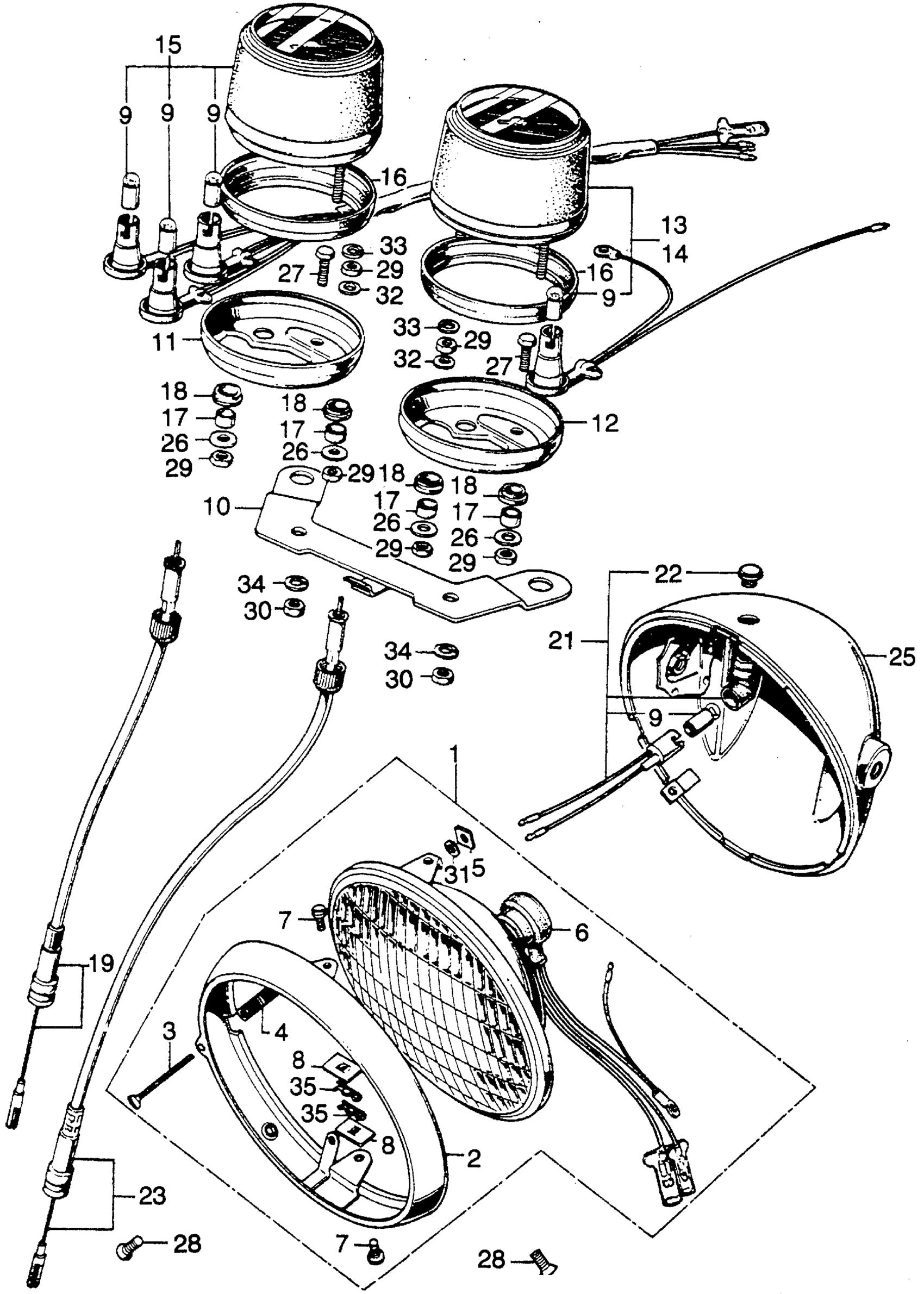

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 SPEEDOMETER + TACHOMETER + HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 35/25W) (NOT AVAILABLE)

33100-307-671

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-307-671

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE)

33103-292-003

$4.66

4

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-307-000

Unavailable

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

5

NUT, HEADLIGHT BEAM ADJ. This part replaces 33117-292-003.

33117-001-023

$2.39

6

HEADLIGHT UNIT (NOT AVAILABLE)

33120-307-671

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER This part replaces 33128-200-030.

33128-292-670

$2.94

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

10

PLATE, METER SET (NOT AVAILABLE)

37211-313-000

Unavailable

11

RING, R. METER SET

37212-307-670

Unavailable

12

RING, L. METER SET

37213-307-670

Unavailable

13

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 2016510 This part replaces 37230-307-671.

37230-334-670

Unavailable

13

SPEEDOMETER ASSY. (NOT AVAILABLE)

37230-334-670

Unavailable

14

SPEEDOMETER ASSY. (KPH) (NOT AVAILABLE)

37230-315-680

Unavailable

15

TACHOMETER ASSY. | Use up to Frame SN 2016510 This part replaces 37240-307-671.

37240-334-670

Unavailable

15

TACHOMETER ASSY.

37240-334-670

Unavailable

15

TACHOMETER ASSY. | Use up to Frame SN 2016510

37240-334-670

Unavailable

16

RUBBER, METER

37242-307-670

Unavailable

17

COLLAR, METER SETTING

37243-307-670

$2.44

18

RUBBER, METER SETTING

37244-307-670

$2.67

19

CABLE ASSY., TACHOMETER

37260-KB7-010

Unavailable

19

CABLE ASSY., TACHOMETER This part replaces 37260-MG1-000.

37260-KB7-010

Unavailable

19

CABLE ASSY., TACHOMETER This part replaces 37260-296-000.

37260-KB7-010

Unavailable

19

CABLE ASSY., TACHOMETER This part replaces 37260-362-000.

37260-KB7-010

Unavailable

19

CABLE ASSY., TACHOMETER This part replaces 37260-438-000.

37260-KB7-010

Unavailable

21

LAMP ASSY., BEAM PILOT (STANLEY) (NOT AVAILABLE)

37550-286-003

Unavailable

22

LENS, BEAM PILOT (NOT AVAILABLE)

37551-044-670

Unavailable

23

CABLE ASSY., SPEEDOMETER

44830-KB7-000

Unavailable

23

CABLE ASSY., SPEEDOMETER This part replaces 44830-313-000.

44830-KB7-000

Unavailable

25

CASE, HEADLIGHT *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

61301-307-670CN

Unavailable

25

CASE, HEADLIGHT (PRIMER) (NOT AVAILABLE)

61301-307-670Z

Unavailable

25

CASE, HEADLIGHT *Y2M* (POPPY YELLOW METALLIC) (NOT AVAILABLE)

61301-307-670FS

Unavailable

25

CASE, HEADLIGHT *R25* (LIGHT RUBY RED) (NOT AVAILABLE)

61301-307-670HX

Unavailable

26

WASHER (6.5X20)

90545-292-000

$1.77

27

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

27

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

28

SCREW, OVAL (5X8)

93700-05008-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

WASHER, PLAIN (4MM)

94101-04000

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, SPRING (6MM)

94111-06000

$1.49

34

WASHER, SPRING (8MM)

94111-08000

$1.49

35

PIN, LOCK (5MM)

94251-05000

$1.49
