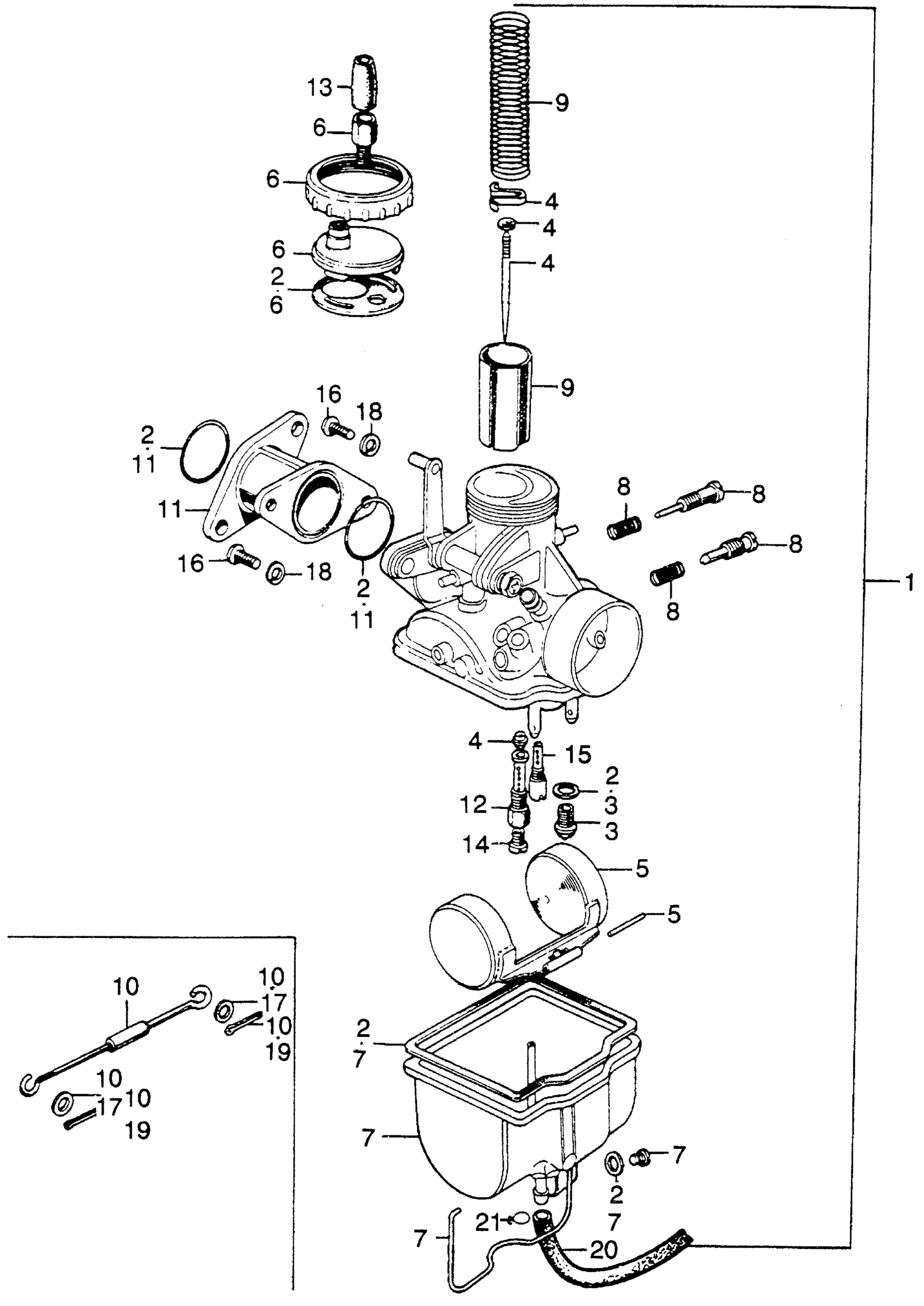

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 RIGHT CARBURETOR Diagram

CARBURETOR ASSY., R. (NOT AVAILABLE)

16100-313-034

Unavailable

GASKET SET This part replaces 16010-304-004.

16010-304-305

$19.82

GASKET SET

16010-304-305

$19.82

VALVE SET, FLOAT This part replaces 16011-240-004.

16011-355-004

$20.89

VALVE SET, FLOAT

16011-355-004

$20.89

NEEDLE SET, JET (NOT AVAILABLE)

16012-313-004

Unavailable

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

FLOAT SET

16013-116-700

$28.61

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

TOP SET

16014-116-700

Unavailable

TOP SET This part replaces 16014-116-704.

16014-116-700

Unavailable

TOP SET This part replaces 16014-306-004.

16014-116-700

Unavailable

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-304-004

Unavailable

SCREW SET A

16016-046-004

Unavailable

VALVE SET A, THROTTLE

16022-304-004

Unavailable

ROD SET A, CHOKE

16025-306-004

Unavailable

ADAPTER SET A, FLANGE (NOT AVAILABLE)

16033-306-004

Unavailable

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-304-004

Unavailable

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

CAP, CABLE SEALING

16118-166-004

$8.08

JET, MAIN (#92)

99114-246-0920

Unavailable

JET, SLOW (#38)

99124-089-0381

Unavailable

JET, SLOW (#38) This part replaces 99124-303-0380.

99124-089-0381

Unavailable

JET, SLOW (#38) This part replaces 99124-304-0380.

99124-089-0381

Unavailable

JET, SLOW (#38) This part replaces 99154-03804.

99124-089-0381

Unavailable

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

SCREW, PAN (6X16)

93500-06016-0A

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

PIN, SPLIT (1.0MM)

94201-10150

$1.49

BULK HOSE, FUEL (3.5X3000) (3.5X390)

95001-35003-60M

$20.85

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

CLIP, TUBE (B7)

95002-02070

$1.80
