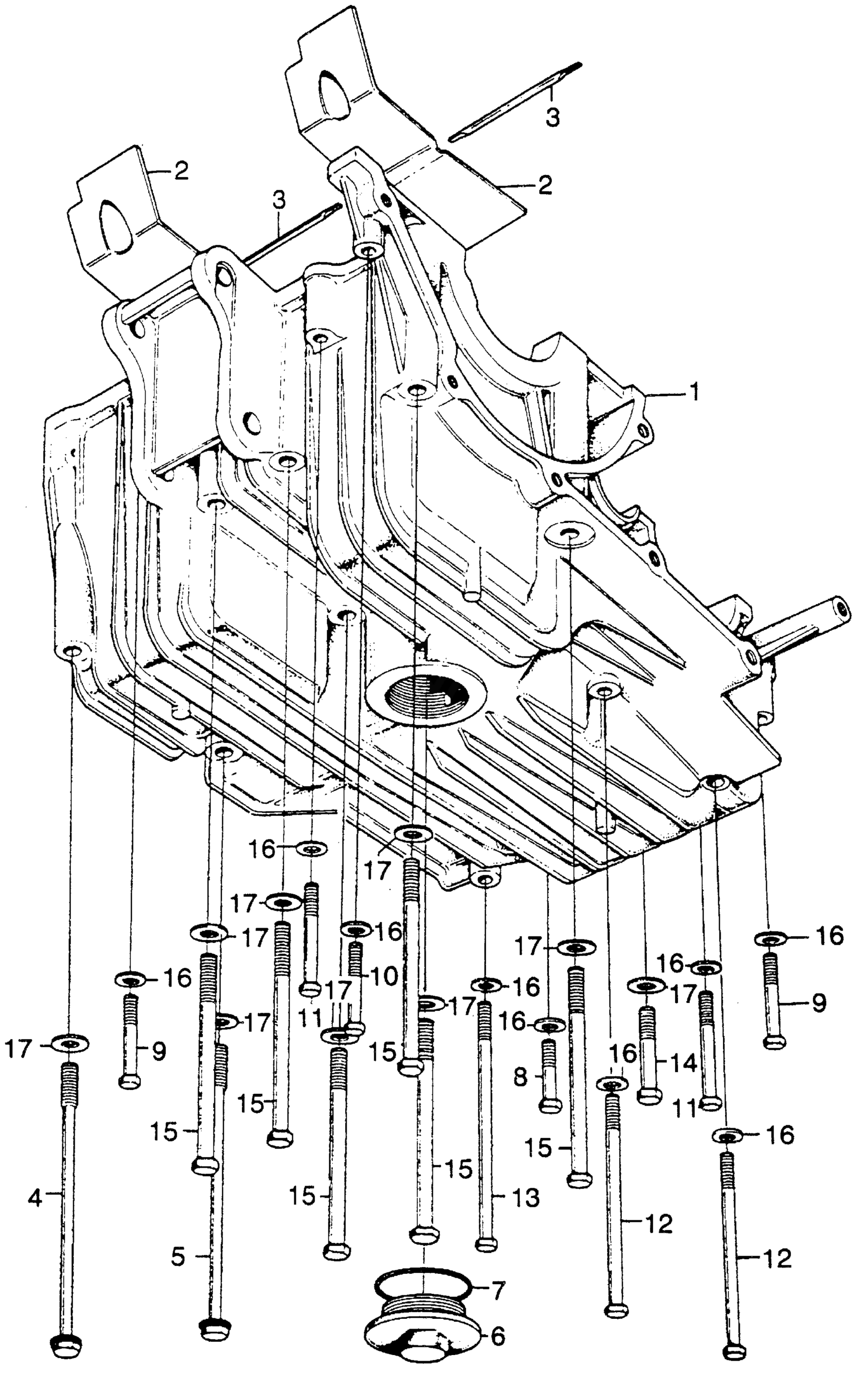

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (LOWER) (NOT AVAILABLE) This part replaces 11200-302-040.

11200-354-000

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-354-000

Unavailable

2

SEPARATOR, OIL (NOT AVAILABLE)

11751-216-000

Unavailable

3

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11781-302-000

Unavailable

4

BOLT, HEX. (8X130)

90002-302-000

Unavailable

5

BOLT, HEX. (8X135) (NOT AVAILABLE)

90003-302-000

Unavailable

6

BOLT, DRAIN VALVE (NOT AVAILABLE) This part replaces 90013-283-000.

90013-312-000

Unavailable

6

BOLT, DRAIN VALVE (NOT AVAILABLE)

90013-312-000

Unavailable

7

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

7

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

7

O-RING (33.5X3.0)

91304-HB3-003

$7.70

8

BOLT, HEX. (6X28) | Use up to Engine SN 2016673 This part replaces 92000-06028.

92101-06028-0A

$1.49

8

BOLT, HEX. (6X28) | Use up to Engine SN 2016673

92101-06028-0A

$1.49

8

BOLT, FLANGE (6X28) | Use from Engine SN 2016674 This part replaces 95700-06028.

95700-06028-00

$1.73

8

BOLT, FLANGE (6X28) | Use from Engine SN 2016674

95700-06028-00

$1.73

8

BOLT, FLANGE (6X28) | Use from Engine SN 2016674

95701-06028-00

$1.73

9

BOLT, HEX. (6X35) | Use up to Engine SN 2016673 This part replaces 92000-06036.

92201-06035-0A

$1.75

9

BOLT, HEX. (6X35) | Use up to Engine SN 2016673 This part replaces 92200-06035.

92201-06035-0A

$1.75

9

BOLT, HEX. (6X35) | Use up to Engine SN 2016673

92201-06035-0A

$1.75

9

BOLT, FLANGE (6X35) | Use from Engine SN 2016674 This part replaces 95700-06035.

95701-06035-00

$1.80

9

BOLT, FLANGE (6X35) | Use from Engine SN 2016674 This part replaces 95700-06035-00.

95701-06035-00

$1.80

9

BOLT, FLANGE (6X35) | Use from Engine SN 2016674

95701-06035-00

$1.80

10

BOLT, HEX. (6X45) | Use up to Engine SN 2016673 This part replaces 92000-06045.

92101-06045-0A

$1.49

10

BOLT, HEX. (6X45) | Use up to Engine SN 2016673 This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

10

BOLT, HEX. (6X45) | Use up to Engine SN 2016673

92101-06045-0A

$1.49

10

BOLT, FLANGE (6X45) | Use from Engine SN 2016674 This part replaces 95700-06045.

95701-06045-07

$2.06

10

BOLT, FLANGE (6X45) | Use from Engine SN 2016674 This part replaces 95700-06045-00.

95701-06045-07

$2.06

10

BOLT, FLANGE (6X45) | Use from Engine SN 2016674 This part replaces 95701-06045-00.

95701-06045-07

$2.06

10

BOLT, FLANGE (6X45) | Use from Engine SN 2016674

95701-06045-07

$2.06

11

BOLT, HEX. (6X56) (NOT AVAILABLE) | Use up to Engine SN 2016673 This part replaces 92000-06056.

92000-06056-0A

Unavailable

11

BOLT, HEX. (6X56) (NOT AVAILABLE) | Use up to Engine SN 2016673

92000-06056-0A

Unavailable

11

BOLT, FLANGE (6X55) | Use from Engine SN 2016674 This part replaces 95700-06055.

95701-06055-00

$2.16

11

BOLT, FLANGE (6X55) | Use from Engine SN 2016674 This part replaces 95700-06055-00.

95701-06055-00

$2.16

11

BOLT, FLANGE (6X55) | Use from Engine SN 2016674

95701-06055-00

$2.16

12

BOLT, HEX. (6X95) (SOURCE: VINTAGE PARTS INC.)

92000-06095

Unavailable

13

BOLT, HEX. (6X112) | Use up to Engine SN 2016673 This part replaces 92000-06112.

92101-06110-0A

$2.92

13

BOLT, HEX. (6X112) | Use up to Engine SN 2016673

92101-06110-0A

$2.92

13

BOLT, FLANGE (6X110) | Use from Engine SN 2016674 This part replaces 95700-06110-00.

95701-06110-00

$3.09

13

BOLT, FLANGE (6X110) | Use from Engine SN 2016674

95701-06110-00

$3.09

14

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

14

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

15

BOLT, HEX. (8X95) This part replaces 92000-08095-0A.

92101-08095-0A

$3.02

15

BOLT, HEX. (8X95)

92101-08095-0A

$3.02

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49
