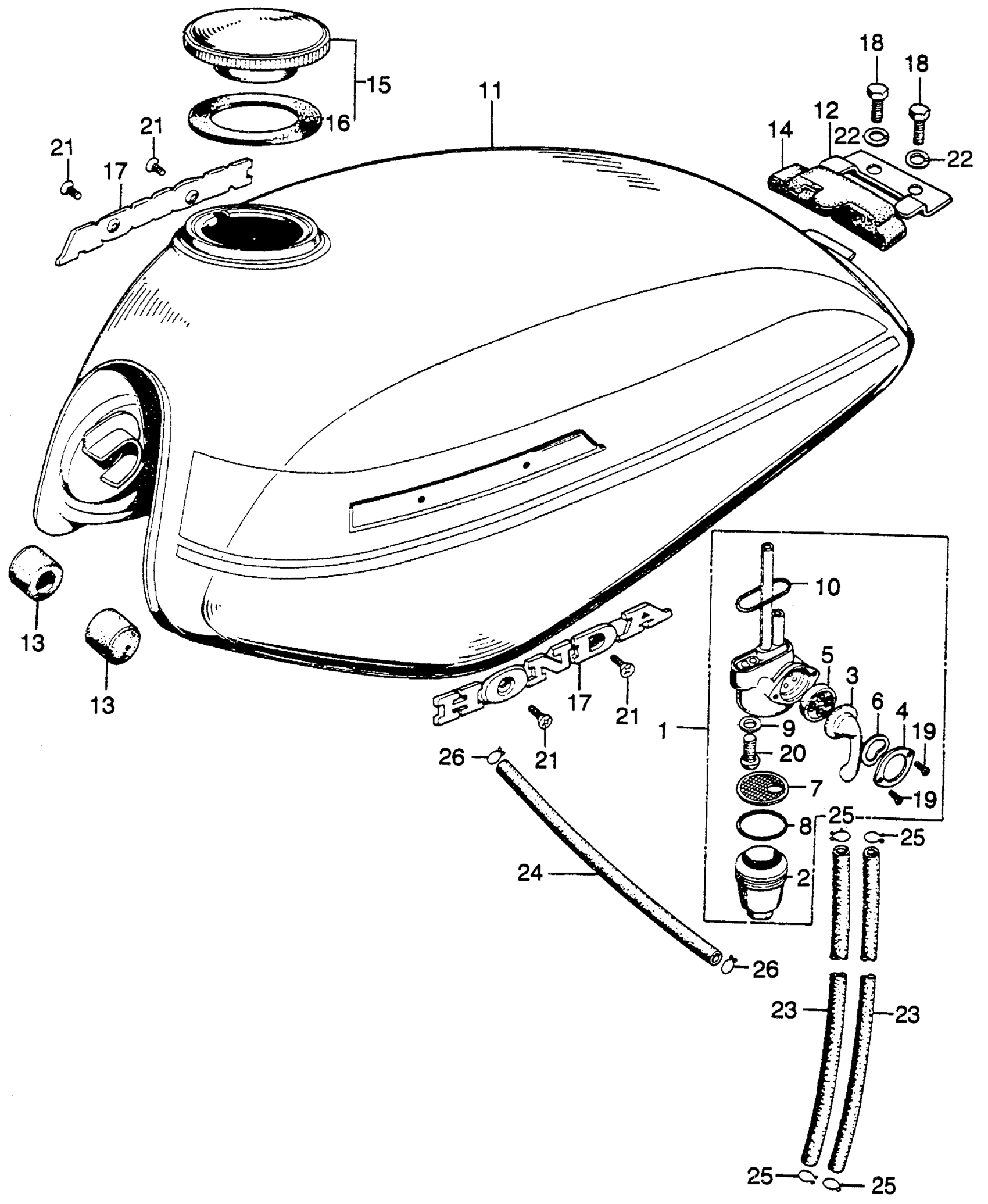

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 FUEL TANK + FUEL VALVE Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-240-000

Unavailable

2

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

LEVER, PETCOCK (NOT AVAILABLE)

16953-240-000

Unavailable

4

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16954-011-010

Unavailable

5

GASKET, VALVE This part replaces 16955-011-010.

16957-ZE1-812

Unavailable

5

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

Unavailable

5

GASKET, VALVE

16957-ZE1-812

Unavailable

6

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.06

6

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.06

6

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.06

7

SCREEN, FUEL STRAINER

16957-028-000

$14.91

8

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$20.32

8

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.47

8

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.47

8

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.47

9

GASKET, PETCOCK BODY

16993-011-000

Unavailable

10

O-RING (23.8X2.4)

16997-273-000

$4.31

11

TANK, FUEL *PB3C/NH0* (CANDY SAPHIRE BLUE AND WHITE) (NOT AVAILABLE)

17500-334-670CU

Unavailable

11

TANK, FUEL *Y2M/NH1* (POPPY YELLOW METALLIC &BLACK) (NOT AVAILABLE)

17500-334-670JH

Unavailable

11

TANK, FUEL *R25/NH0* (LIGHT RUBY RED AND WHITE) (NOT AVAILABLE)

17500-334-670JM

Unavailable

12

STAY, FUEL TANK SETTING

17551-334-670

Unavailable

13

RUBBER, FR. FUEL TANK

17611-303-000

$7.28

14

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-246-000

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

Unavailable

16

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

Unavailable

16

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

Unavailable

16

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

Unavailable

17

EMBLEM B, FUEL TANK *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87123-334-670A

Unavailable

17

EMBLEM B, FUEL TANK *NH1* (BLACK) (NOT AVAILABLE)

87123-334-670B

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.43

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.43

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.43

19

SCREW, PAN (3X5)

93500-03005-0A

$0.82

20

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.13

20

SCREW, PAN (6X16)

93500-06016-0A

$1.13

21

SCREW, OVAL (3X6)

93700-03006-0G

$0.69

22

WASHER, SPRING (6MM)

94111-06000

$0.87

23

BULK HOSE, FUEL (4.5X3000) (4.5X160)

95001-45003-60M

$44.94

24

BULK HOSE, FUEL (4.5X3000) (4.5X180)

95001-45003-60M

$44.94

24

BULK HOSE, FUEL (5.5X3000) (5.5X160)

95001-55003-60M

$56.68

25

CLIP, TUBE (B8)

95002-02080

$1.62

25

CLIP, TUBE (B10)

95002-02100

$1.75
