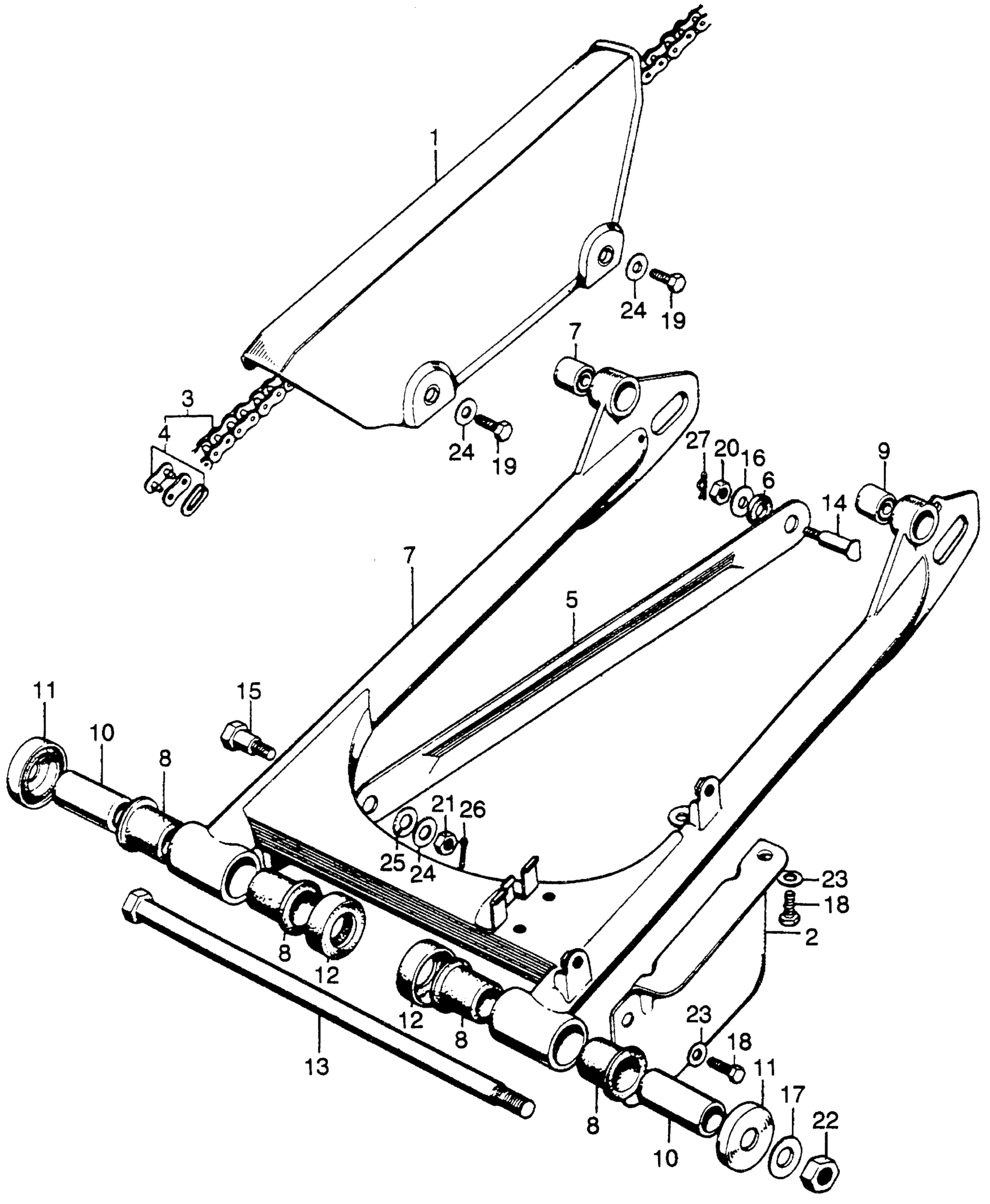

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 CHAIN CASE + SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-313-020B

Unavailable

2

PROTECTOR, CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40511-313-000B

Unavailable

3

CHAIN, DRIVE

40530-306-000

Unavailable

4

MASTER LINK

40531-205-013

Unavailable

4

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

5

ARM, RR. BRAKE STOPPER

43431-313-020

Unavailable

6

RUBBER, STOPPER ARM CUSHION (NOT AVAILABLE)

43434-240-000

Unavailable

7

SWINGARM *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

52100-313-670S

Unavailable

8

BUSHING, SWINGARM PIVOT (NOT AVAILABLE)

52108-240-300

Unavailable

9

BUSH, RR. SWINGARM RUBBER (LOWER) (NOT AVAILABLE)

52109-222-810

Unavailable

10

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52121-354-000

Unavailable

10

COLLAR, RR. SWINGARM (NOT AVAILABLE) This part replaces 52141-240-000.

52121-354-000

Unavailable

11

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

11

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

11

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

12

RUBBER, SWINGARM DUST SEAL CAP This part replaces 52145-268-000.

52145-329-000

$7.36

12

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

13

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-303-010

Unavailable

14

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-240-010

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM

90133-028-010

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM This part replaces 90133-107-000.

90133-028-010

Unavailable

16

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

17

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

17

WASHER (14X26)

90527-634-670

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

19

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (8MM)

94001-08000-0S

$1.49

22

NUT, LOCK (14MM)

90354-268-000

$6.78

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

26

PIN, COTTER (2.0X22)

94201-20220

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

26

PIN, COTTER (2.0X35)

94201-20350

$1.49

26

PIN, COTTER (2.0X22)

94201-29220

$1.49

27

PIN, LOCK (6MM)

94251-06000

$1.49
