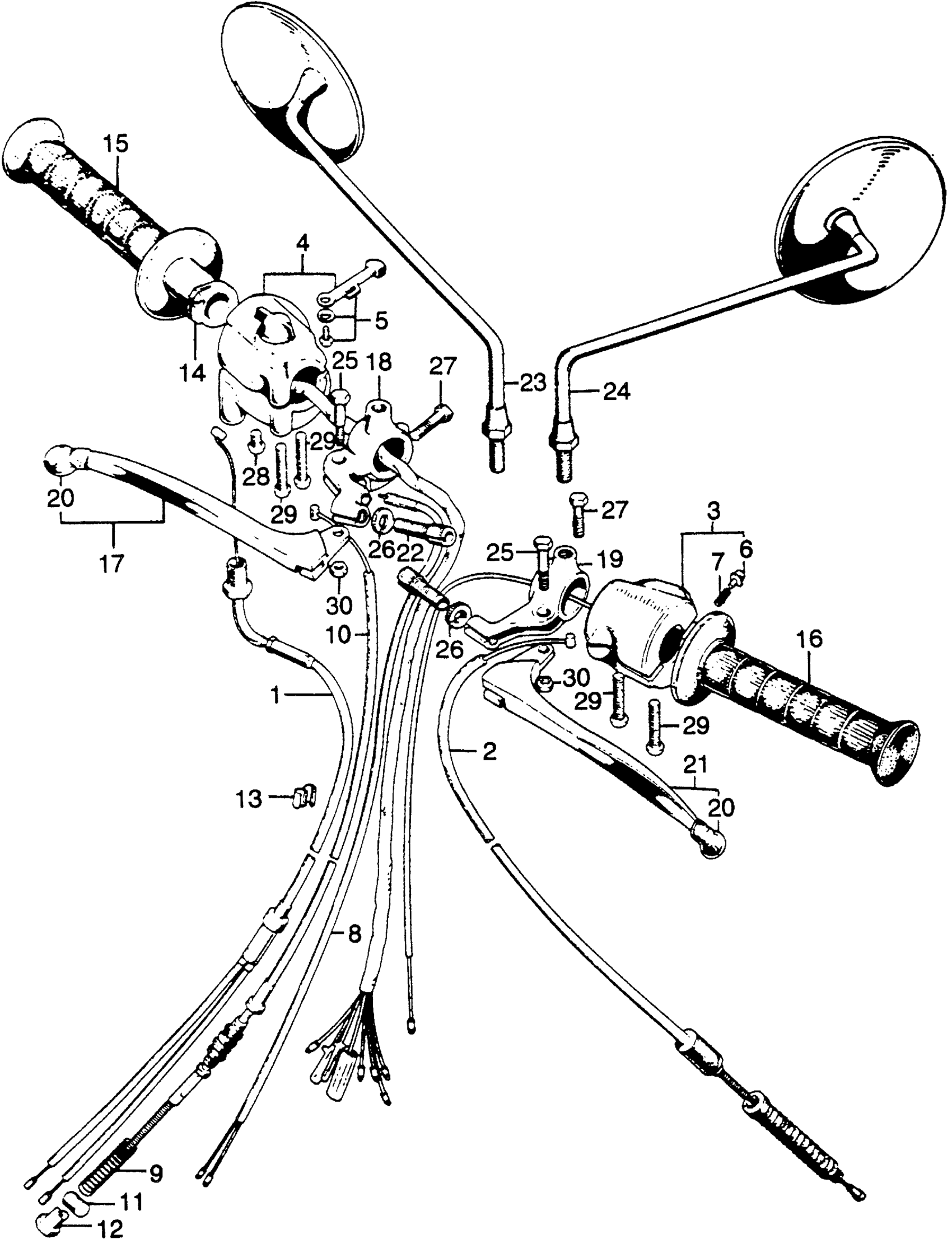

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 CABLE + SWITCH Diagram

#

Description
Price

1

CABLE, THROTTLE This part replaces 17910-313-000.

17910-313-405

Unavailable

1

CABLE, THROTTLE

17910-313-405

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE)

22870-304-000

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE) This part replaces 22870-313-000.

22870-304-000

Unavailable

3

SWITCH ASSY., HORN BUTTON

35250-313-671

Unavailable

4

SWITCH ASSY., LIGHTING STOP

35300-313-671

Unavailable

5

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-235-000

Unavailable

6

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-230-000

Unavailable

7

SPRING, HORN BUTTON SWITCH (NOT AVAILABLE)

35318-230-000

Unavailable

8

SWITCH ASSY., FR. STOP This part replaces 35340-102-003.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

9

SPRING, FR. BRAKE ARM RETURN

45435-250-000

$4.61

10

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-313-000.

45450-313-010

Unavailable

10

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-313-010

Unavailable

11

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

11

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

11

JOINT A, BRAKE ARM

95015-31001

$1.53

12

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

12

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

13

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

14

PIPE A, THROTTLE GRIP | Use up to Frame SN 2015830 This part replaces 53141-240-000.

95014-51100

$17.62

14

PIPE A, THROTTLE GRIP

95014-51100

$17.62

14

PIPE A, THROTTLE GRIP | Use up to Frame SN 2015830

95014-51100

$17.62

15

GRIP, R. HANDLE | Use up to Frame SN 2015830 This part replaces 53165-074-000.

95011-15100

Unavailable

15

GRIP, R. HANDLE

95011-15100

Unavailable

15

GRIP, R. HANDLE | Use up to Frame SN 2015830

95011-15100

Unavailable

16

GRIP, L. HANDLE (NOT AVAILABLE) | Use up to Frame SN 2015830 This part replaces 53166-074-000.

95011-15200

Unavailable

16

GRIP, L. HANDLE (NOT AVAILABLE)

95011-15200

Unavailable

17

LEVER, R. HANDLEBAR This part replaces 53170-074-670.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-286-670.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-286-000.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

17

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

18

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-110-000

Unavailable

19

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-110-000

Unavailable

19

BRACKET, L. HANDLEBAR (NOT AVAILABLE) This part replaces 53172-283-010.

53172-110-000

Unavailable

20

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

20

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

20

CAP A, LEVER

95010-16001

$5.97

21

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

21

LEVER, L. HANDLE

53178-369-700

$28.35

21

LEVER, L. HANDLE This part replaces 53190-074-670.

53178-369-700

$28.35

21

LEVER, L. HANDLE This part replaces 53190-286-670.

53178-369-700

$28.35

21

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

21

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

21

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

21

LEVER, L. HANDLE This part replaces 53190-371-980.

53178-369-700

$28.35

22

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

23

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

23

MIRROR, R.

88110-329-730

Unavailable

24

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-074-000.

88220-329-730

Unavailable

24

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

25

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

25

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

26

NUT, FIXING

90321-315-670

$7.31

26

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

27

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

27

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

28

SCREW, PAN (5X6)

93500-05006-0A

$1.49

29

SCREW, PAN (5X25)

93500-05025-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
