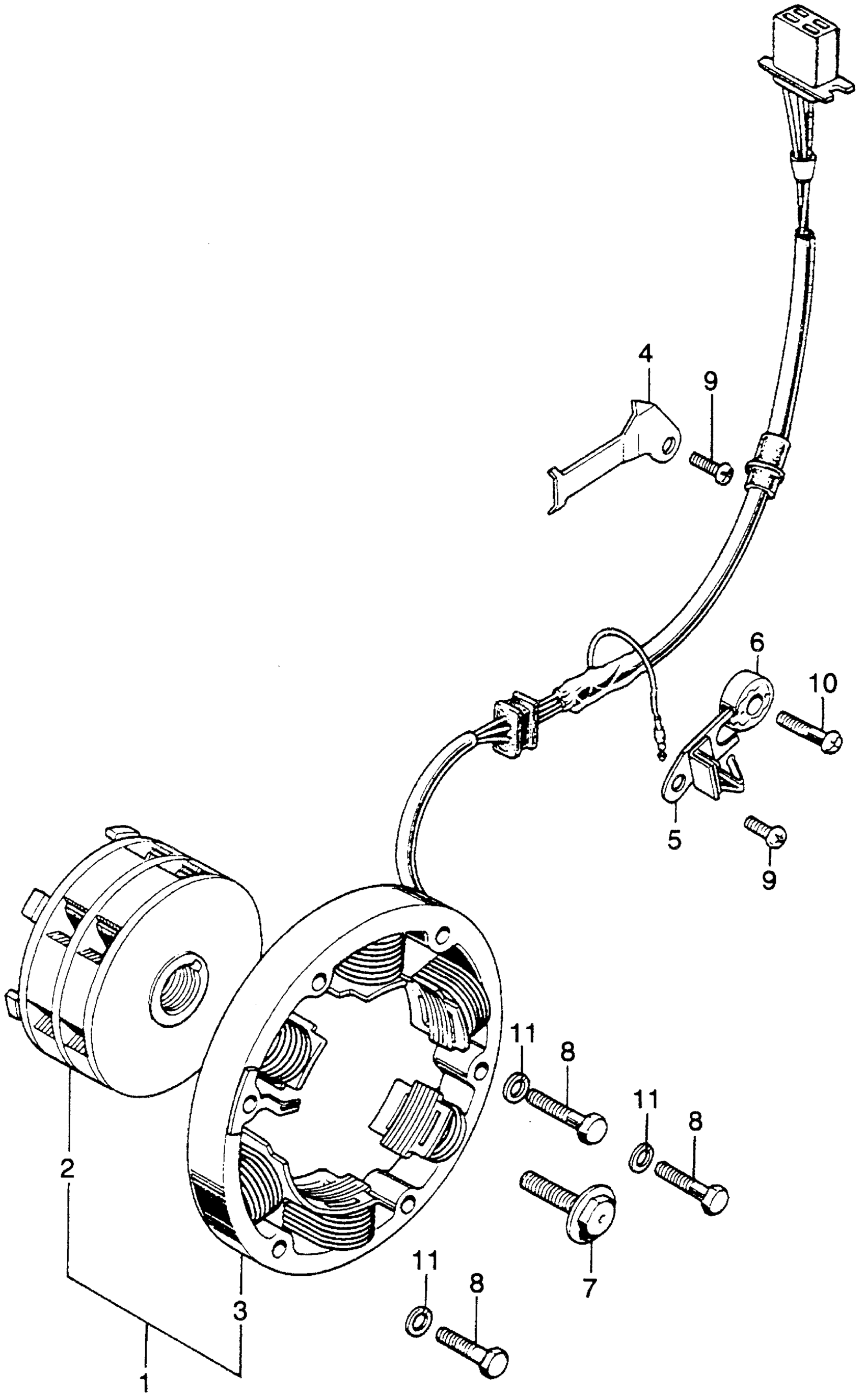

Honda SL175K1A MOTORCYCLE, JPN, VIN# SL175-2000001 ALTERNATOR + NEUTRAL SWITCH Diagram

#

Description

Price

1

ALTERNATOR ASSY. (12V)

31100-307-005

Unavailable

2

ROTOR (NOT AVAILABLE)

31101-307-005

Unavailable

3

STATOR (NA USE ALT:31100-307-690) This part replaces 31102-306-005.

31102-307-690

Unavailable

3

STATOR (N/A: USE 31100-307-405ZB) (NA USE ALT:31100-307-690)

31102-307-690

Unavailable

4

CLIP, ALTERNATOR WIRE (NOT AVAILABLE)

32913-302-000

Unavailable

5

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-216-003

Unavailable

6

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-286-003

Unavailable

7

BOLT, ROTOR SETTING (NOT AVAILABLE)

90014-286-000

Unavailable

8

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

Unavailable

8

BOLT, HEX. (6X28)

92101-06028-0A

Unavailable

9

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.94

10

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

Unavailable

10

SCREW, PAN (6X20)

93500-06020-0A

Unavailable

11

WASHER, SPRING (6MM)

94111-06000

$0.87
