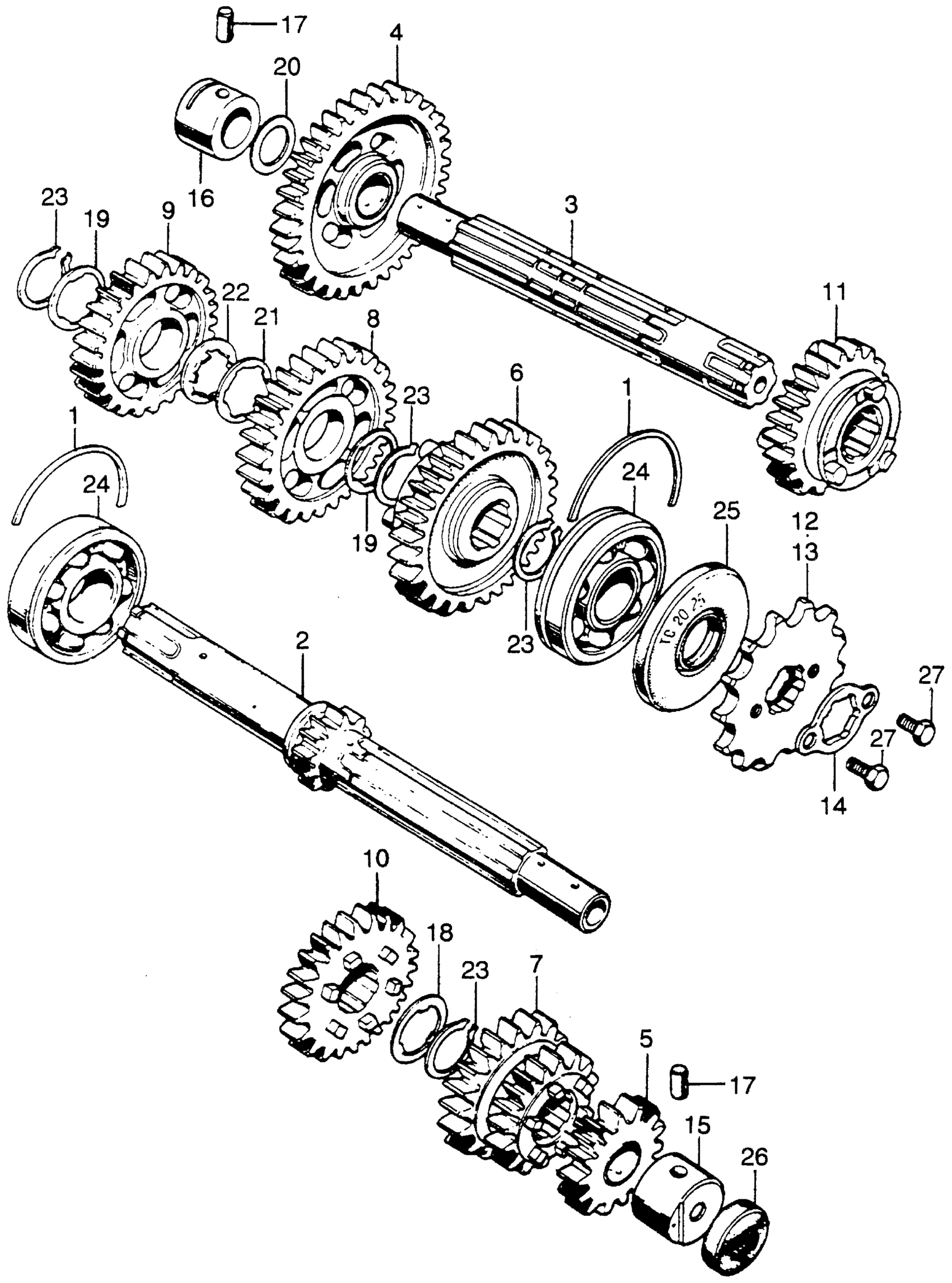

Honda SL175A MOTORCYCLE, JPN, VIN# SL175-1000001 TRANSMISSION Diagram

#

Description
Price

1

RING A, BALL BEARING SET (NOT AVAILABLE)

13495-200-010

Unavailable

2

MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)

23211-235-010

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-235-030

Unavailable

4

GEAR, COUNTERSHAFT FIRST (36T) This part replaces 23420-235-010.

23420-362-000

Unavailable

4

GEAR, COUNTERSHAFT FIRST (36T)

23420-362-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23430-235-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (36T) This part replaces 23441-235-000.

23441-362-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (36T)

23441-362-000

Unavailable

7

GEAR, MAINSHAFT SHIFTING (20T 30T) (NOT AVAILABLE)

23451-235-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE) This part replaces 23461-235-010.

23461-354-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)

23461-354-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (27T) (NOT AVAILABLE) This part replaces 23471-235-010.

23471-354-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (27T) (NOT AVAILABLE)

23471-354-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)

23481-235-000

Unavailable

11

GEAR, FIFTH COUNTERSHAFT (NOT AVAILABLE)

23491-235-020

Unavailable

12

SPROCKET, DRIVE (16T) (NOT AVAILABLE) This part replaces 23801-216-010.

23801-313-000

Unavailable

12

SPROCKET, DRIVE (16T) (NOT AVAILABLE)

23801-313-000

Unavailable

13

SPROCKET, DRIVE (15T) | (Optional).

23801-230-000

Unavailable

14

PLATE B, FIXING This part replaces 23811-028-000.

95014-92100

$1.49

14

PLATE B, FIXING This part replaces 23811-230-000.

95014-92100

$1.49

14

PLATE B, FIXING

95014-92100

$1.49

15

BUSH A, BEARING (15MM) (NOT AVAILABLE)

23931-235-000

Unavailable

16

BUSH B, BEARING (16MM) (NOT AVAILABLE)

23932-235-010

Unavailable

17

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

18

WASHER A, THRUST (20MM) (NOT AVAILABLE)

90451-230-000

Unavailable

19

WASHER A, THRUST (20MM) (NOT AVAILABLE)

90451-246-000

Unavailable

20

WASHER, THRUST (16MM)

90453-235-000

$1.83

21

WASHER B, THRUST (20MM) (NOT AVAILABLE)

90461-235-000

Unavailable

22

WASHER, LOCK (20MM) (NOT AVAILABLE)

90462-235-000

Unavailable

23

SET-RING (20MM)

90605-200-000

$2.92

24

BEARING, BALL (6304HS)

91003-235-000

Unavailable

25

OIL SEAL (20X52X9) (NOT AVAILABLE) This part replaces 91201-216-000.

91201-216-005

Unavailable

25

OIL SEAL (20X52X9) (NOT AVAILABLE)

91201-216-005

Unavailable

26

OIL SEAL (8X25X8) (ARAI) This part replaces 91206-200-000.

91204-MB0-013

$4.06

26

OIL SEAL (8X25X8) (ARAI) This part replaces 91206-216-000.

91204-MB0-013

$4.06

26

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

26

OIL SEAL (8X25X8) (ARAI) This part replaces 91206-200-005.

91204-MB0-013

$4.06

27

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

27

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
