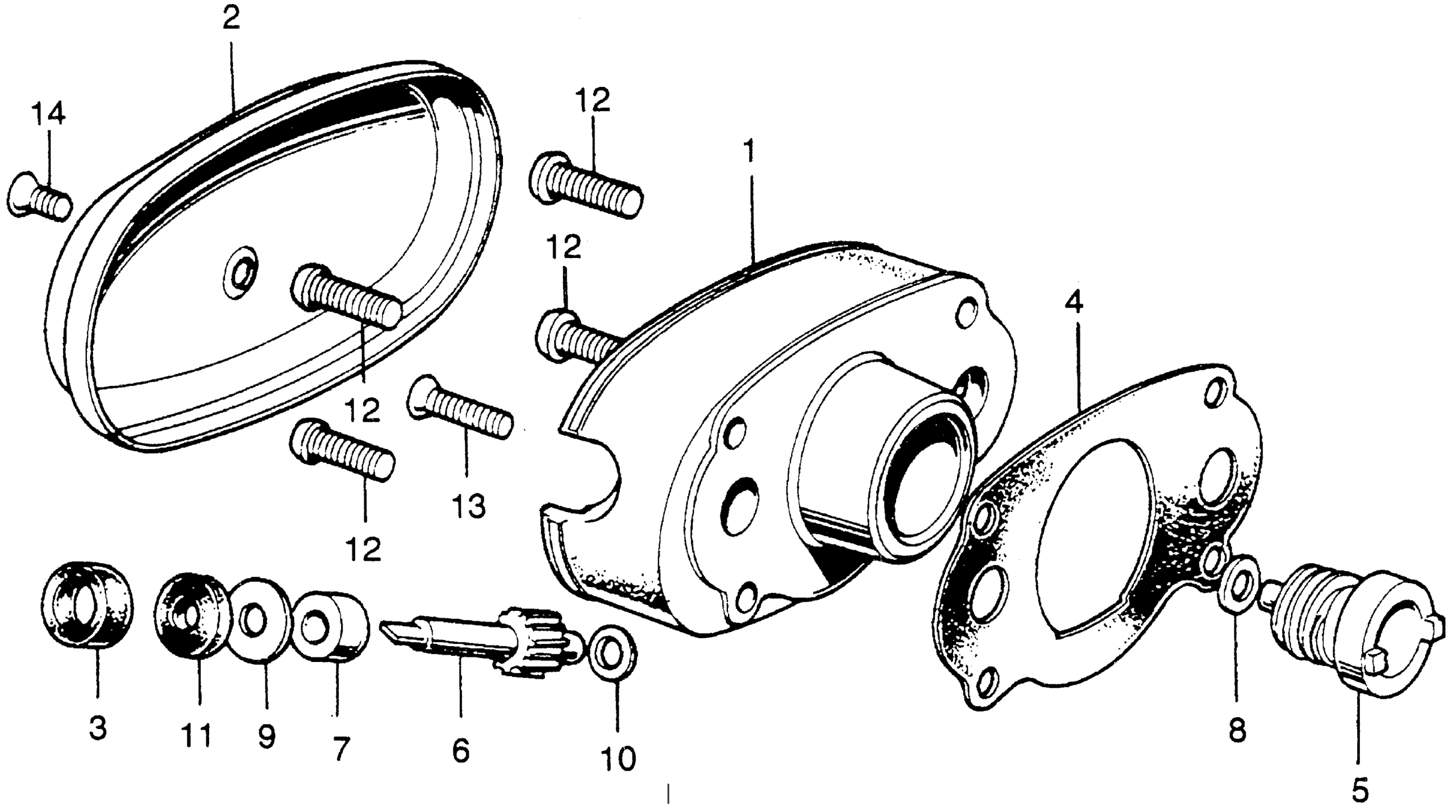

Honda SL175A MOTORCYCLE, JPN, VIN# SL175-1000001 RIGHT CYLINDER HEAD + CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, R. CYLINDER HEAD

12331-306-020

Unavailable

2

COVER, TACHOMETER

12332-306-010

Unavailable

3

GROMMET, TACHOMETER CABLE (NOT AVAILABLE)

12339-306-000

Unavailable

4

GASKET, R. CYLINDER HEAD COVER This part replaces 12394-216-000.

12394-216-306

Unavailable

4

GASKET, R. CYLINDER HEAD COVER

12394-216-306

Unavailable

5

GEAR, TACHOMETER PINION (NOT AVAILABLE) This part replaces 12421-306-010.

12421-338-000

Unavailable

5

GEAR, TACHOMETER PINION (NOT AVAILABLE)

12421-338-000

Unavailable

6

GEAR, TACHOMETER

12431-246-000

Unavailable

7

COLLAR, TACHOMETER GEAR THRUST (NOT AVAILABLE)

12435-246-000

Unavailable

8

WASHER (6.3X12X1) (NOT AVAILABLE)

90401-819-000

Unavailable

9

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

10

WASHER, SPEEDOMETER PINION

90539-011-000

Unavailable

11

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

11

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

12

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

12

SCREW, PAN (6X20)

93500-06020-0A

$1.49

13

SCREW, FLAT (5X22) (NOT AVAILABLE)

93600-05022-0A

Unavailable

14

SCREW, OVAL (5X10) (NOT AVAILABLE)

93700-05010-0A

Unavailable
