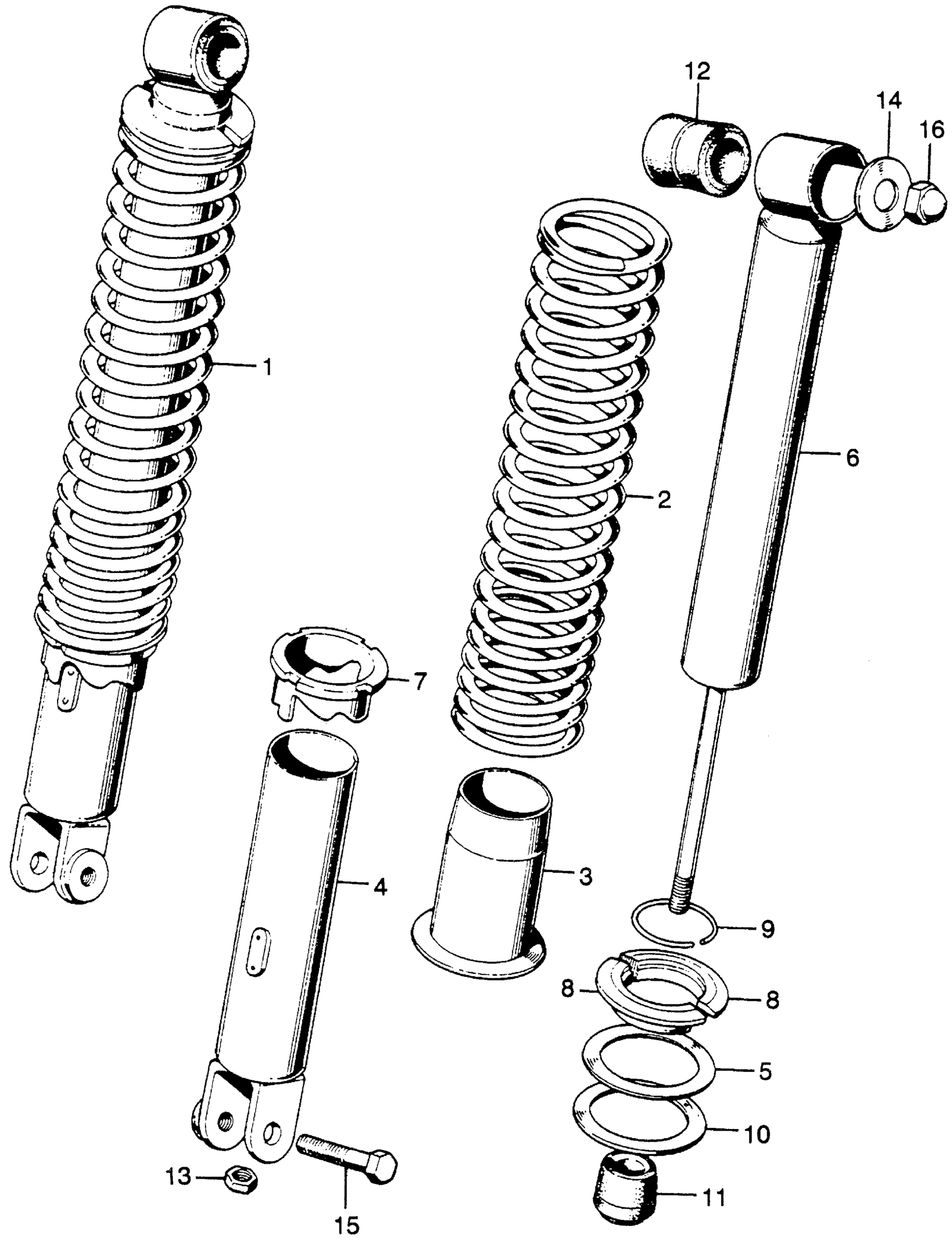

Honda SL175A MOTORCYCLE, JPN, VIN# SL175-1000001 REAR SHOCK ABSORBER K Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-313-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-313-000

Unavailable

3

GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52405-074-003

Unavailable

4

SEAT, SPRING (LOWER)

52406-313-003

Unavailable

5

WASHER, SPRING (NOT AVAILABLE)

52409-313-000

Unavailable

6

DAMPER, RR. (NOT AVAILABLE)

52410-313-003

Unavailable

7

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52422-292-000

Unavailable

8

STOPPER, SHOCK ABSORBER SPRING SEAT (NOT AVAILABLE)

52424-074-003

Unavailable

9

STOPPER (NOT AVAILABLE)

52446-074-003

Unavailable

10

SEAT, RR. SHOCK ABSORBER SPRING (UPPER) (SHOWA) (NOT AVAILABLE)

52459-074-003

Unavailable

11

RUBBER, RR. SHOCK ABSORBER STOPPER

52483-310-000

Unavailable

12

RUBBER, JOINT (NOT AVAILABLE)

52485-303-000

Unavailable

13

NUT, LOCK (NOT AVAILABLE)

90308-292-000

Unavailable

14

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

15

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

15

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

16

NUT, CAP (10MM)

94021-10020-0S

$2.08
