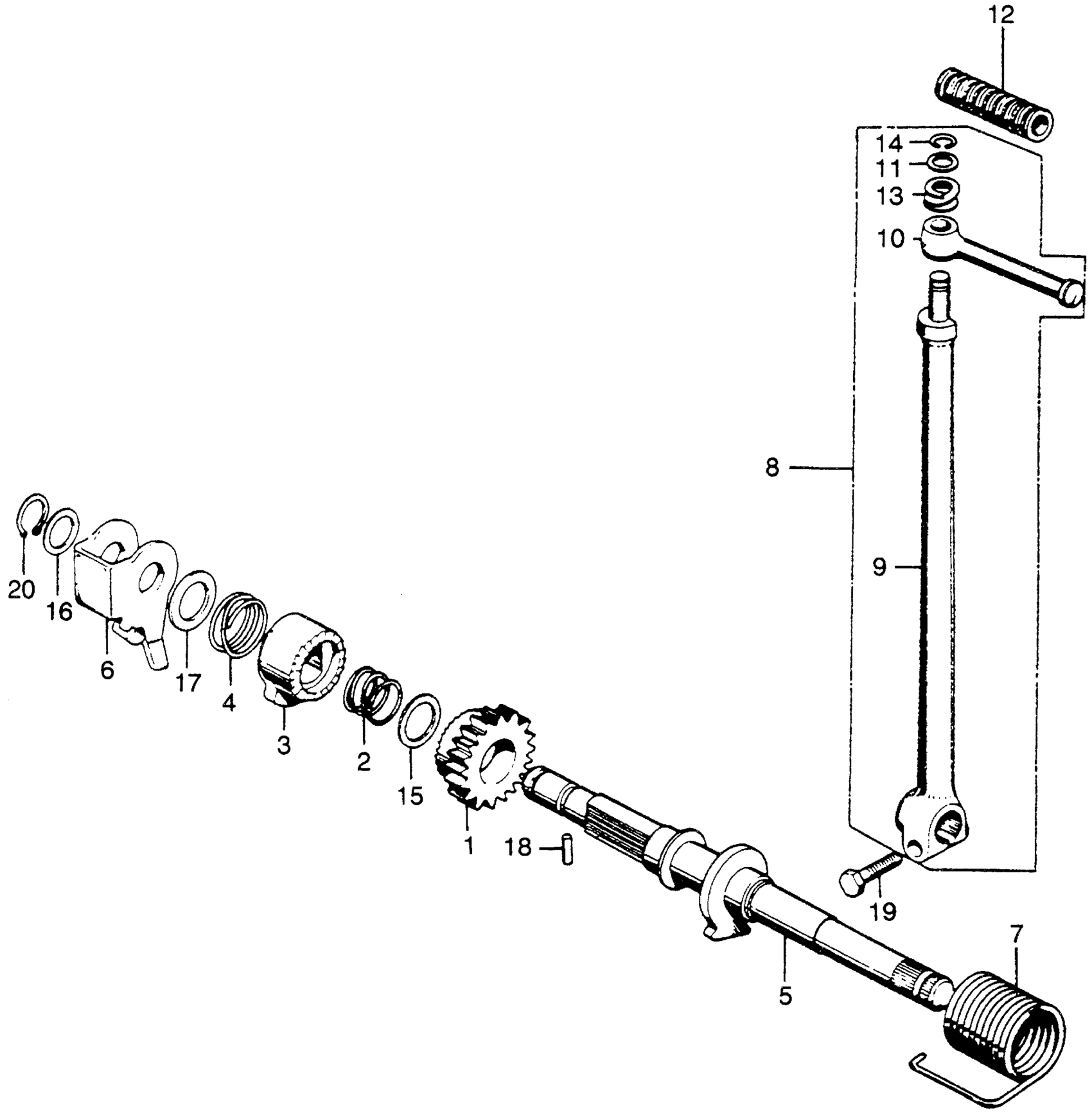

Honda SL175A MOTORCYCLE, JPN, VIN# SL175-1000001 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER

28211-314-000

Unavailable

2

SPRING, STARTER PINION SETTING (NOT AVAILABLE)

28215-216-000

Unavailable

3

RATCHET, KICK STARTER

28221-314-000

Unavailable

4

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-314-000

Unavailable

5

SPINDLE, KICK STARTER

28250-314-000

Unavailable

6

PLATE, RATCHET GUIDE (NOT AVAILABLE)

28258-314-000

Unavailable

7

SPRING, KICK STARTER (NOT AVAILABLE)

28261-235-000

Unavailable

8

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-313-010

Unavailable

9

ARM, KICK STARTER (NOT AVAILABLE)

28301-313-010

Unavailable

10

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

10

PEDAL, KICK STARTER This part replaces 28302-011-000.

28302-126-770

Unavailable

10

PEDAL, KICK STARTER This part replaces 28302-056-000.

28302-126-770

Unavailable

10

PEDAL, KICK STARTER This part replaces 28302-074-000.

28302-126-770

Unavailable

10

PEDAL, KICK STARTER

28302-126-770

Unavailable

10

PEDAL, KICK STARTER This part replaces 28302-303-000.

28302-126-770

Unavailable

10

PEDAL, KICK STARTER This part replaces 28302-313-000.

28302-126-770

Unavailable

11

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

12

RUBBER A, KICK STARTER This part replaces 28311-001-000.

95011-51000

$3.69

12

RUBBER A, KICK STARTER

95011-51000

$3.69

13

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

14

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

15

WASHER, THRUST (20MM) (NOT AVAILABLE)

90451-216-000

Unavailable

16

WASHER, THRUST (15X1) This part replaces 90454-200-000.

90457-HB3-000

$2.89

16

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

17

WASHER, THRUST (20MM)

90454-751-000

$5.26

17

WASHER, THRUST (20MM) This part replaces 90469-081-010.

90454-751-000

$5.26

18

PIN, KNOCK (4X15) (NOT AVAILABLE)

90701-216-000

Unavailable

19

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

19

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

20

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49
